    130142H-2 Air Spring Bellows Air Bag Suspension Max Dia 150mm

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 130142H-2
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

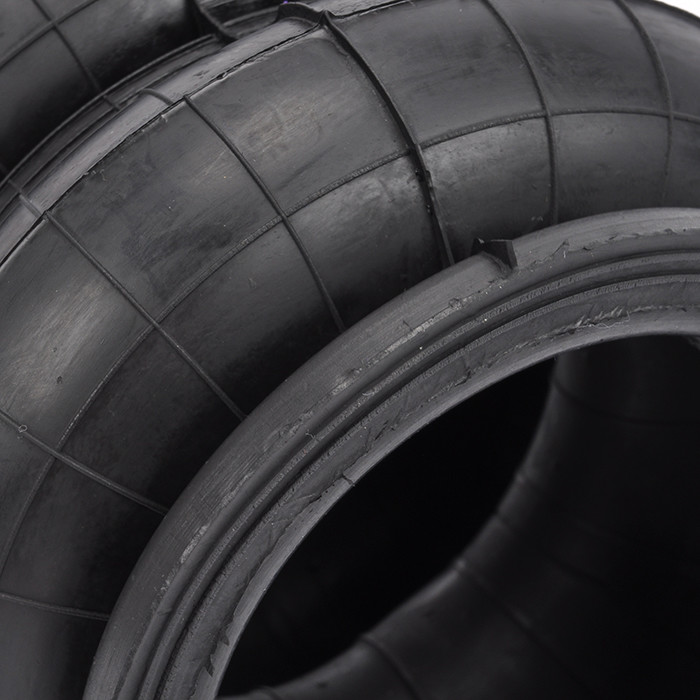

    130142H-2 Air Spring Bellows Air Bag Suspension Max Dia 150mm

    130142H-2 Air Spring Bellows 150mm MAX Dia. Double Rubber Stroker 90mm


    130142H-2 Technical parameters


    AIRSUSTECH Model numberNominal diameter

    0.7Mpa

    MAX IDA

    Bearing capacity at design height
    0.2Mpa0.5Mpa0.7Mpa
    130142H-28015080219314

    0.7Mpa

    Natural frequency

    Range of travelDelivery status
    Minimum compression heightSafety elongation height
    3.12721624.4


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : /
    Top Cover Plate Screw (Nut) :/
    Bottom Cover Plate Screw (Nut) Tooth :/
    Screw Center Distance of Bottom Cover Plate : /

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : /

    Cover Plate
    Top Cover Plate Diameter: /
    Bottom Cover Plate Diameter: /

    Rubber Bellows
    Rubber Bellows MAX Diameter: 150 mm
    Rubber Bellows Natural Diameter :150 mm
    The Working Stroke : MAX 162 mm to MIN 72mm
    Maximum Height : 162 mm
    Minimum Height :72mm
    Stroke Height : 90 mm

    Bumper block / Buffer block
    With Bumper Block Or Without Bumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :One Pieces of Girdle Hoop



    Other kinds of AIRSUSTECH H-2 air spring:


    AIRSUSTECH Model numberBearing capacityDesign itineraryMinimum compressionSafe elongationFull trip
    350255H-2409820590295205
    330254H-2316620288290202
    330214H-2398715888246158
    310214H-2299215788245157
    300170H-2304511085195110
    290265H-2180021390303213
    280214H-2248015888246158
    252163H-2164415880238158
    250180H-219041228420684
    235152H-21667987617498
    230214H-2145715888246158
    200142H-21195847816284
    168132H-2832797215179
    160166H-259310882190108
    130142H-2314907216290
