S-350-3 Rubber Spring Suspension Triple Convoluted Air Bag 410mm Max Dia

Ask Lasest Price
Supply Ability :	1000pcs/week
Payment Terms :	T/T, Western Union,Paypal or Others
Brand Name :	AIRSUSTECH
Certification :	ISO/TS16949:2009
Delivery Time :	3-8 Working Days
Model Number :	F-350-3

Add to Cart

Product Details
Company Profile

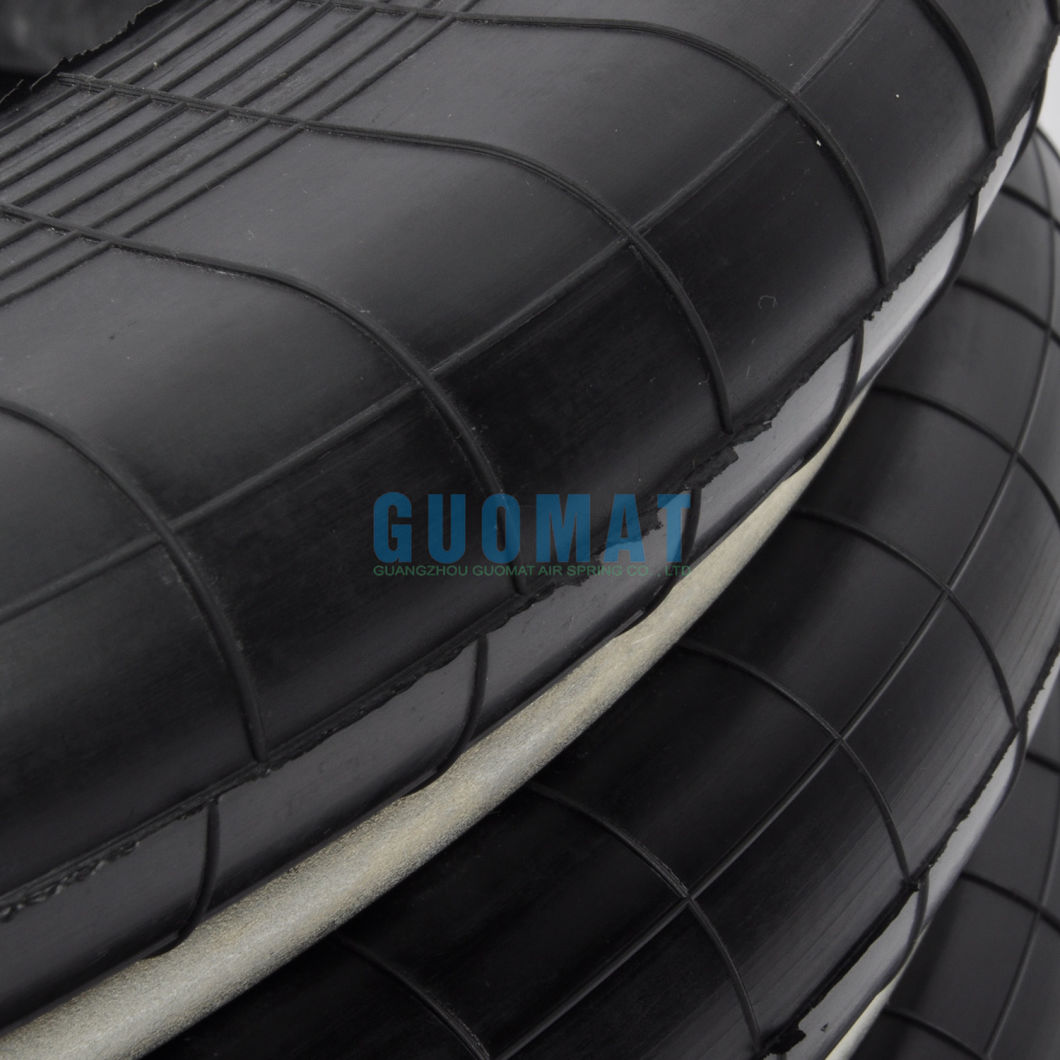

S-350-3 Rubber Spring Suspension Triple Convoluted Air Bag 410mm Max Dia

S-350-3 Yokohama Air Spring Cushion Ref. to AIRSUSTECH F-350-3 Three Convoluted Rubber Bellows

AIRSUSTECH F-350-3 Cross other OE:

AIRSUSTECH Part No.: F-350-3

Yokohama Part No.: S-350-3

Yokohama Part No.: S350-3

Yokohama Part No.: S-350-3R

Yokohama Part No.: S350-3R

Weight and packing of S-350-3 R:

Net Weight:7.0 KG

Gross Weight:8.0 KG

Package Size:400mm*400mm*16mm

Quick details of AIRSUSTECH F-350-3:

Compressed height:100mm

Maximum Height:215mm

Full stroke:115mm

Working medium:water, air

Working pressure:< 0.7Mpa

Burst pressure:> 1.6Mpa

Endurance cycle:> 10"

Temperature:-35℃ ~+60℃

Technical performance parameter list of S-350-3 R air spring:

	Installation height								0.7MPa Volume(dm³)
Bearing load Power (kg)	Inflation pressure	0.2MPa	0.3MPa	0.4MPa	0.5MPa	0.6MPa	0.7MPa	0.8MPa	0.7MPa Volume(dm³)
	110(mm)	2250	3331	4443	5524	6636	7747	8857	8.93
	128(mm)	2154	3216	4289	5349	6441	7542	8606	10.87
	146(mm)	2069	3103	4145	5187	6235	7297	8349	12.89
	164(mm)	1995	2992	4017	5040	6038	7064	8092	14.86
	180(mm)	1883	2862	3835	4821	5810	6801	7780	16.52
	210(mm)	1702	2576	3490	4417	5357	6280	7177	19.55
	235(mm)	1590	2462	3362	4263	5164	5974	6965	21.47
Stiffness and frequency at design height	Vertical stiffness(Kg/cm)	466	539	646	722	855	978	1091
Stiffness and frequency at design height	Natural frequency Hz	2.49	2.17	2.05	1.94	1.92	1.90	1.87
Stiffness and frequency at design height	Natural frequency cpm	149	130	123	116	115	114	112

S-350-3 items Detailed Parameter Table:

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)

F-350-3	S-350-3	160	250	85	±65	410

GUOMAT NO.	Reference No.	Standard Height,Internal Pressure 0.49 M pa When The General Value					Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
GUOMAT NO.	Reference No.	Effective Area (Cm2)	Volume(L)	Load (K n)	Dynamic Spring Parameters (N/Min)	Vibration Frequency (Hz)	Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)

F-350-3	S-350-3	960	15	47.1	647	1.8	0.88	3.9-4.9

The order of compression permanent deformation of various raw rubber:

In general, the elastic rubber with high elasticity and high strength is self-reinforcing, and its deformation is easy to recover, and the compression set is small; while the structure has many side chains, many branches, and many genes, The resistance is large, it is not easy to recover after deformation, and the residual deformation is large. For example, BR, NR, CR, FKM have smaller compression set, while TR, IIR, and SBR have larger compression set. Because SBR has the largest hysteresis loss, its compression set is large.
Followed by the rate of gelatin. If the rubber content is high (60% or more) and the filler is small, the voids in the spatial network structure of the crosslinked bonds of the vulcanized rubber after vulcanization are large, and are easily collapsed after being stressed, and the compression permanent deformation is large. The rubber content is low (30% or less), the filler is many, and the void of the space network structure of the vulcanized rubber after vulcanization is small. After being stressed, the stiffness is large and it is not easy to be deformed, so the compression deformation is small. If the rubber content is medium, the compression set is centered, between the two.

The following are the hardness, degree of vulcanization, type of crosslinks, carbon black, shape of filler particles, and the like.
Rubber hardness:
The hardness of the compound depends on the amount of vulcanizing agent, reinforcing agent and filler. Generally speaking, if the amount is high, the hardness of the vulcanized rubber is high, the compression set is small, and the product is suitable for the high hardness product; while the amount of the vulcanized rubber is low, the compression set is large, and the compression set is large, suitable for For low hardness products. It should be noted that a rubber product having a high hardness has a small shrinkage ratio and a rubber product having a low hardness, and has a large shrinkage ratio. The high-hardness rubber products above 85° have an increase in shrinkage. Therefore, it should be considered when designing the formula.
When the amount of reinforcing agent or filler (hardening) is medium (moderate), the compression set is centered.

GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S600-1	F-240-4	S-240-4R	S240-4
F-600-2	S-600-2R	S600-2	F-240-3	S-240-3R	S240-3
F-600-3	S-600-3R	S600-3	F-240-2	S-240-2R	S240-2
F-600-4	S-600-4R	S600-4	F-240-1	S-240-1R	S240-1
F-600-5	S-600-5R	S600-5	F-220-4	S-220-4R	S220-4
F-550-2	S-550-2R	S550-2	F-220-3	S-220-3R	S220-3
F-550-3	S-550-3R	S550-3	F-220-2	S-220-2R	S220-2
F-500-2	S-500-2R	S500-2	F-200-2	S-200-2R	S200-2
F-500-3	S-500-3R	S500-3	F-200-3	S-200-3R	S200-3
F-500-4	S-500-4R	S500-4	F-200-4	S-200-4R	S200-4
F-500-5	S-500-5R	S500-5	F-160-1	S-160-1R	S160-1
F-450-1	S-450-1R	S450-1	F-160-2	S-160-2R	S160-2
F-450-2	S-450-2R	S450-2	F-160-3	S-160-3R	S160-3
F-450-3	S-450-3R	S450-3	F-160-4	S-160-4R	S160-4
F-450-4	S-450-4R	S450-4	F-120-4	S-120-4R	S120-4
F-450-5	S-450-5R	S450-5	F-120-3	S-120-3R	S120-3
F-400-2	S-400-2R	S400-2	F-120-2	S-120-2R	S120-2
F-400-3	S-400-3R	S400-3	F-100-4	S-100-4R	S100-4
F-400-4	S-400-4R	S400-4	F-90-3	S-90-3R	S90-3
F-400-5	S-400-5R	S400-5	F-90-2	S-90-2R	S90-2
F-350-1	S-350-1R	S350-1	F-90-1	S-90-1R	S90-1
F-350-2	S-350-2R	S350-2	F-300-1	S-300-1R	S300-1
F-350-3	S-350-3R	S350-3	F-300-2	S-300-2R	S300-2
F-350-4	S-350-4R	S350-4	F-300-3	S-300-3R	S300-3
			F-300-4	S-300-4R	S300-4

S-350-3 Yokohama Rubber Air Spring Cushion Ref. to Guomat F-350-3 Three Convoluted Rubber Bellows
