    86600 Bellow Air Bag 245mm Air Spring Assembly Norgren

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B10x2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    86600 Bellow Air Bag 245mm Air Spring Assembly Norgren

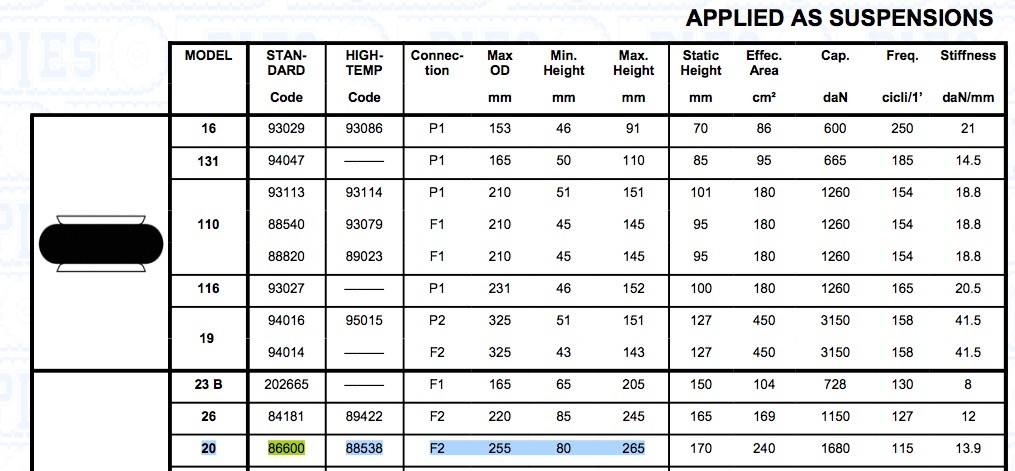

    Air Spring MODEL 20 Standard Code 86600 Max Height 245 MM

    AIRSUSTECH NO .: 2B10x2 refer to 90587

    AIRSUSTECH 2B10x2

    AIRSUSTECH rubber bellows 10x2

    Model:20
    Type: F2

    High Temp. code 88538

    2,Pneumatic Actuator, Model:20, Type: F2, High Temp. code -88538, PCD: 160.3mm, Max OD-255mm, Max. Height-265mm, Min. Height-80mm, Stiffness: 18.4 daN/mm Connection: Bead Ring Flange connection, Make:
    FIRESTONE 2. W01 095 0381.
    B 271. DUNLOP FR model. Q9 bolt/... T20 86600.

    AIRSUSTECH 2B10x2 OEM Cross reference:


    AIRSUSTECH 2B10x2

    Air Spring MODEL 20

    Air SpringStandard Code 86600

    Norgren: M / 31102 /

    Norgren:M 31102 /

    Norgren:M31102
    CONTITECH FD 210-22 1/2 M10
    DUNLOP FR SP 1538 (10x2)
    NORGREN M/31102 (10x2)
    WEFORMA WBZ-G 450
    GRANNING 15807
    SAMRO H 250-0021


    Double capsule air spring 2B270- 225 D185

    Can replace the following air bags (bladder cylinder, gas spring)

    ContiTech : FD 210-22 1/2 M10

    ContiTech : FD 210-22 DS G1 / 2

    ContiTech : FD 210-22 DS G1 / 2 M10

    ContiTech : FD 210-22 DS G1 / 2 CR

    ContiTech : FD 210-22 DS CR G1 / 2

    ContiTech : FD 210-22 DS / FD210-22DS / FD21022DS

    ContiTech leather bags: FD 210-22 / FD210-22 / FD21022

    Firestone: W01-R58--4058 / W01 R58 4058 / W01R584058

    Firestone style: 10 ”x2 / 10” x2 / 10x2

    Goodyear: 2B10-2350 / 2B10 2350 / 2B102350

    Goodyear sac number: 578-92-3-2350 / 578 92 3 2350/5789232350

    Springride: 2B10-2350 / 2B10 2350 / 2B102350

    Springride bladder number: 578-92-3-2350 / 578 92 3 2350/5789232350

    Dunlop France: SP1538

    Dunlop UK (Pneuride): PNP 30545 01 12 / PNP305450112


    Nominal diameter (inch) x number of turns: 10 "x2 / 10" x2 / 10x2.

    WEFORMA: WBZ-G 450 / WBZ-G450 / WBZG450

    Altay: 140586

    Altai Co. No .: A2 250 / K01 / A2250 / K01 / A2250K01

    Pared (new): 2B10-2350 / 2B10 2350 / 2B102350

    Pared new skin bag number: 578-92-3-2350/578 92 3 2350/5789232350

    Gu'an Zhen (gas spring): YS- -252- -2V / YS 252 2V / YS2522V


    Specifications and Detail Technical Parameters:AIRSUSTECH 2B10x2


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 4pcs X M10


    Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G1/2


    Cover Plate

    Top Cover Plate Diameter (Width): 210 mm


    Bottom Cover Plate Diameter (Width): 210 mm


    Material top and bottom plate:Steel


    Rubber Bellows


    Stroke of Rubber Bellows:70mm-240m


    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Rubber material Standard up to 70°C natural rubber


    AIRSUSTECH 2B10x2 air spring is used for China Leading PAPER MACHINE manufacturer, such as


    toilet tissue paper making machine,
    corrugated paper machine,
    A4 copy paper machine,
    Kraft paper machine,
    writing paper machine,

    stock preparation equipments,
    cylinder mould paper machine,
    fourdrinier paper machine,
    paper making machine,
    toilet paper machine,
    printing paper machine,etc.
