SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm from wholesalers

    Buy cheap SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm from wholesalers
    • Buy cheap SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm from wholesalers
    • Buy cheap SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm from wholesalers
    • Buy cheap SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm from wholesalers

    SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 4 1/2 X 3
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm

    4 1/2 X 3 Dunlop Air Spring SP2895 Firestone Air Actuator W01-R58-4035 Stroke 100mm


    AIRSUSTECH 4 1/2 X 3 Cross OEM:


    AIRSUSTECH:4 1/2 X 3

    Rubber Bellows 4 1/2 X 3
    Dunlop Air Spring SP 2895

    Dunlop Air Spring SP2895
    Firestone Air Bags W01-R58-4035
    Dunlop Rubber Bellows SP 2895

    Dunlop Rubber Bellows SP2895


    Firestone:W01-R58-4035

    Firestone:W01 R58 4035

    Firestone:W01R584035


    Comparable: W01R584035, W01-R58-4035, WO1R584035, WO1-R58-4035


    The Specification AIRSUSTECH 4 1/2 X 3 :


    bellows type industrial air spring,

    single spiral,

    effective area 44cm,

    maximum stroke 100mm,

    movable connecting part,

    female mounting thread, G3/8 BSPP,

    neoprene (chloroprene Ene)
    Manufacturer: Mainland


    Compressed height
    100MM
    Maximum expansion height
    200MM
    The maximum diameter
    125MM
    Maximum inflation pressure
    120 psi
    Maximum stroke
    100MM
    Inlet type
    Metric
    Air inlet
    G3/8
    series
    d
    lowest temperature
    -22°F
    Maximum temperature
    194°F
    Bellows type
    Triple convolutions

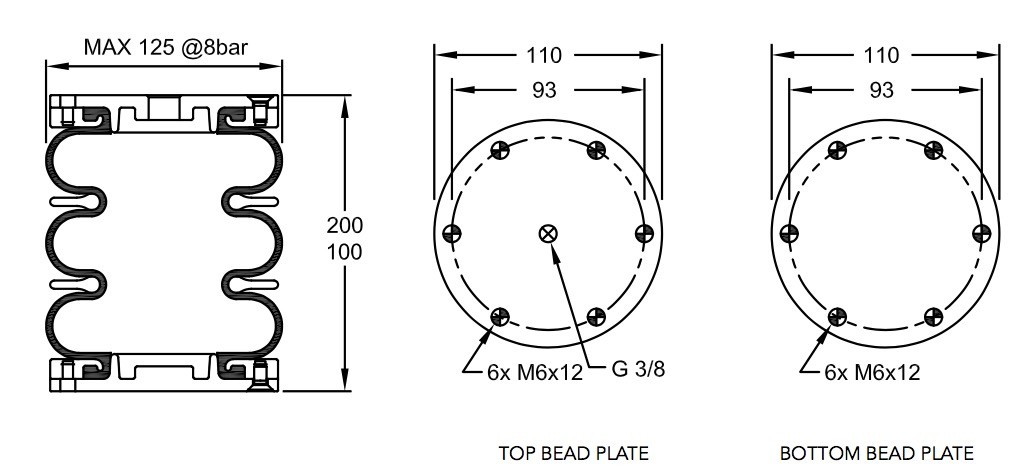

    The drawing of 4 1/2 X 3 Dunlop Air Spring SP2895:


    SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm


    Other kinds of the Firestone W01-R58 air spring:


    W01-R58-4023 140 W01-R58-4085 133 W01-R58-4052 131 W01-R58-4076 131

    W01-R58-4053 132 W01-R58-4092 135 W01-R58-4086 136 W01-R58-4062 138

    W01-R58-4054 133 W01-R58-4060 136 W01-R58-4063 138 W01-R58-4074 139

    W01-R58-4043 130 W01-R58-4037 137 W01-R58-4050 130 W01-R58-4051 131

    W01-R58-4045 133 W01-R58-4055 134 W01-R58-4048 134 W01-R58-4044 136

    W01-R58-4075 139 W01-R58-4047 135 W01-R58-4057 134 W01-R58-4038 136

    W01-R58-4095 133 W01-R58-4056 134 W01-R58-4035 131 W01-R58-4081 130

    W01-R58-4078 132 W01-R58-4070 132 W01-R58-4036 132 W01-R58-4059 135

    W01-R58-4061 136 W01-R58-4073 137 W01-R58-4058 134
