2B6276 Cross others OEM
| OEM References Numbers | References Numbers |
Firestone :W01-M58-7679,W01M587679,W01 M58 7679 Firestone :20C2 | SchmitzTrailer : 016808 |
| Dunlop : S0 9280,S09280 | Granning: 15670 |
| Goodyear : 2B9-269;2B9 269;2B9269 | AIRSUSTECH 2B6276 |
| Gart: T291/2B | |
| R.O.R/Meritor : 21221356 | |
| Weweler : US 07394F |
|
Firestone 20F2
Firestone W01-M58-7679
N.W.:3.67 KG
WEWELER US 07394F
SCHMITZ 016 808
GRANNING 15670
ROR 2122 1356
DAIMLER TAS A 946 328 21 01
WEWELER US 07394C
WEWELER US 07394
AIRSUSTECH 2B6276 Specifications and Technical Data
Firestone Part Number: W01-M58-7679 / W01M587679 / W01 M58 7679
Compressed Height: 3.12 inches /

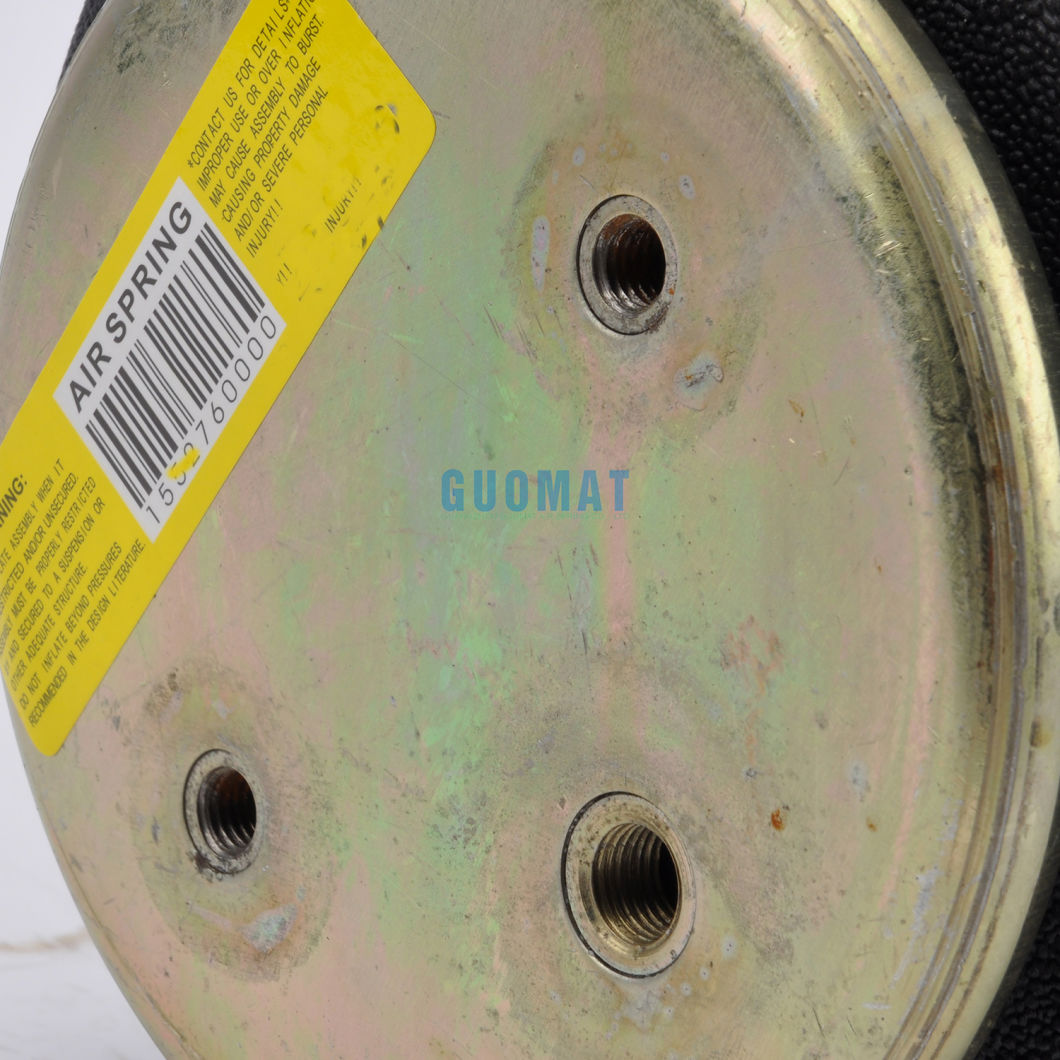

Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsXM10X1.5
Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM10X1.5
Rubber Bellows MAX Diameter: 262 mm
The Working Stroke : MAX 325 mm to MIN 95mm
Gas Hole / Air inlet : 1/4 NPTF
Firestone Bellows Number: 20-2
Goodyear Part Number: 2B9-269
Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206
Triangle Part Number: 4426
Bellows NO.: 20-2
Order Number: W01-M58-7679
Assembly Weight: 8.1 lbs
Design Height: 9-11 inches
Loading Capacity at 20 psig: 648 lbsf
Loading Capacity at 60 psig: 1,944 lbsf
Loading Capacity at 90 psig: 2,916 lbsf
Maximum Diameter: 10.4 inches
Operating Temperature: 56Cº to -53Cº
Description convolution/ convoluted air spring
The winding air spring is the bellows GUOMAT air spring. The
bellows air spring has one, two or three loops in the flexible
member. The dual-compound air bags are commonly used as lift
springs or shafts and trailers for air springs, as well as for
industrial and commercial applications and devices for actuators or
insulators. The specifications of your 2b9-269 will vary, but the
double fold's GUOMAT bag can be found in the crimp design and the
sleeve bellows. They will provide similar features and functions,
but the sleeve type of the maintainer and the maintainer and the
external interchangeable parts weave the final permanent connection
between the rings.
Compared with the traditional coil springs and leaf springs, air
suspension springs have the following characteristics:
Reduce energy consumption: air suspension intelligent balance system, according to the road
conditions, weather, intelligent adjustment of body balance, to the
maximum extent possible to ensure the smooth operation of the
vehicle, saving energy consumption, such as: When the vehicle
driving on the highway, Air suspension system based on the
characteristics of high speed, straight road and other
characteristics, a comprehensive analysis, intelligent adjustment
of body height, so that the overall body to reduce the windward
resistance of vehicles to achieve the purpose of saving fuel
consumption.
