Supply Ability : | 1000pcs/week |
Payment Terms : | T/T, Western Union,Paypal or Others |
Brand Name : | AIRSUSTECH |
Certification : | ISO/TS16949, ISO9001 |
Delivery Time : | 3-8 Working Days |
Model Number : | 3B10X3 |
Manufacturer: | Complete Numbers |
Airkraft: | 115056 |
Contitech: | FT 210-32DS FT 210 32DS FT21032DS |
Dunlop: | SP1539(10X3) SP1539 10X3 |
Weforma: | WBD-G450 WBD G450 |
Stroke: | 230mm |
Condition: | New |
OEM Original Equipment Manufacturer:

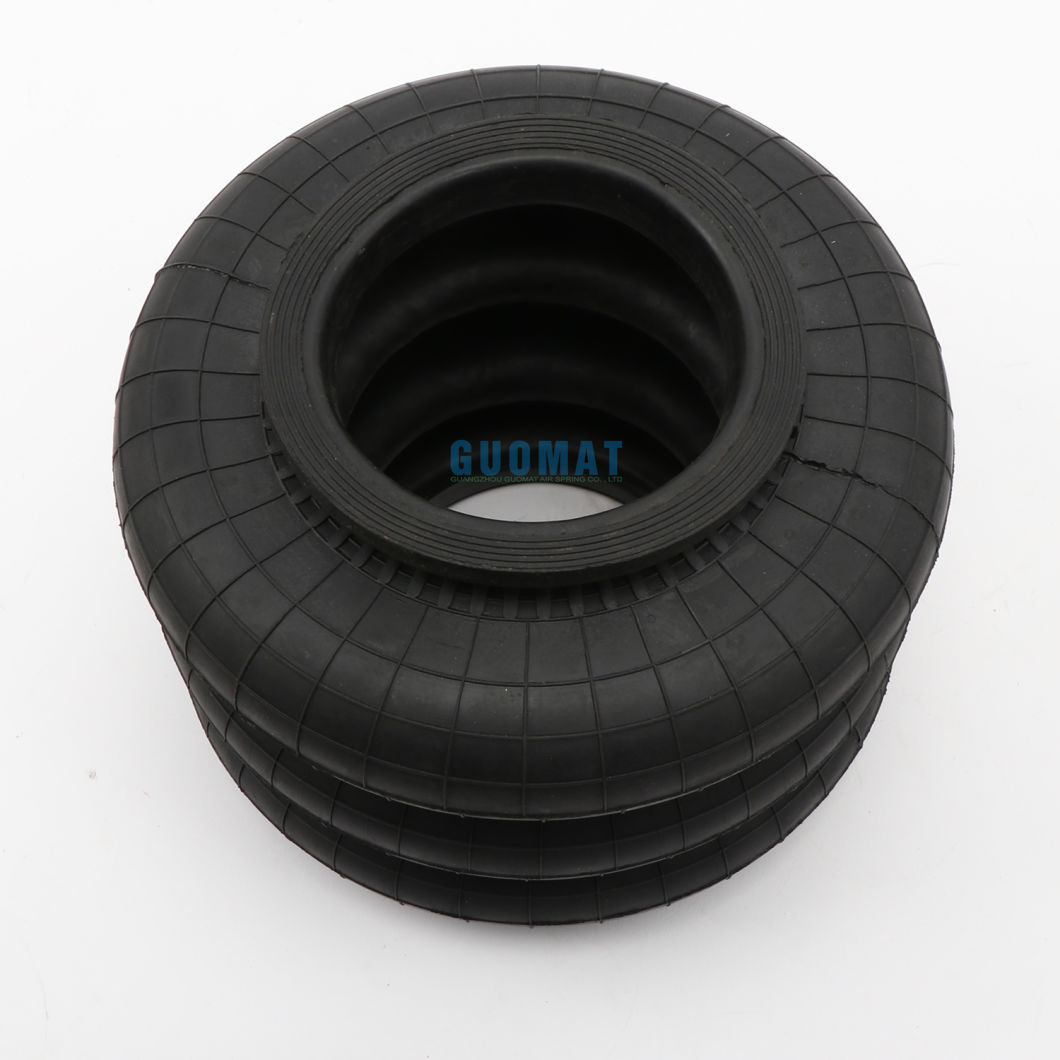

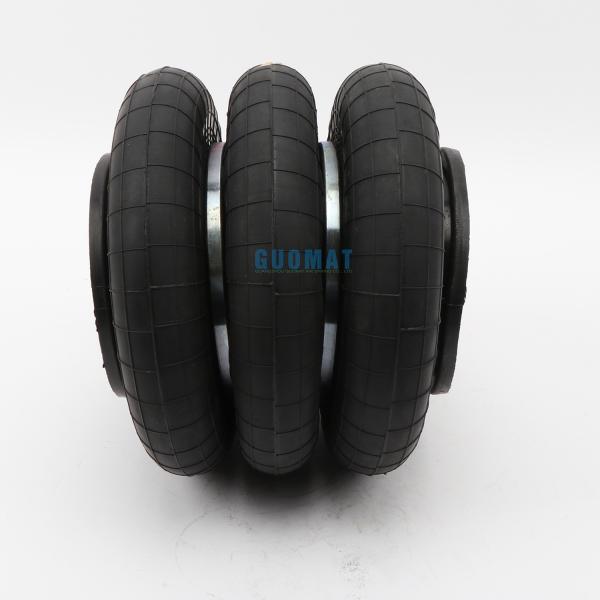

Rubber Bellows
In 0.7 M pa,Rubber Bellows Diameter : 256 mm
Rubber Bellows Natural Height :230 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With 2 Girdle Hoop
Pneumatic applications - static characteristics
Force F [kN]
Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
Height H [mm] | 350 | 5,62 | 7,66 | 9,75 | 11,8 | 14 | 16,3 | 11 |
300 | 7,1 | 9,56 | 12 | 14,5 | 17,1 | 19,8 | 9,5 | |
250 | 8,62 | 11,6 | 14,6 | 17,6 | 20,7 | 24 | 8,2 | |
200 | 10,3 | 13,8 | 17,3 | 20,8 | 24,4 | 28,3 | 6,6 | |
150 | 12,1 | 16,1 | 20,1 | 24,2 | 28,3 | 32,6 | 4,7 |
The draiwng of 10X3:
Working principle of air spring:
Thus, in the effective stroke of the air spring, the height of the
air spring, the volume of the inner cavity, and the load carrying
capacity are smoothly controlled by the flexible transmission, the
amplitude and the vibration load with the increase and decrease of
the vibration load. It is also possible to adjust the stiffness and
bearing capacity of the spring by increasing or decreasing the
amount of inflation, and an auxiliary air chamber can be attached
to achieve self-control adjustment.
Flange connection type of air spring model comparison table | |||
GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
FS22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
FS44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
FS76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
FS76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
FS138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
FS210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
FS412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
FS614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
FS816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
FD22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
FD44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
FD76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
FD76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
FD138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
FD209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
FD210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
FD412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
FD614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
FD816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
FT22-6DICR | FT 22-6 DI CR | ||
FT44-15DICR | FT 44-15 DI CR | ||
FT76-20DICR | FT 76-20 DI CR | ||
FT76-20DSCR | FT 76-20 DS CR | ||
FT138-26DS | FT 138-26 DS | ||
FT210-32DS | FT 210-32 DS | ||
FT412-32DS | FT 412-32 DS | ||
FT614-36DS | FT 614-36 DS | ||
FT816-40DS | FT 816-40 DS |
![]() |
