    0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B9x2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

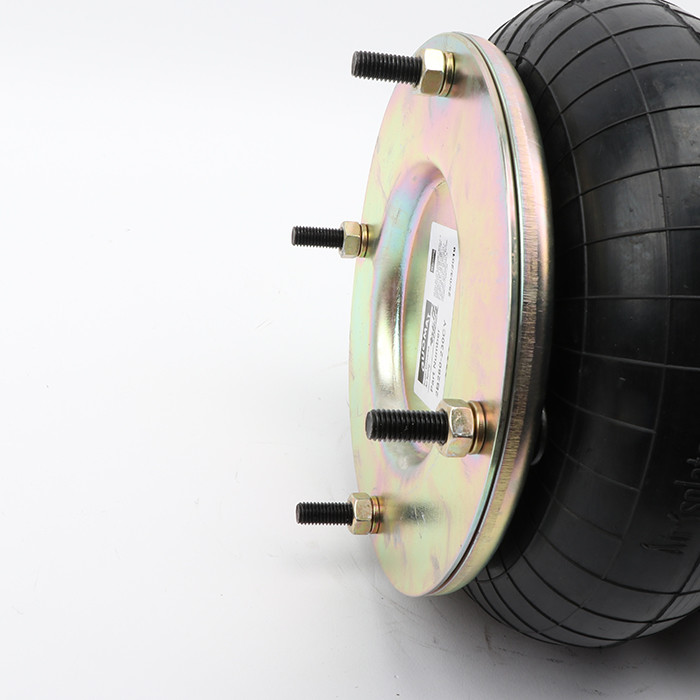

    0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow

    Air Spring MODEL 26 AMORTIGUADOR GAS 84181 Connection Type F2

    AIRSUSTECH NO .: 2B9x2 refer to 84181

    AIRSUSTECH 2B9x2

    AIRSUSTECH rubber bellows 9x2

    Model:26
    Type: F2

    High Temp. code 84181

    2,Pneumatic Actuator, Model:26, Type: F2, High Temp. code -89422, PCD: 135mm, Max OD-220mm, Max. Height-245mm, Min. Height-85mm, Stiffness: 18.4 daN/mm Connection: Bead Ring Flange connection, Make:
    T26 84181.

    AIRSUSTECH 2B9x2 OEM Cross reference:


    AIRSUSTECH 2B9x2

    Air Spring MODEL 26

    Air SpringStandard Code 84181


    Nominal diameter (inch) x number of turns: 9 "x2 / 9" x2 / 9x2.


    Specifications and Detail Technical Parameters:AIRSUSTECH 2B9x2


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 4pcs X M10


    Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G1/2


    Cover Plate

    Top Cover Plate Diameter (Width): 155 mm


    Bottom Cover Plate Diameter (Width): 155 mm


    Material top and bottom plate:Steel


    Rubber Bellows


    Stroke of Rubber Bellows:85mm-245m


    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Rubber material Standard up to 70°C natural rubber


    AIRSUSTECH 2B9x2 air spring is used for China Leading PAPER MACHINE manufacturer, such as


    toilet tissue paper making machine,
    corrugated paper machine,
    A4 copy paper machine,
    Kraft paper machine,
    writing paper machine,

    stock preparation equipments,
    cylinder mould paper machine,
    fourdrinier paper machine,
    paper making machine,
    toilet paper machine,
    printing paper machine,etc.
