Why use AIRSUSTECH G3000 Replaces Firestone W02-358-3001 actuator
(instead of air or hydraulic cylinder) for vibration isolation?
low cost
Generally, the initial cost is half or less of a conventional
pneumatic cylinder or hydraulic cylinder with the same force. The
initial cost advantage is the larger size.
Wide range
The diameter of AIRSUSTECH G3000 Replaces Firestone W02-358-3001
actuator ranges from 2.2 inches to 37 inches.
The strength capacity is 100,000 pounds. The stroke can reach 14
inches.
Durable
AIRSUSTECH G3000 Replaces Firestone W02-358-3001 actuator is a
further application of Firestone’s proven AIRSUSTECH G3000 Replaces
Firestone W02-358-3001 spring for
Suspension of trucks and buses. Long life and durability needed for
millions of miles
The use of heavy-duty suspensions under adverse environmental
conditions is also an important factor in mechanical design.
No maintenance or lubrication required
No inner rod or piston
AIRSUSTECH G3000 Replaces Firestone W02-358-3001 stroke actuators
do not have traditional internal rods, pistons or sliding seals
Gas cylinder. This allows the stroke actuator to be designed for
dirty or oily applications.
Coarse sand will destroy the seal on a conventional cylinder.
No friction, immediate response
Since the actuator does not have a sliding seal, it will not look
like
Angle ability
Airstrikes have a unique ability to make strokes through arcs
without a U-shaped clip.
Angular movement up to 30 degrees

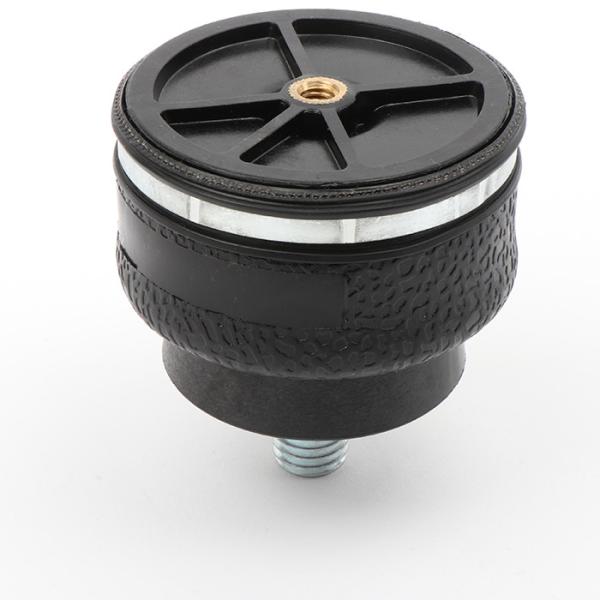

AIRSUSTECH G3000 Cross others OEM
Manufacturer :AIRSUSTECH
Manufacturer Part Number :AIRSUSTECH G3001
Firestone Bellows Number :1M1A
Firestone Bellows Number :W02-358-3001
Firestone Part Number :W02-358-3001
Firestone Part Number :W02 358 3001
Firestone Part Number :W023583001
AIRSUSTECH G3001 Technical Parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcX5/16-18unc
Screw Center Distance of Top Cover Plate : in the middle
Bottom Cover Plate Screw (Nut) Tooth : 1pcX5/8-11unc
Screw Center Distance of Bottom Cover Plate : in the middle
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/8 N P.T.F. / 1/4NPTF
Cover Plate
Top Cover Plate Diameter: 74.5 mm
Bottom Cover Plate Diameter: 61.2 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 91.5 mm
Rubber Bellows Natural Diameter :80 mm
The Working Stroke : MAX 91 mm to MIN 38 mm
Maximum Height :91 mm
Minimum Height :38 mm
Compression Height : 53 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :no Pieces of Girdle Hoop
