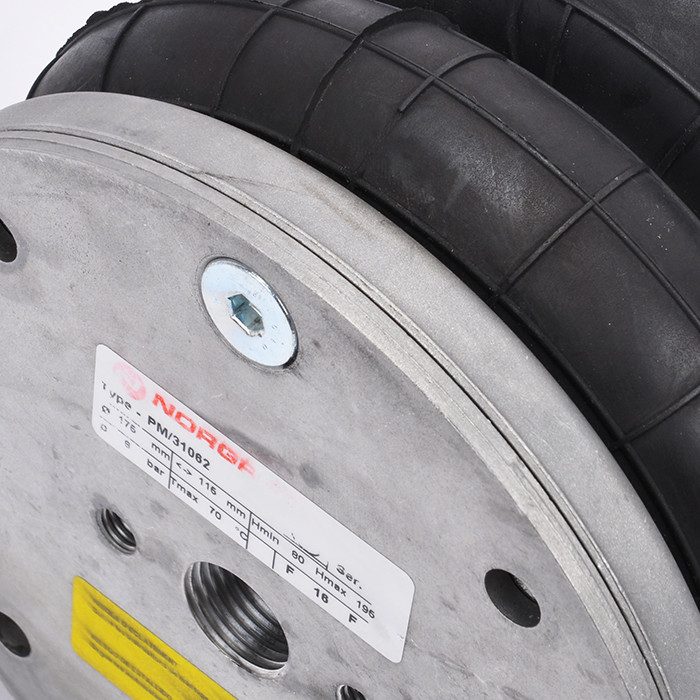

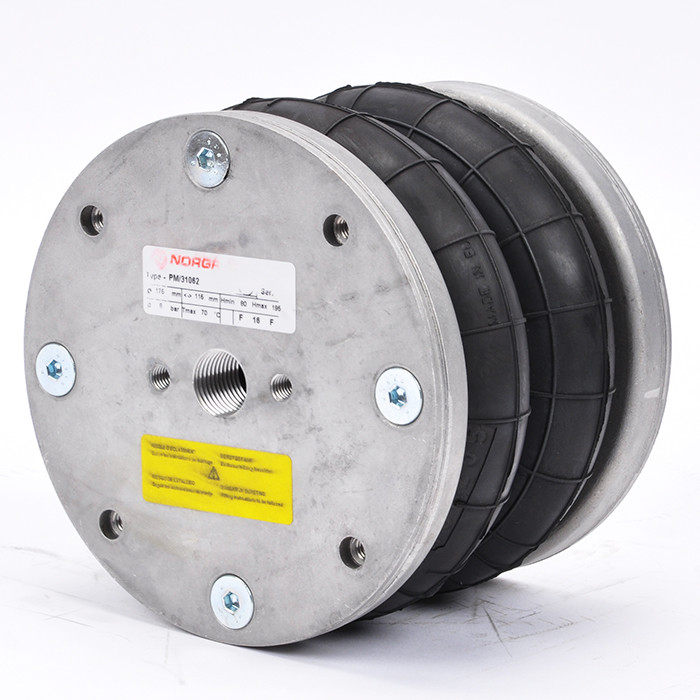

PM/31062 Norgren Air Spring PM/31000 With Horizontal Aluminum Alloy Cover For Lifting Device of Paper Machine

PM/31062 Norgren Air Spring PM/31000 product description:

The air spring shock absorber PM/31062 Norgren Air Spring PP M/31000 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber PM/31062 Norgren Air Spring P M/31000 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber PM/31062 Norgren Air Spring P M/31000 must be used to absorb the force

• Before disassembling the air spring shock absorber PM/31062 Norgren Air Spring P M/31000 , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber PM/31062 Norgren Air Spring P M/31000 shall not be in contact with other parts

PM/31062 Norgren Cross OEM Original Equipment Manufacturer:

Norgren:PM/31062

Norgren:PM/31000

Firestone W01-R58-4053 - (6 x 2 Steel )

Firestone W01-R58-4070 - (6 x 2 Alu )

NORGREN AIR BELLOWS 6 X 2 PM/31062

Specifications and Detail Technical Parameters

❶Nut/blind nut
Screw (nut) teeth on the upper cover plate: 4 X M8

Screw (nut) teeth of the bottom cover plate: 4 x M8

❷Air hole/air inlet/air fittings
Air hole/air inlet: G1 / 2

❸Cover plate
Top plate diameter (width): 153.5 mm

Diameter (width) of the bottom cover plate: 153.5 mm

Material top and bottom plate: aluminum

Bell rubber bellows
Maximum diameter at 7 bar: 175MM

Rubber bellows stroke: 80mm-195m

❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

Maximum load at 80 mm height and 8 bar: 1415 daN

Size-Diameter: 175.0 mm
Size-Length: 115.0mm
Size-weight: 2.700 kg
Size-Unit of Measurement: EA
Performance-shelf life: 5 years
Range: PM / 31000

Medium: compressed air
Stomatal size: G1 / 2
Operation mode: single action
Working pressure: 0 bar-8 bar
Working temperature: -30°C-50°C
Stroke length: 115 mm
Theoretical power: 10600 N
Certification-REACH: available on request
Certification-RoHS compliant: available on request
Classification-eClass 11: 51010390
Classification-HS Code: 87088090
Classification-HTS code: 8708809000

PM/31062 Norgren Note of usage:

-Make sure that the bellows does not
Constant contact with hydraulics
Oil, lubricant,
Solvents, metal shavings and
Welding sparks.
-Whether to deal with air bellows
To the special media in the app,
Ask Norgren for more information,
Specified medium, temperature
And concentration must have enough gap
The surrounding bellows.
-The entire surface of the metal part is
Used to bear
force.
-Must be equipped with air bellows
With lateral guidance.
-Before completely venting the bellows
delete.

Other kinds of model air bellows:

Firestone W01-R58-4053 - (6 x 2 With Steel Cover Plate )

Firestone W01-R58-4059 - (10" x3 with Steel Cover Plate)

Firestone W01-R58-4054 - 8x1 With Steel Cover Plate

Firestone W01-R58-4028 - 8"x1 Epichlorhydrin

Spar Part Bellow 8"x2 W01-R58-4045

Firestone W01-R58-4064 -14" 1/2 x2

Firestone W01-R58-4063 -14 1/2 x1

Bellow only 8" x 1 -- W01-R58-4085

Firestone W01-R58-4048

W01-R58-4080 - 2 3/4" x 2

Firestone W01-R58-4060- 12" x2 with Steel Cover Plate

Firestone W01-R58-4070 - (6 x 2 V2a )

Firestone W01-R58-4051E 4,5 x 2 Stainless With Steel Cover Plate

Firestone W01-R58-4050

W01-R58-4080 - 2 3/4" x 1

W01-R58-4081 (2 3/4" x3)

W01-R58-4051 Dunlop Style 4,5 " x 2

W01-R58-4052 - (6" x1 with Steel Cover Plate)

Firestone W01-R58-4057 - (10 x1 with Steel Cover Plate)

Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)

Firestone W01-R58-4090 - 8"x2 Butyl

Firestone W01-R58-4055 - 8x2 With Steel Cover Plate

Firestone W01-R58-4060 (12 x1 with Steel Cover Plate)

Firestone W01-R58-4077 (12 x1 Herclor )

Firestone W01-R58-4056 -8"x3 With Steel Cover Plate

Firestone W01-R58-4062 (12 x3 With Steel Cover Plate)

Firestone W01-R58-4065 (14 1/2 x3 With Steel Cover Plate)

Firestone W01-R58-4098 (14 1/2 x1 Herclor)

Firestone W01-R58-4097 (14" 1/2 x2 Herclor)

Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)

Firestone W01-R58-4078 - (6 x1 Aluminum Alloy )

Firestone W01-R58-4070 - (6 x 2 Aluminum Alloy )
