Characteristic of AIRSUSTECH 1b5725 replaces Firestone
W01-358-7725:
Durability
The empty stroke AIRSUSTECH 1b5725 replaces Firestone W01-358-7725
has the same quality as AIRSUSTECH's legendary AIRSUSTECH spring
for truck and bus suspension. The use of heavy-duty suspension
requires millions of kilometers of flexibility and is designed to
withstand harsh environmental conditions and other harsh
conditions.
A wide range of
The diameter of the idle stroke AIRSUSTECH 1b5725 replaces
Firestone W01-358-7725 ranges from 55mm to 700mm. The capacity is
100,000 pounds. The maximum stroke can reach 355mm.
No internal rods, pistons or sliding seals
In AIRSUSTECH AIRSUSTECH 1b5725 replaces Firestone W01-358-7725 s,
there are no internal rods, pistons or sliding seals like many
conventional cylinders, which gives AIRSUSTECH an advantage in
applications where dirt or grit will erode conventional cylinder
seals.
Frictionless
In the absence of a sliding seal, the AIRSUSTECH AIRSUSTECH 1b5725
replaces Firestone W01-358-7725 does not break away from friction.
flexible
The empty stroke AIRSUSTECH 1b5725 replaces Firestone W01-358-7725
can be used in conjunction with a variety of media (liquid or gas).
Angle ability
Without the clevis, a stroke through an arc may produce angular
movements of up to 30 degrees.
Side loading capacity
Under certain conditions, free-stroke AIRSUSTECH 1b5725 replaces
Firestone W01-358-7725 s are not affected by side loads. This
eliminates the possibility of rod bends, nicks and excessive seal
wear that are common when using conventional cylinders.
Product Description

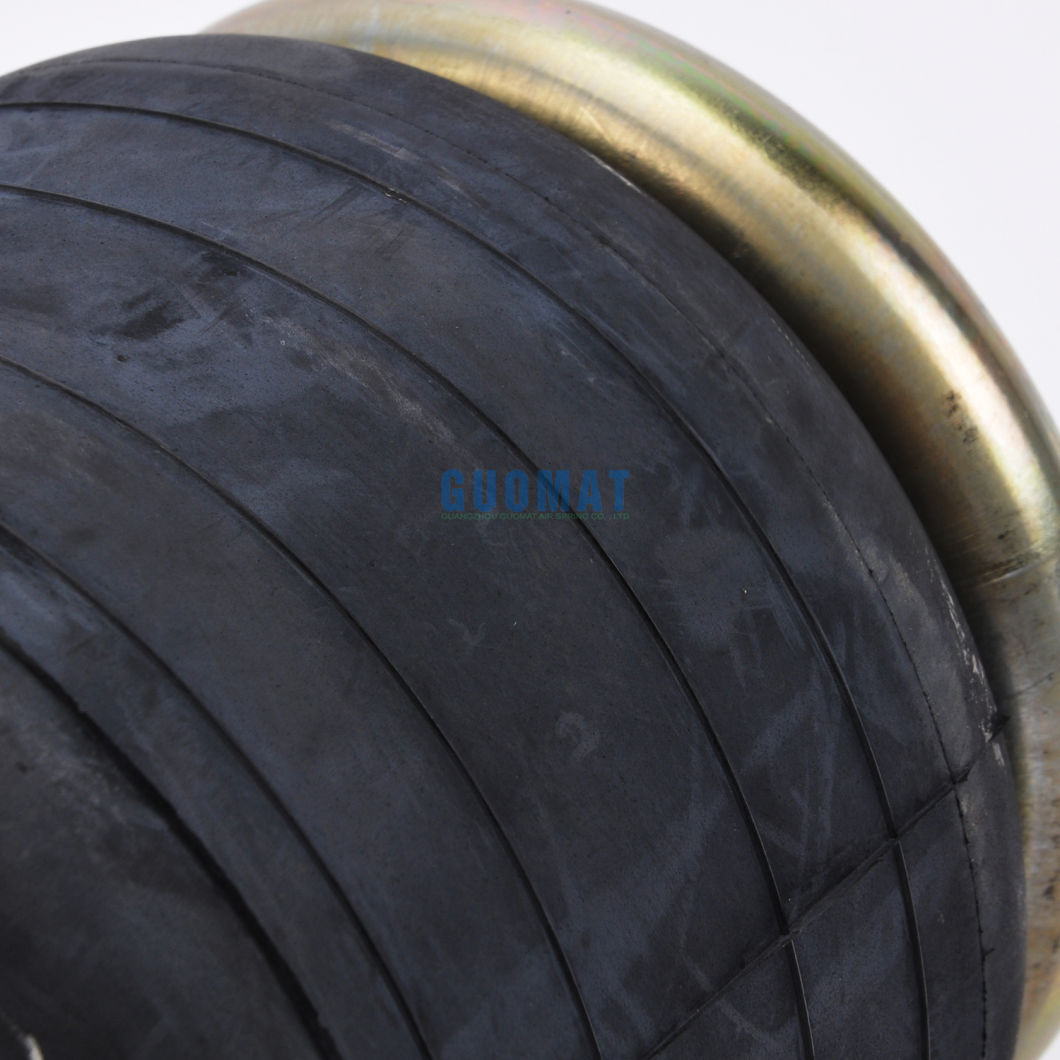

Single convoluted air spring with crimpled plated ,also avaiable
with other air inlets
1. High quality
2. Competitive price
3. MOQ : 10 PCS
4. Warranty :One year
5.Cross Information:
GUOMAT 1B7725
Firestone W013587725,
Firestone W01-358-7725, ,
Firestone WO1-358-7725,
Firestone WO13587725
AIRSUSTECH 1b5725 Specifications and Technical Data
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 44 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 22 mm
Cover Plate
Top Cover Plate Diameter: 114.8 mm
Bottom Cover Plate Diameter: 114.8 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 150 mm
Rubber Bellows Natural Diameter : 126 mm
The Working Stroke : MIN 60 mm to MAX 141 mm
Maximum Height : 141 mm
Minimum Height :60mm
Stroke Height : 79 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop : no One Pieces of Girdle Hoop
Operating Temperature: 57Cº to -54Cº
Compressed Height: 90mm
DETERMINE ISOLATION EFFECTIVENESS
Select one or two Airmounts that can support the load at each mount
point. It is usually best to design a pressure in the range of 60
to 80 psig. First consider only 1M1A-0 and single and double
convolution types. Note that in most cases, in the range of 210 to
63,890 pounds, you will find single and double rotating parts that
support the load.
