    205mm Air Rite Suspension W013587451 Firestone Single Air Bag

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Price : 5-9 Pieces / US $59 | 10-49 Pieces / US $55 | 50+ Pieces / US $49
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 1B7451
    • Product Details
    • Company Profile

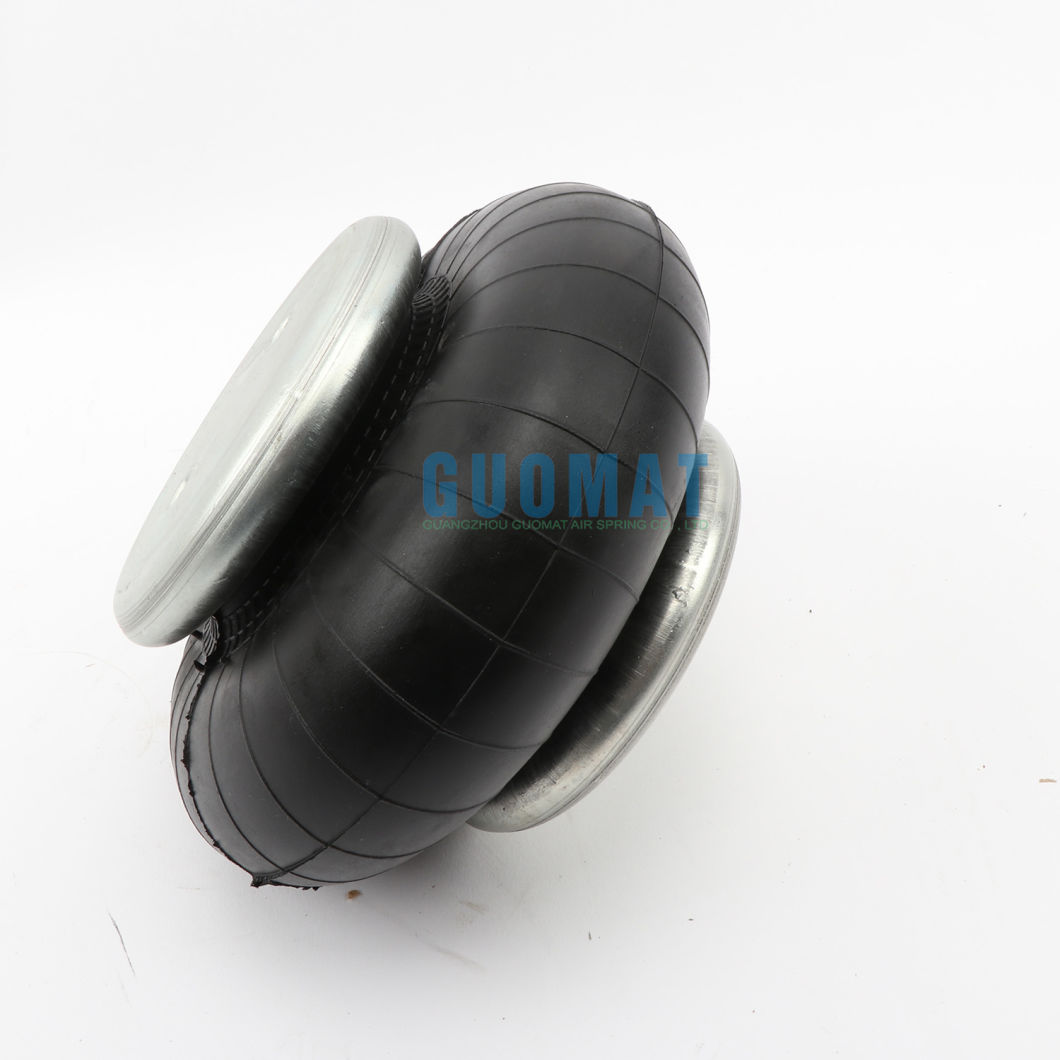

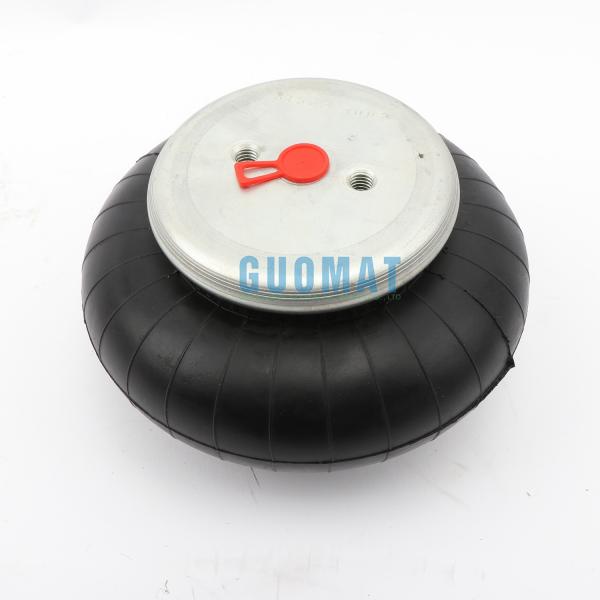

    205mm Air Rite Suspension W013587451 Firestone Single Air Bag

    Firestone Air Bags W013587451 Dia. Max. 205 Air Suspension Bellows / Single Convoluted Air Spring


    AIRSUSTECH Part Number:1B7451 Cross other OE:


    AIRSUSTECH Part Number:1B7451

    Firestone Part Number:W01-358-7451,

    Firestone Part Number:W013587451,

    Firestone Part Number:WO1-358-7451,

    Firestone Part Number:WO13587451


    Goodyear Part # 1B7-100 Goodyear-Firestone Air Bags ‚ 1B7-101 Goodyear-Firestone Air Bags ‚ 1B7-102 Goodyear-Firestone Air Bags ‚ 1B7-103 Goodyear-Firestone Air Bags ‚ 1B7-540 Goodyear-Firestone Air Bags ‚ 1B7-541 Goodyear-Firestone Air Bags ‚ 1B7-542 Goodyear-Firestone Air Bags


    AIRSUSTECH Part Number:1B7451 Specifications


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 44.45 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 44.45 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4NPTF

    Screw Center Distance Between Gas Hole and Nut : 22.25 mm


    Cover Plate

    Top Cover Plate Diameter: 115 mm

    Bottom Cover Plate Diameter: 115 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 205 mm

    Rubber Bellows Natural Diameter : 180 mm

    The Working Stroke : MIN 50 mm to MAX 140 mm

    Maximum Height : 140 mm

    Minimum Height :50mm

    Stroke Height : 90mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :no One Pieces of Girdle Hoop


    Other kind of Style 110 Two Ply Bellows:


    Description Assembly Order No.

    Blind nuts, 1/4 NPT :Firestone Part Number:WO1-358-7451 ;WO1 358 7451;WO13587451

    Blind nuts, 3/4 NPT:Firestone Part Number: WO1-358-7484 ;WO1 358 7484;WO13587484

    Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws):Firestone Part Number: WO1-358-0112;WO1 358 0112;WO13580112

    Rubber bellows only :Firestone Part Number:WO1-358-0100 ;WO1 358 0100;WO13580100

    Assembly weight:3.0 lbs.

    Force to collapse to minimum height (@ 0 PSIG)........ 8 lbs.


    AIRSUSTECH Part Number:1B7451 Technical parameters


    aximum Diameter @ 100 PSIG (mm)210.82Other Cross Reference

    W01-358-7451, W013587451, WO1-358-7451, WO13587451


    Maximum Height (mm)140Manufacturer Part NumberW013587451
    Maximum Stroke (mm)76.2ManufacturerFirestone Industrial
    Minimum Usable Height (mm)50Style Number110B
    1 Inch (pounds)2090Style ShapeSingle Convolution
    3 Inch (pounds)1030Natural Frequency (@80 psig) (cpm)162
    Bead plate Type1400 CPM %80.2
    Blind Nut Centers (mm)44.45800 CPM %95.7
    Design Height4.51500 CPM %98.8
    40 psig (pounds)650Maximum Stroke (pounds)940
    60 psig (pounds)1010Material2-Ply Standard Cord
    80 psig (pounds)1390



    W013587451 Firestone Dia. Max. 205 Air Suspension Bellows / Single Convoluted Air Spring
    W013587451 Firestone Dia. Max. 205 Air Suspension Bellows / Single Convoluted Air Spring
    W013587451 Firestone Dia. Max. 205 Air Suspension Bellows / Single Convoluted Air Spring

    W01-358-7451 110 750 430W01-358-6387 26 750 370 M
    W01-358-0119 119 750 604W01-358-7530 312 750 870 M
    W01-358-6369 113-1 750 496 MW01-358-0150 113-1 750 498
    W01-358-7460 115 750 510W01-358-6400 224 750 865 M
    W01-358-0127 131 750 655W01-358-7531 28 750 380 M
    W01-358-6371 113-1 750 495 MW01-358-0201 201 751 310
    W01-358-0226 22 751 200W01-358-6800 21-2 750 240
    W01-358-6910 20 750 200W01-358-7532 29 750 400 M
    W01-358-7561 116 750 550W01-358-0205 203 751 320
    W01-358-0231 128 750 647W01-358-6810 233-2 750 867
    W01-358-6923 20 750 230W01-358-7534 39 750 428 M
    W01-358-7564 116 750 560W01-358-0207 207 751 330
    W01-358-0237 202 750 715W01-358-6811 233-2 750 869
    W01-358-6951 20-2 750 232W01-358-7535 333 751 022 M
    W01-358-7568 116 750 570W01-358-0213 21 751 190
    W01-358-0259 22-1.5 750 345W01-358-6896 19-.75 750 177
    W01-358-6952 20-2 750 231W01-358-7538 113 750 490 M
    W01-358-7592 160 750 774W01-358-0219 218 751 410
    W01-358-0305 20-2 750 235W01-358-6900 20 750 180
    W01-358-6955 255-1.5 750 830W01-358-7558 233-2 750 868
    W01-358-7598 116-1 750 568W01-358-7802 313 750 880
    W01-358-0324 324 751 005W01-358-3008 2M2A 750 521
    W01-358-6956 255-1.5 750 832W01-358-6986 218 750 850 M
    W01-358-7600 117 750 580W01-358-7808 313 750 900
    W01-358-0480 1X84D-1 751 512W01-358-3019 2M2A 750 522
    W01-358-6966 121 750 605 MW01-358-6987 207 750 760 M
