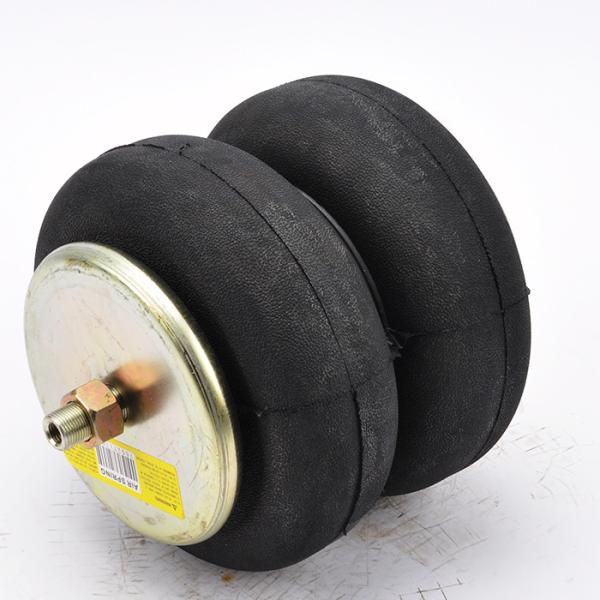

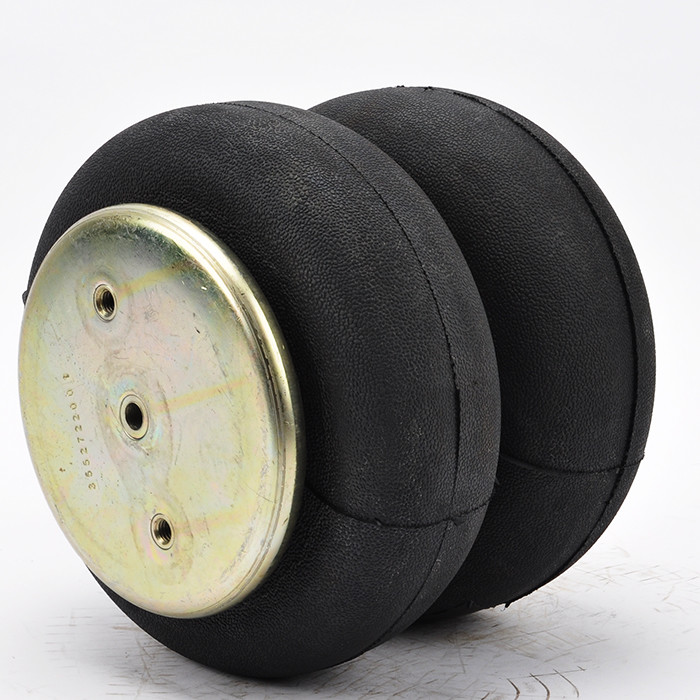

W01-358-6927 Firestone Air Bags International Navistar 1685176C1 For Leather Drawing Machinery

AIRSUSTECH 2B69275 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 2B6927

AIRSUSTECH rubber bellows 2B20F-1

Firestone: 6927
Firestone:W01-358-6927
Firestone:W01 358 6927
Firestone:W013586927
ContiTech:FD 200-25 453 1/4 NPT
ContiTech:FD 200 25 453 1/4 NPT
ContiTech:FD200 25 453 1/4 NPT

Goodyear:2B8-218

Goodyear:2B8 218

Goodyear:2B8218
Goodyear Bellows NO.:578-92-3-206
Goodyear Bellows NO.:578 92 3 206
Goodyear Bellows NO.:578923206

Goodyear Bellows NO.:578-92-3-202
Goodyear Bellows NO.:578 92 3 202
Goodyear Bellows NO.:578923202

Firestone W01-358-6927, Firestone Style 20-2, Reyco 12906-01, 12906-02, Goodyear 2B9-218, Conti 64553, International Navistar 1685176C1, Load Guard SC2072, Taurus AS218-6927, Triangle 4453, TRP AS69270

AIRSUSTECH 2B6927 Specifications and Detail Technical Parameters

❶Nut/blind nut

Top plate screw (nut) teeth: 1X3/4-16UNF
The screw center distance of the top cover plate: In the middle
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet: 1/4 NPT
Screw center distance between air hole and nut: 35 mm

❸Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 81 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 81 mm
Stroke height: 244mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

AIRSUSTECH 2B6927 refer to W01-358-6927Firestone Air Bags product description:

The air spring shock absorber AIRSUSTECH 2B6927 refer to W01-358-6927Firestone Air Bags can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2B6927 refer to W01-358-6927Firestone Air Bags to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B6927 refer to W01-358-6927Firestone Air Bags must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2B6927 refer to W01-358-6927Firestone Air Bags , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2B6927 refer to W01-358-6927Firestone Air Bags shall not be in contact with other parts
