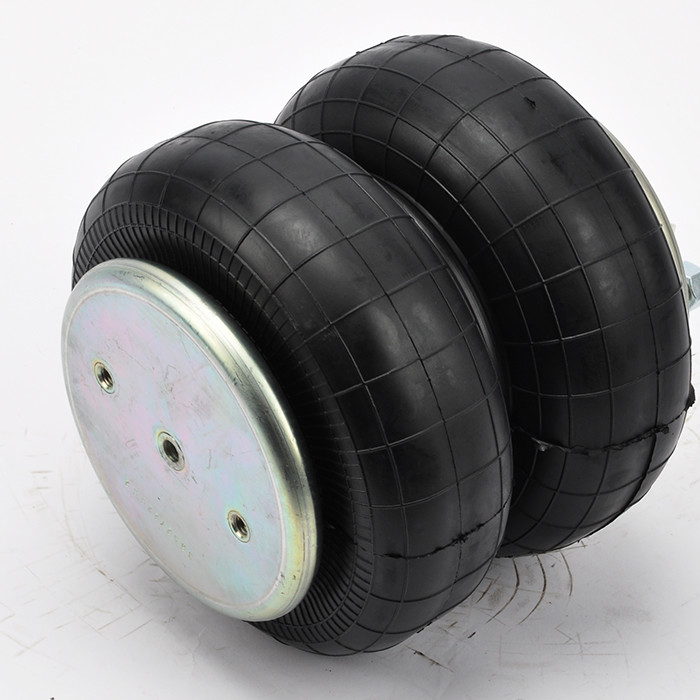

Firestone Air Bags W01-358-6943 Air Bellows as Actuator For Wood Debarker Machine​

AIRSUSTECH 2B6943 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 2B6943

AIRSUSTECH rubber bellows 2B20F-1

Firestone: 6943

Firestone:W01-358-6943

Firestone:W01 358 6943

Firestone:W013586943

ContiTech:FD 200-25 453 1/4 NPT

ContiTech:FD 200 25 453 1/4 NPT

ContiTech:FD200 25 453 1/4 NPT

Goodyear:2B9-250

Goodyear:2B9 250

Goodyear:2B9250

Goodyear Bellows NO.:578-92-3-206

Goodyear Bellows NO.:578 92 3 206

Goodyear Bellows NO.:578923206

Goodyear Bellows NO.:578-92-3-202

Goodyear Bellows NO.:578 92 3 202

Goodyear Bellows NO.:578923202

AIRSUSTECH 2B6927 Specifications and Detail Technical Parameters

❶Nut/blind nut
Top plate screw (nut) teeth: 2X1/2-13UNC
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm
❷Air hole/air inlet/air fittings
Air hole/air inlet: 1/4 NPT
Screw center distance between air hole and nut: 44.5mm
❸Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm

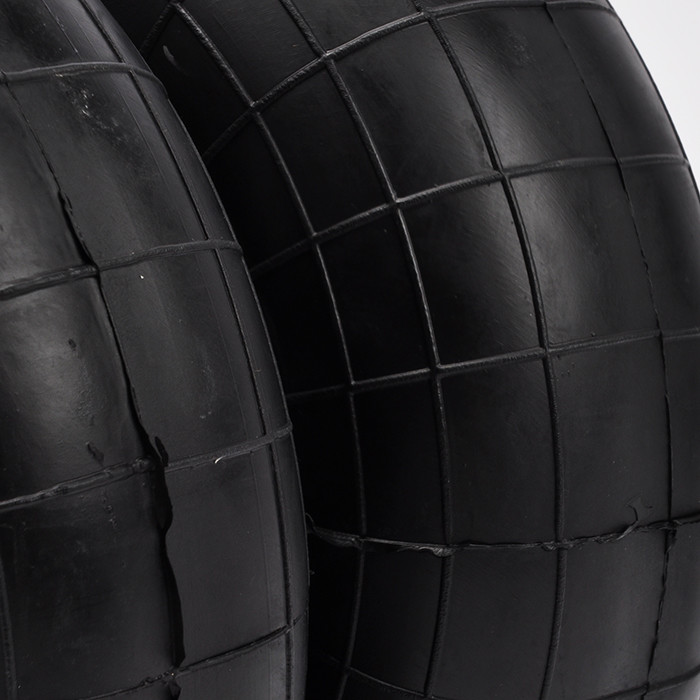

Bell rubber bellows
Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum79 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 79 mm
Stroke height: 246mm
❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

AIRSUSTECH 2B6943 Repalces Firestone W01-358-6943 Air Spring Bags product description:

The air spring shock absorber AIRSUSTECH 2B6943 Repalces Firestone W01-358-6943 Air Spring Bags can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2B6943 Repalces Firestone W01-358-6943 Air Spring Bags to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B6943 Repalces Firestone W01-358-6943 Air Spring Bags must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2B6943 Repalces Firestone W01-358-6943 Air Spring Bags , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2B6943 Repalces Firestone W01-358-6943 Air Spring Bags shall not be in contact with other parts
