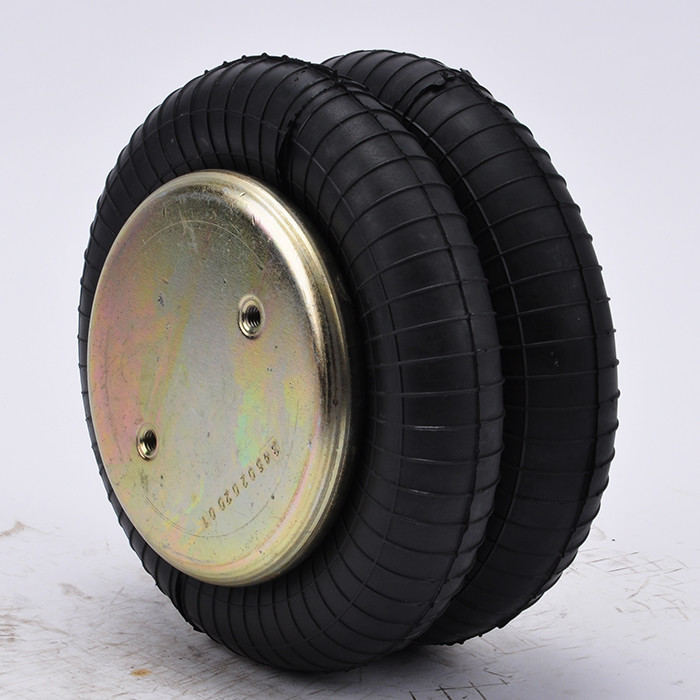

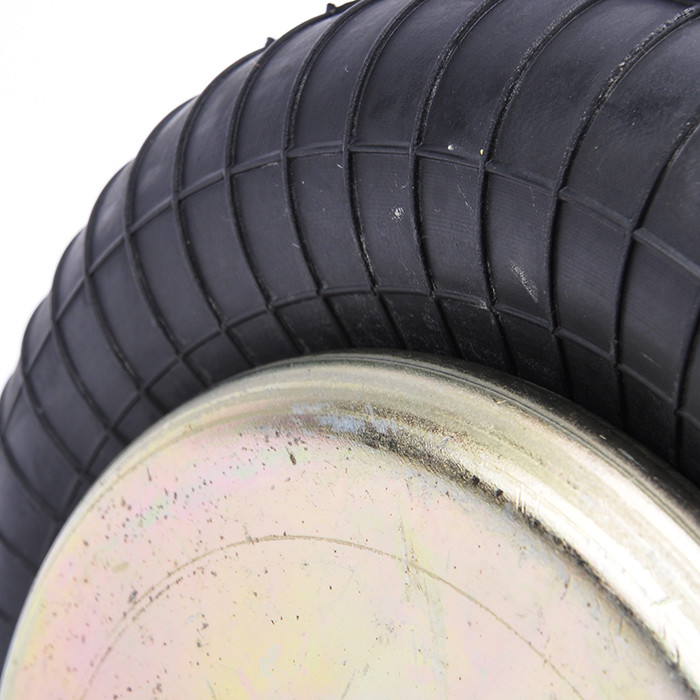

W01-M58-6353 Firestone Air Bags M8 Blind Nuts Industrial Bellows Actuator

AIRSUSTECH 2B6353 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 2B6353

AIRSUSTECH rubber bellows 2B26C

Firestone: 6353
Firestone:W01-358-6353
Firestone:W01 358 6353
Firestone:W013586353

Firestone Bellows NO.: 26C
ContiTech:FD 120-17 G3/4 M8
ContiTech:FD 120 17 G3/4 M8
ContiTech:FD 120 17 G3/4 M8
Airkraft : 113053
​Airkraft :: 2B-181

Firestone:W01M586353
Firestone:W01-M58-6353,

Firestone:WO1M586353,

Firestone:WO1-M58-6353
Additional Info: WO1-M58-6353,

26C Style AirSpring,

Type 1 Bead Plate,

(2) M8 Blind Nuts On 70MM Centers,

1/4 BSP Centered Port

AIRSUSTECH 2B6353 Specifications and Detail Technical Parameters

❶Nut/blind nut

Top plate screw (nut) teeth: 2XM8X1.5
The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2XM8X1.5
The screw center distance of the bottom cover plate: 70 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet: G3 / 4
Screw center distance between air hole and nut: 35 mm

❸Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 215 mm
Natural diameter of rubber bellows:190 mm
Working stroke: minimum 75 mm to maximum 230 mm
Maximum height: 230 mm
Minimum height: 75mm
Stroke height: 145mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

Air isolator
Design height (mm)
203
Load (at design height): 3 bar (kN)
3.8
Load (at design height): 5 bar (kN)
6.6
Load (at design height) at: 7 Bar (kN)
9.4
Natural frequency (@ 5 Bar) (fn (Hz)
1.9
Isolation percentage at forced frequency 7 Hz
92.1
Isolation percentage at forced frequency 13 Hz
98.2
Isolation percentage at forced frequency 25 Hz
99.5

Maximum diameter @ 7 bar (mm)
218
Maximum height (mm)
76
Maximum stroke (mm)
145
Minimum usable height (mm)
221
KN force at a force of 5 bar at a stroke of 25 mm
10.9
KN force in 5 bar at 50% of the maximum stroke
9.1
KN force when the maximum stroke is 5 Bar
5.7
material
2-layer standard line
End details
Bead plate type
1 piece
dim. A (Blind hole center) (mm)
70

AIRSUSTECH 2B6353 refer to W01-M58-6353 Firestone Air Bags product description:

The air spring shock absorber AIRSUSTECH 2B6353 refer to W01-M58-6353 Firestone Air Bags can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2B6353 refer to W01-M58-6353 Firestone Air Bags to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B6353 refer to W01-M58-6353 Firestone Air Bags must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2B6353 refer to W01-M58-6353 Firestone Air Bags , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2B6353 refer to W01-M58-6353 Firestone Air Bags shall not be in contact with other parts
