    3/8-16UNC Industrial Air Springs

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6291
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

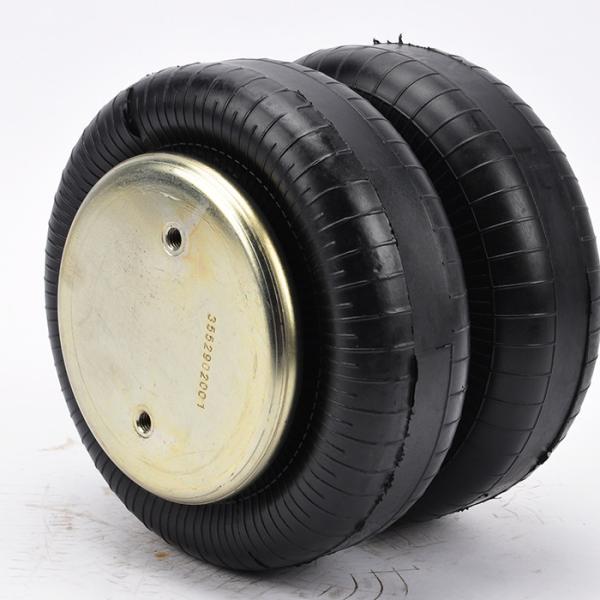

    3/8-16UNC Industrial Air Springs

    Industrial Air Springs 2B6291 Blind Nuts 3/8-16UNC For Extracting the Juice Machine


    AIRSUSTECH 2B7679 Cross OEM Original Equipment Manufacturer:

    AIRSUSTECH 2B6291
    AIRSUSTECH rubber bellows 2B20-2
    Firestone: 6291
    Firestone:W01-358-6291
    Firestone:W01 358 6291
    Firestone:W013586291
    ContiTech:FD 200-25 453 1/4 NPT
    ContiTech:FD 200 25 453 1/4 NPT
    ContiTech:FD200 25 453 1/4 NPT
    Goodyear:2B9-200

    Goodyear:2B9 200

    Goodyear:2B9200

    Goodyear Bellows NO.:578-92-3-200

    Goodyear Bellows NO.:578 92 3 200

    Goodyear Bellows NO.:578923200

    Goodyear Bellows NO.:578-92-3-202

    Goodyear Bellows NO.:578 92 3 202

    Goodyear Bellows NO.:578923202


    AIRSUSTECH 2B6291 Specifications and Detail Technical Parameters


    ❶Nut/blind nut
    Top plate screw (nut) teeth: 2X3/8-16UNC
    The screw center distance of the top cover plate: 89 mm
    Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
    The screw center distance of the bottom cover plate: 89 mm
    ❷Air hole/air inlet/air fittings
    Air hole/air inlet: 1/4 NPT
    Screw center distance between air hole and nut: 44 mm
    ❸Cover plate
    Top plate diameter: 160 mm
    Diameter of the bottom cover: 160 mm
    Bell rubber bellows
    Maximum diameter of rubber bellows: 262 mm
    Natural diameter of rubber bellows:240 mm
    Working stroke: minimum 95 mm to maximum 325 mm
    Maximum height: 325 mm
    Minimum height: 95 mm
    Stroke height: 230 mm
    ❺Bumper block/bumper block
    No bumper block
    ❻Belt loop/Belt loop
    There is a belt hoop: a belt hoop


    AIRSUSTECH 2B6291 Air Spring product description:


    The air spring shock absorber AIRSUSTECH 2B6291 Air Spring can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

    • In order to press the air spring shock absorber AIRSUSTECH 2B6291 Air Spring to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

    • The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B6291 Air Spring must be used to absorb the force

    • Before disassembling the air spring shock absorber AIRSUSTECH 2B6291 Air Spring , the internal air must be released to prevent accidents and personal injury.

    • During operation, the rubber air spring shock absorber AIRSUSTECH 2B6291 Air Spring shall not be in contact with other parts
