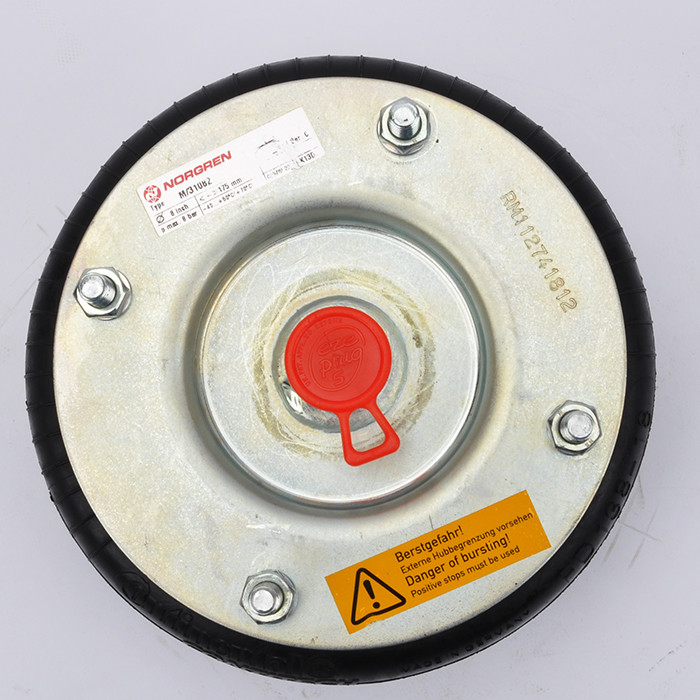

M/31082 Norgren Industrial Air Springs For Extending The Service Life of The Sorter And Support Structure

M/31082 Norgren Industrial Air Springs product description:

The air spring shock absorber M/31082 Norgren Industrial Air Springs can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber M/31082 Norgren Industrial Air Springs to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber M/31082 Norgren Industrial Air Springs must be used to absorb the force

• Before disassembling the air spring shock absorber M/31082 Norgren Industrial Air Springs , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber M/31082 Norgren Industrial Air Springs shall not be in contact with other parts

M/31082 Norgren Cross OEM Original Equipment Manufacturer:

AIRSUSTECH Part Number:2B8X2

Place of production: Imported from the UK

Brand Name: Nuoguan

Model: M/31082

Quality assurance: one year

Norgren M / 31082 Technical data

❶Nut/blind nut

Top plate screw (nut) teeth: 4 x M10
The screw center distance of the top cover plate: 155.5 mm
Screw (nut) teeth of the bottom cover plate: 4 x M10
The screw center distance of the bottom cover plate: 155.5 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet: G1/2
The screw center distance between the air hole and the nut: 72.75 mm

❸Cover plate
Top plate diameter: 184 mm
Diameter of the bottom cover: 184 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 230 mm
Natural diameter of rubber bellows: 205 mm
Working stroke: minimum 75 mm to maximum 250 mm
Maximum height: 250 mm
Minimum height: 75 mm
Stroke height: 175 mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
With belt loop: a belt loop

The air spring system equipped with a control box can ensure the smooth operation of the sorting machine and the perfect isolation of the supporting structure from vibration.

The main advantages of using air springs
Extend the service life of the sorter and support structure by eliminating undesirable vibrations
Reduce the noise caused by the sorter by up to 50%
Higher work safety
Easy to operate and maintain
The service life of the air spring is about 7 years
Energy saving 5-10%
Improve sorting quality
