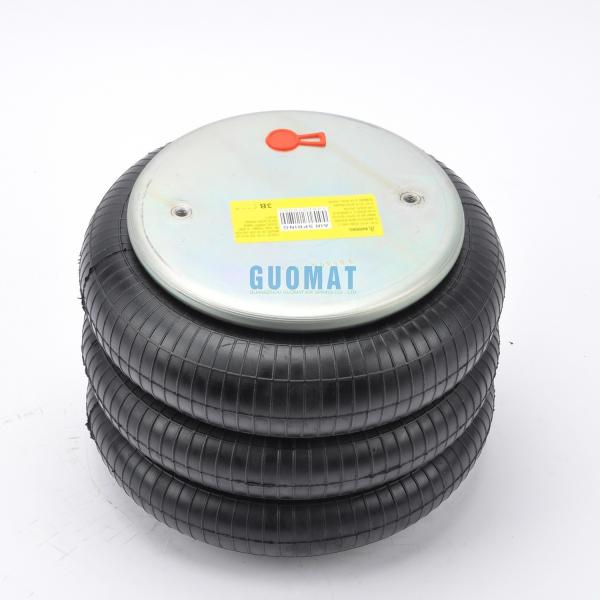

    FT330-29 432 Contitech Air Bags Industrial Air Springs 3B12-301 Bellows 578933100

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 3B8010
    • Product Details
    • Company Profile

    FT330-29 432 Contitech Air Bags Industrial Air Springs 3B12-301 Bellows 578933100

    Industrial Air Springs FT330-29 432 Contitech Air Bags Goodyear 3b12-301 Bellows 578933100

    CONTITECH FT 330-29 Cross others OEM


    Firestone: W01-358-8010

    Firestone: W01 3588010

    Firestone: W013588010

    Triangular spring: 4432
    Triangle spring: 4498
    Firestone: 8010
    Kangdi Technology: 34563
    Ridwell: 1003588010C
    UCF / Impex: AB-3B12-301
    TW release: AB8010
    Dallas Spring: AS8010
    Midland / Haldex: CS312301
    Euclid / Meritor (Meritor) aftermarket: E-FS8010
    Euclid / Meritor aftermarket: FS8010
    Conti Technology: FT330-29432

    ContiTech: FT330-29 432
    Ridwell: S5844C
    Leland: SC2119


    BELLOW NumbersCOMPLETE NO.COMPLETE Numbers
    AIRKRAFT 116008AIRKRAFT 115033AIRKRAFT 115027
    FIRESTONE FLEX 38R/38DCONTITECH FT 330-29 773CONTITECH FT 330-29 430
    FIRESTONE 095.0047FIRESTONE W01-358-8013FT 330-29 498
    GOODYEAR FLEX 556 3 3 8334GOODYEAR 3B12-305FT 330-29 503
    578 93 3 100AIRKRAFT 115035FT 330-29 702
    CONTITECH FT 330-29 432FIRESTONE W01 358 8006
    FIRESTONE W01-358-8010W01 358 8030
    GOODYEAR 3B12-301GOODYEAR 3B12-304

    3B8010 Technical Parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

    Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

    Screw Center Distance of Top Cover Plate : 157.5mm

    Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 157.5mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF


    Cover Plate

    Top Cover Plate Diameter: 231 mm

    Bottom Cover Plate Diameter: 231 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 330 mm

    Rubber Bellows Natural Diameter :300 mm

    The Working Stroke : MAX 460 mm to MIN 130 mm

    Maximum Height : 460 mm

    Minimum Height :130 mm

    Compression Height : 330 mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :Two Pieces of Girdle Hoop


    Technical performance parameter list of 3B8010 air spring:
    Bearing
    load
    Power
    (kg)
    Inflation pressure0.2MPa0.3MPa0.4MPa0.5MPa0.6MPa0.7MPa0.8MPa0.7MPa
    Volume(dm³)
    Installation height
    118(mm)17492572342042945144599368427.51
    182(mm)142121422865361243385083583012.45
    246(mm)119218142436308337304401502717.00
    312(mm)103516042156273033113892446820.50
    354(mm)83912981773225127453245374622.92
    375(mm)72711401580201824582921338623.52
    Stiffness and frequency at design heightVertical stiffness(Kg/cm)117156187228270306341
    Stiffness and frequency at design heightNatural frequency Hz1.691.561.481.451.431.401.38
    Stiffness and frequency at design heightNatural frequency cpm101948987868483

    Other kinds of Firestone that we produce:


    W01-358-6325 1T15T-1 752 255 MW01-358-0144 19-.75 750 178
    W01-358-7444 22-1.5 750 341W01-358-6384 22-1.5 750 341 M
    W01-358-0118 115 751 270W01-358-7526 313 750 876 M
    W01-358-6353 26 750 360 MW01-358-0147 138-1.5 751 305
    W01-358-7451 110 750 430W01-358-6387 26 750 370 M
    W01-358-0119 119 750 604W01-358-7530 312 750 870 M
    W01-358-6369 113-1 750 496 MW01-358-0150 113-1 750 498
    W01-358-7460 115 750 510W01-358-6400 224 750 865 M
    W01-358-0127 131 750 655W01-358-7531 28 750 380 M
    W01-358-6371 113-1 750 495 MW01-358-0201 201 751 310
    W01-358-0226 22 751 200W01-358-6800 21-2 750 240
    W01-358-6910 20 750 200W01-358-7532 29 750 400 M
    W01-358-7561 116 750 550W01-358-0205 203 751 320
    W01-358-0231 128 750 647W01-358-6810 233-2 750 867
    W01-358-6923 20 750 230W01-358-7534 39 750 428 M
    W01-358-7564 116 750 560W01-358-0207 207 751 330
    W01-358-0237 202 750 715W01-358-6811 233-2 750 869
    W01-358-6951 20-2 750 232W01-358-7535 333 751 022 M
    W01-358-7568 116 750 570W01-358-0213 21 751 190
    W01-358-0259 22-1.5 750 345W01-358-6896 19-.75 750 177

    Contitech Air Spring FT330-29 432 Goodyear 3b12-301 Industrial Air Springs 578933100

    Contitech Air Spring FT330-29 432 Goodyear 3b12-301 Industrial Air Springs 578933100
    Contitech Air Spring FT330-29 432 Goodyear 3b12-301 Industrial Air Springs 578933100
