    3H480312 Industrial Air Springs 0.7 MPa Air Helper Springs AIRSUSTECH

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949:2009
    Delivery Time : 3-8 Working Days
    Model Number : 3H480312
    • Product Details
    • Company Profile

    3H480312 Industrial Air Springs 0.7 MPa Air Helper Springs AIRSUSTECH

    Industrial Air Springs 3h480312 at 0.7 MPa Max Dia 510mm with Ring 20PCS Bolts for Large Machine ​

    Industrial Triple Convoluted Air Spring Specifications


    Description Assembly

    Description
    Assembly Order No.
    Style 480
    Ribbed neck aluminum bead rings (equal spacing), 20pcs M10 bolts, nuts, washers

    Manufacturer Part Number3H480312Bead ring Type4
    Maximum Diameter @ 7 Bar (mm)510Dim# C (Bolt Circle Diameter mm)438
    Maximum Height (mm)378# of Bolts (each ring)32
    Maximum Stroke (mm)256Design Height (mm)381
    Minimum Usable Height (mm)2243 Bar (kN)78.5
    25 mm (kN)5 Bar (kN)132.9
    50% of Max Stroke (kN)7 Bar (kN)187.9
    Maximum Stroke (kN)Natural Frequency (@5 Bar)(fn(Hz)1.2
    Applicable Technigram?7 Hz97
    MaterialOne-Ply,13 Hz99.3
    25 Hz99.8

    Flange connection type of air spring model comparison table
    AIRSUSTECH NO.Contitech NO.AIRSUSTECH NO.Contitech NO.
    FS22-3DICRFS 22-3 DI CRFS960-12RSFS 960-12 RS
    FS44-5DICRFS 44-5 DI CRFS1330-11RSFS 1330-11 RS
    FS76-7DICRFS 76-7 DI CRFS1710-12RSFS 1710-12 RS
    FS76-7DSCRFS 76-7 DS CRFS2870-16RSFS 2870-16 RS
    FS138-8DSFS 138-8 DSFS5450-16RSFS 5450-16 RS
    FS210-10DSFS 210-10 DSFD960-22RSFD 960-22 RS
    FS412-10DSFS 412-10 DSFD1120-30RIFD 1120-30 RI
    FS614-13DSFS 614-13 DSFD1330-25RSFD 1330-25 RS
    FS816-15DSFS 816-15 DSFD1710-25RSFD 1710-25 RS
    FD22-4DICRFD 22-4 DI CRFD1730-40RIFD 1730-40 RI
    FD44-10DICRFD 44-10 DI CRFD2380-24RSFD 2380-24 RS
    FD76-14DICRFD 76-14 DI CRFD2470-40RIFD 2470-40 RI
    FD76-14DSCRFD 76-14 DS CRFD2870-30RSFD 2870-30 RS
    FD138-18DSFD 138-18 DSFD5450-28RSFD 5450-28 RS
    FD209-21DSFD 209-21 DSFT960-34RSFT 960-34 RS
    FD210-22DSFD 210-22 DSFT1330-35RSFT 1330-35 RS
    FD412-18DSFD 412-18 DSFT1710-38RSFT 1710-38 RS
    FD614-26DSFD 614-26 DSFT2870-45RSFT 2870-45 RS
    FD816-30DSFD 816-30 DSFT5450-44RSFT 5450-44 RS
    FT22-6DICRFT 22-6 DI CR
    FT44-15DICRFT 44-15 DI CR
    FT76-20DICRFT 76-20 DI CR
    FT76-20DSCRFT 76-20 DS CR
    FT138-26DSFT 138-26 DS
    FT210-32DSFT 210-32 DS
    FT412-32DSFT 412-32 DS
    FT614-36DSFT 614-36 DS
    FT816-40DSFT 816-40 DS

    3H480312 Industrial Air Springs 0.7 MPa Air Helper Springs AIRSUSTECH

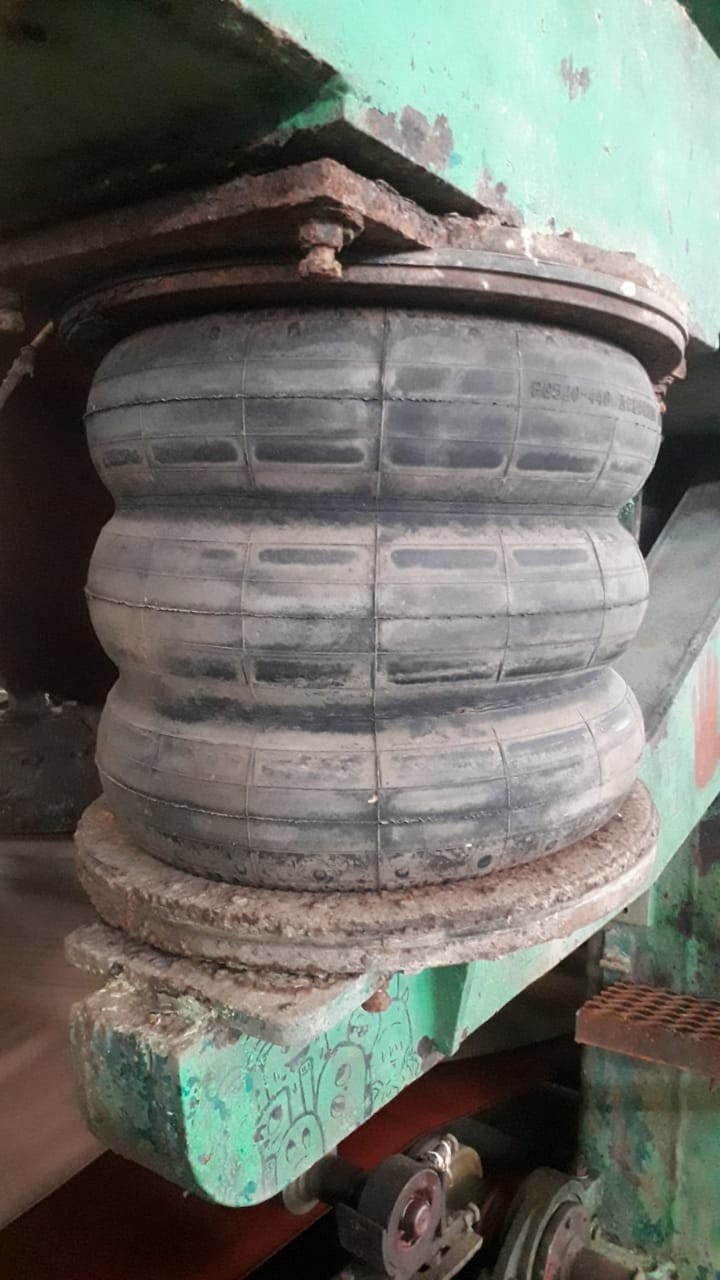

    Industrial Air Spring 3h480312 at 0.7 MPa Max Dia 510mm with Ring 20PCS Bolts for Large Machine


    Industrial Air Spring 3h480312 at 0.7 MPa Max Dia 510mm with Ring 20PCS Bolts for Large Machine


    AIRSUSTECH Model numberBearing capacityDesign itineraryMinimum compressionSafe elongationFull trip
    255322H-3118400282
    680376H-319339314122436314
    630376H-315612314122436314
    580306H-314409236118354236
    520312H-311262238122360238
    480312H-39768238122360238
    430370H-36333308122430308
    400312H-36308238122360238
    380316H-35235248122370248
    360306H-34570238122360238
    330306H-33892234120354234
    310306H-33170234120354234
    255230H-32070148116264148
    250260H-31924183116299183
    200206H-3888120116236120
