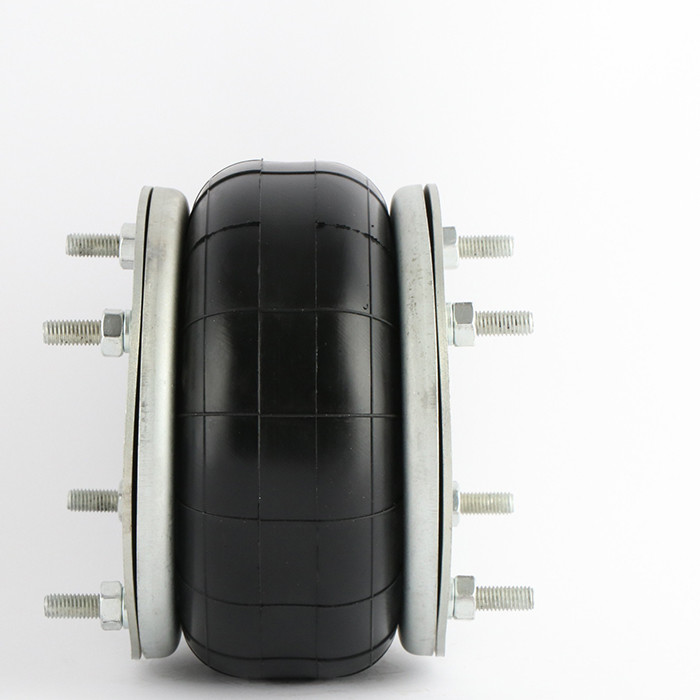

8X1 Rubber Air Spring Dunlop SP 1218 Replaces Firestone Bellows W01-R58-4085

AIRSUSTECH 8X1 refer to 8’’x1 Dunlop product description:

The air spring shock absorber AIRSUSTECH 8X1 refer to 8’’x1 Dunlop can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 8X1 refer to 8’’x1 Dunlop to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 8X1 refer to 8’’x1 Dunlop must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 8X1 refer to 8’’x1 Dunlop , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 8X1 refer to 8’’x1 Dunlop shall not be in contact with other parts

AIRSUSTECH 8X1 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH Part Number:8X1

Firestone : W01-R58-4085

AIRSUSTECH 8X1 Technical data

❶Nut/blind nut
Top plate screw (nut) teeth: 2XM8x1.25

The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2XM8x1.25
The screw center distance of the bottom cover plate: 70 mm
❷Air hole/air inlet/air fittings
Air hole/air inlet: 3 / 4-18NPTF
The screw center distance between the air hole and the nut: 35 mm
❸Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 215 mm
Natural diameter of rubber bellows: 190 mm
Working stroke: minimum 50 mm to maximum 115 mm
Maximum height: 115 mm
Minimum height: 50 mm
Stroke height: 90mm
❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
With belt loop: not a belt loop

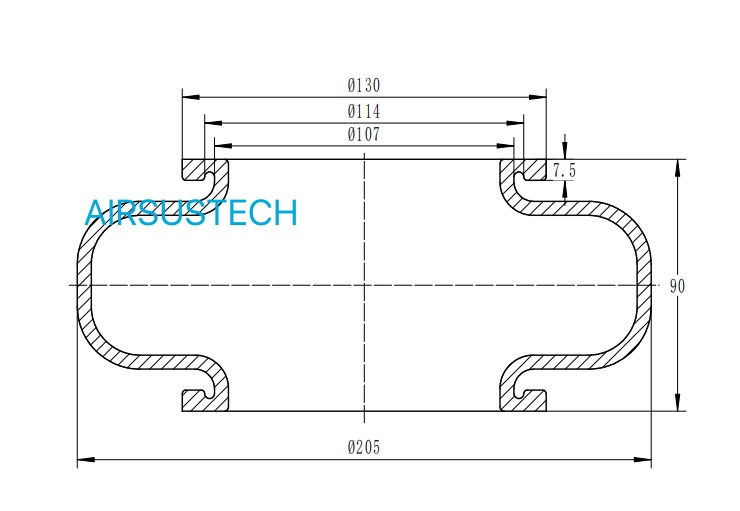

The drawing of the rubber bellows:8X1
