AIRSUSTECH G3005 Cross others OEM

Manufacturer :AIRSUSTECH

Manufacturer Part Number :AIRSUSTECH G3005

Firestone Bellows Number :1M1A

Firestone Part Number :W02-358-3005

Firestone Part Number :W02 358 3005

Firestone Part Number :W023583005

Firestone Part Number :WO2-358-3005

Firestone Part Number :WO2 358 3005

Firestone Part Number :WO23583005

Why use AIRSUSTECH G3005 Replaces Firestone WO2-358-3005 actuator (instead of air or hydraulic cylinder) for vibration isolation?

low cost

Generally, the initial cost is half or less of a conventional pneumatic cylinder or hydraulic cylinder with the same force. The initial cost advantage is the larger size.

Wide range

The diameter of AIRSUSTECH G3005 Replaces Firestone WO2-358-3005 actuator ranges from 2.2 inches to 37 inches.

The strength capacity is 100,000 pounds. The stroke can reach 14 inches.

Durable

AIRSUSTECH G3005 Replaces Firestone WO2-358-3005 actuator is a further application of Firestone’s proven AIRSUSTECH G3005 Replaces Firestone WO2-358-3005 spring for

Suspension of trucks and buses. Long life and durability needed for millions of miles

The use of heavy-duty suspensions under adverse environmental conditions is also an important factor in mechanical design.

No maintenance or lubrication required

No inner rod or piston

AIRSUSTECH G3005 Replaces Firestone WO2-358-3005 stroke actuators do not have traditional internal rods, pistons or sliding seals

Gas cylinder. This allows the stroke actuator to be designed for dirty or oily applications.

Coarse sand will destroy the seal on a conventional cylinder.

No friction, immediate response

Since the actuator does not have a sliding seal, it will not look like

Angle ability

Airstrikes have a unique ability to make strokes through arcs without a U-shaped clip.

Angular movement up to 30 degrees


AIRSUSTECH G3005 Technical Parameters

Nut/blind nut

Top plate screw (nut) tooth: 1pcX5 / 16-18unc
Screw center distance of top cover plate: middle
Screw (nut) teeth of the bottom cover plate: 1pcX5 / 8-11unc
Screw center distance of bottom cover plate: middle

Air holes/air inlets/air fittings
Air hole/air inlet: 1/8 N P.T.F. / 1 / 4NPTF

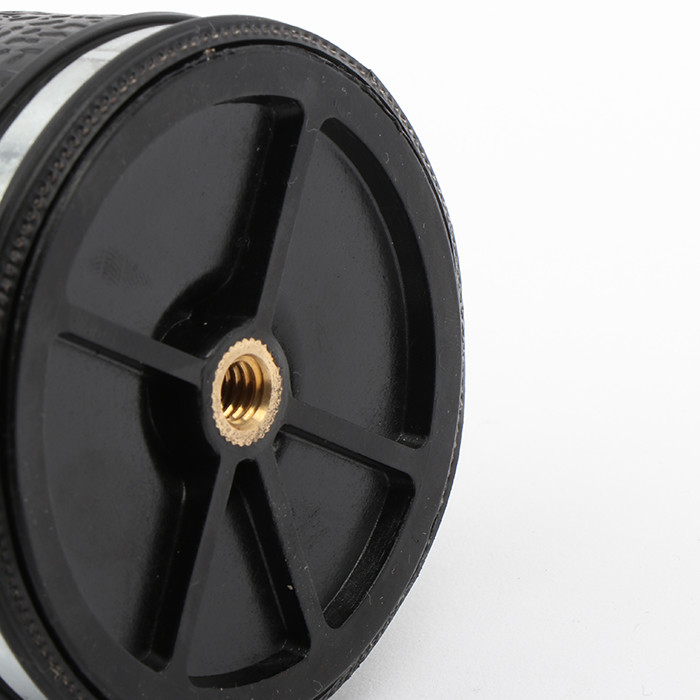

Cover plate
Top plate diameter: 74.5 mm
Diameter of the bottom cover: 61.2 mm

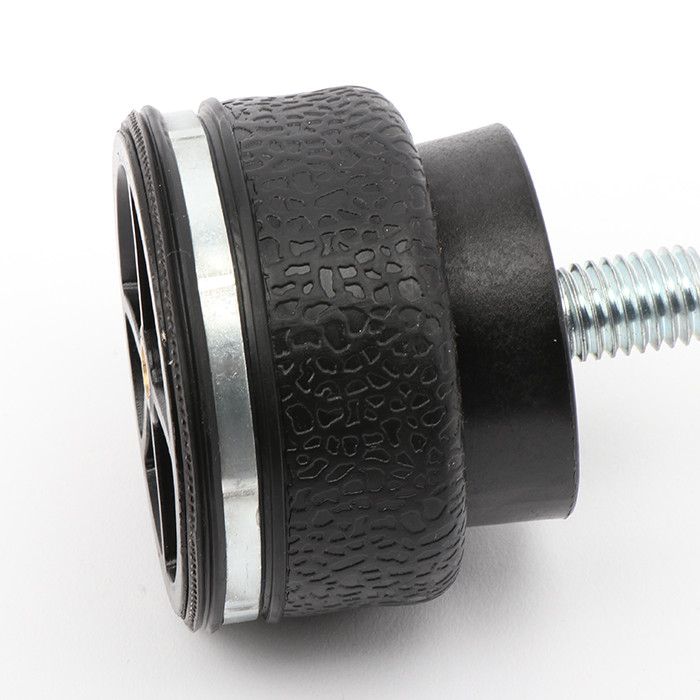

Rubber bellows
Maximum diameter of rubber bellows: 91.5 mm
Natural diameter of rubber bellows: 80 mm
Working stroke: maximum 91 mm to minimum 38 mm
Maximum height: 91 mm
Minimum height: 38 mm
Compressed height: 53 mm

Bumper block/bumper block
No bumper block

Belt loop/Belt loop
With belt loop: Without belt loop
