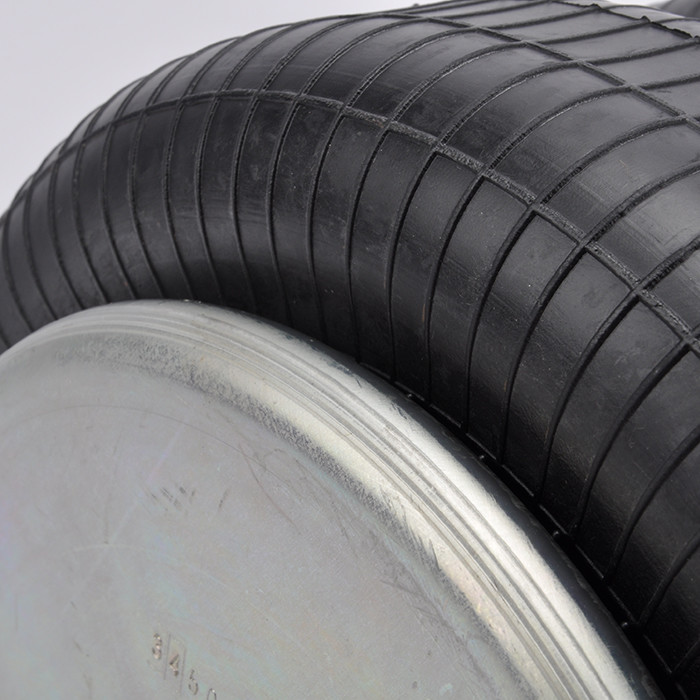

    W01-358-7444 Firestone Air Bags Double Bellow 0.2Mpa Ride Right Airbags

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7444
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    W01-358-7444 Firestone Air Bags Double Bellow 0.2Mpa Ride Right Airbags

    W01-358-7444 Firestone Air Bags Double Air Bellows Style 22-1.5 Design Height 10.5 in.


    AIRSUSTECH 2B 7444 Specifications replaces W01-358-7444:


    2B-320 Rubber bellow only


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 157.5 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 157.5 mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4NPTF / 3/4NPTF / Rp1/4

    Rp1/4(Air inlet is in the center)

    1/4NPT ( air inlet 73mm)

    1/4NPT(Air inlet is in the center)

    3/4NPT ( air inlet 73mm)

    Cover Plate

    Top Cover Plate Diameter (Width): 210 mm

    Bottom Cover Plate Diameter (Width): 210 mm

    Rubber Bellows

    Rubber Bellows Natural Diameter : 300 mm

    Rubber Bellows Natural Height : 241 mm

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Compressed height
    3.03"
    Maximum expansion height
    14.2"
    The maximum diameter
    13.4"
    Maximum inflation pressure
    120 psi
    Maximum stroke
    11.17 inches
    Inlet type
    Imperial
    Air inlet
    1/4"
    series
    C
    lowest temperature
    -76°F
    Maximum temperature
    158°F
    Bellows type
    Double convolution
    weight
    11.2 pounds


    BELLOW NumberCOMPLETE NumberCOMPLETE Number

    FIRESTONE W01 358 0259DUNLOP (FR) S12280DUNLOP (FR) S12280

    FIRESTONE 22-1,5

    FIRESTONE 2095.0092

    FIRESTONE W01 358 7440FIRESTONE W01-358-7443
    GOODYEAR FLEX 556 2 3 8328GOODYEAR 2B12-305GOODYEAR 2B12-305
    GOODYEAR 578 92 3 310AIRKRAFT 113311AIRKRAF T 113493
    AIRKRAFT 114302
     FIRESTONE FLEX 22-1,5FIRESTONE W01-358-7442
     FIRESTONE W01-358-7444GOODYEAR 2B12-419
     GOODYEAR 2B12-416AIRKRAFT 113494
     AIRKRAFT 113316

    AIRSUSTECH 2B 7444 Other cross OEM:replaces W01-358-7444:


    AIRSUSTECH Supplier :2B 7444

    Firestone Trimmed: w01-358-7444

    Air Spring Supplier: ContiTech
    Competitor / Supplier Number: FD330-30369

    Air Spring Supplier: Goodyear
    Reference: 578923315
    Competitor / Supplier Number: 2B12-416

    Air Spring Supplier: Goodyear
    Reference: 578923310
    Competitor / Supplier Number: 2B12-446

    Air Spring Supplier: Triangle
    Reference: 6328
    Competitor / Supplier Number: 4369

    Suspension of supplier: Hendrickson
    FSIP OEM: W01-455-7444

    Suspension of suppliers: Hendrickson Trailer
    Competitor / Supplier Number: S9830

    Suspended supplier: Ridewell
    Competitor / Supplier Number: 1003587444C


    Firestone air springs:


    DescriptionAssembly Order No.
    Firestone Style 22-1.5Blind nuts, 1/4 NPTFirestone W01-358-7444
    Blind nuts, 1/4 NPT, rubber bumperFirestone W01-358-7473
    Blind nuts, 3/4 NPTFirestone W01-358-7442
    Two Ply Bellows
    Blind nuts, 1/4 NPT(centered)Firestone W01-358-7443
    Rubber bellows onlyFirestone W01-358-0259
    Countersunk steel bead rings, 1 5/8 bolts, nuts, washersFirestone W01-358-7480
    Assembly weight...................................................... 12.9 lbs.
    Force to collapse to minimum height (@ 0 PSIG) ..... 26 lbs.
