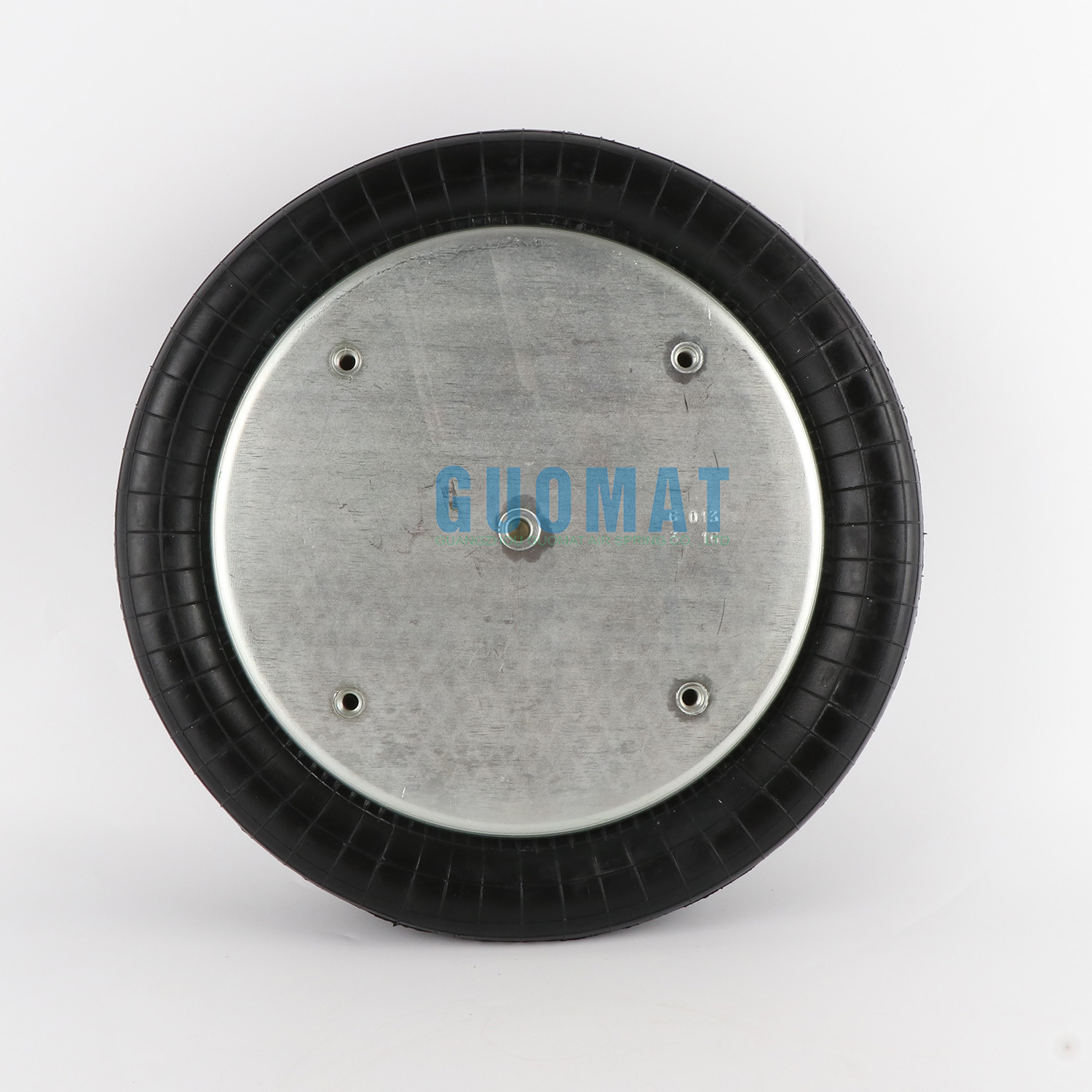

    W01-358-6801 Firestone Ride Right 21-2 Air Helper Spring 0.8Mpa

    Ask Lasest Price
    Brand Name : AIRSUSTECH Or Neutral
    Model Number : 2B6801
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    W01-358-6801 Firestone Ride Right 21-2 Air Helper Spring 0.8Mpa

    W01-358-6801 Firestone Air Bags With Rubber Bumper Style 21-2 Assembly 17.6 lbs


    AIRSUSTECH 2B6801Cross OEM


    AIRSUSTECH Parts NO.:2B6801

    Goodyear Parts NO.:2B14-365 ;
    Goodyear Parts NO.:2B14 365;
    Goodyear Parts NO.:2B14365
    Goodyear Parts NO.:2B14-361,
    Goodyear Parts NO.:2B14 361,
    Goodyear Parts NO.:2B14361,
    Goodyear Parts NO.:2B14-452,
    Goodyear Parts NO.:2B14 452,
    Goodyear Parts NO.:2B14452,
    Goodyear Parts NO.:2B15-376,
    Goodyear Parts NO.:2B15 376,
    Goodyear Parts NO.:2B15376
    Firestone Parts NO.:W01-358-6801

    Firestone Parts NO.::W01 358 6801

    Firestone Parts NO.::W013586801
    Firestone:21D-2
    Firestone:21-2
    Firestone:21 2

    ContiTech Parts NO:FD530-30 451 1/4 NPT

    ContiTech Parts NO::FD530-30451 1/4 NPT


    AIRSUSTECH 2B6801Specifications:


    Nut / Blind Nut
    Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
    Screw Center Distance of Top Cover Plate : 159 mm
    Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
    Screw Center Distance of Bottom Cover Plate : 159 mm

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : 1/4NPT
    Center Distance Between Nut and Air inlet: 79.5 mm

    Cover Plate
    Top Cover Plate Diameter (Width): 287 mm
    Bottom Cover Plate Diameter (Width): 287 mm

    Rubber Bellows
    Rubber Bellows MAX Diameter : 401 mm
    Compressed Height: 76.2mm / 3 inches
    Maximum Height: 351 mm
    Working Stroke : 254mm

    Bumper block / Buffer block
    WithBumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :One Pieces of Girdle Hoop

    Compressed Height: 3.00 inches
    Top Plate Number:3131 or 3134
    Top Plate Width:11.31 inches
    Piston Number:3130
    Piston Width:11.31 inches
    Firestone Bellows Number:21-2


    Air Spring Supplier:Firestone: w013586801

    Competitor/supplier ID:w013586801

    Air Spring Supplier: ContiTech

    Reference: 161373

    Competitor/supplier ID: FD53030451


    Air spring supplier: Goodyear

    Competitor/supplier number: 2B14361


    Air spring supplier: Goodyear

    Reference: 578923356

    Competitor/supplier number: 2B14365


    Air spring supplier: Goodyear

    Competitor/supplier number: 2B14452


    Air spring supplier: Goodyear

    Competitor/supplier number: 2B15376


    Air Spring Supplier: Triangle

    Reference: 6336

    Competitor/supplier ID: 4451


    Suspended supplier: Arvin Meritor

    Competitor/supplier number: 201377


    Air Spring Supplier: Dayton Parts

    Competitor/supplier ID: 3546801


    Suspension supplier: EZ Ride

    Competitor/supplier ID: 8030160


    Suspension supplier: EZ Ride

    Competitor/supplier ID: 8030160


    Suspension supplier: Hendrickson

    FSIP OEM: W014556801


    Suspension Supplier: Hendrickson Trailer

    Competitor/supplier number: S2734


    Suspension supplier: Hendrickson Trailer

    Suspension number: CL

    Suspension supplier: Leland

    Competitor/supplier number: SC2079


    Suspended supplier: Navistar

    Competitor/supplier number: 1685183C1


    Suspended supplier: SAF Netherlands

    Competitor/supplier ID: 57006801


    Suspension supplier: Ridewell

    Competitor/supplier ID: 1003586801C


    Suspension supplier: Watson & Chalin

    Competitor/supplier ID: AS0021



    Maximum diameter @ 100 PSIG (inches)Bead type
    162
    Maximum height (inches)Blind nut center (inch)
    11.76.25
    Maximum travel (inches)Air isolator
    8.7Design height
    Minimum available height (inches)10.5
    3Load (at design height): 40 psig (pounds)
    80PSI force (lb) at 1 inch stroke3460
    11330Load (at design height): 60 psig (pounds)
    80PSI force (lb) at 3 inches stroke5350
    10670Load (at design height): 80 psig (pounds)
    Maximum thrust at maximum stroke @ 80PSI (lbs)7280
    5850Natural frequency (@ 80 psig) (cpm)
    material95
    2 layer standard lineIsolation percentage at a forced frequency of 400 CPM
    Finishing details94.1
    Isolation percentage at a forced frequency of 800 CPM
    98.6


    Description

    Assembly Order No.

    Style 21-2

    Two Ply Bellows

    Blind nuts, 1/4 NPT

    W01-358-6800

    Blind nuts, 1/4 NPT, rubber bumper

    W01-358-6801

    Blind nuts, 3/4 NPT

    W01-358-9529

    Countersunk steel bead rings, 1 7/8 bolts, nuts, washers

    W01-358-9531

    Assembly weight....................................................... 17.6 lbs

    Force to collapse to minimum height (@ 0 PSIG) ..... 35 lbs.
