    W013587545 Firestone Air Bags FD331-26514 Helper Bags AIRSUSTECH

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B12345
    • Product Details
    • Company Profile

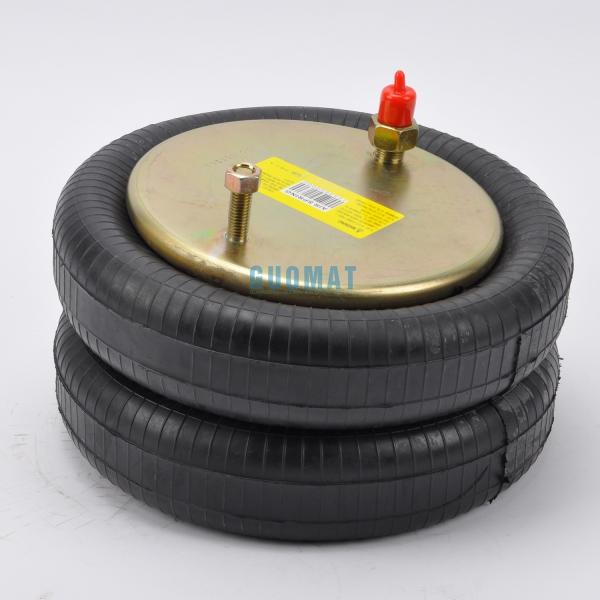

    W013587545 Firestone Air Bags FD331-26514 Helper Bags AIRSUSTECH

    Firestone Air Bags W013587545 Spring Fd 331-26 514 Contitech for Hanging Vibrating Screen

    OEM Reference:

    GUOMAT NO. 2B12345
    Air Spring 7545 AS-0087-1F 4514
    Goodyear#: 2B12-345; 2B12 345; 2B12345
    Corrugation type: double
    Automann Bellow#: SP2B22RB
    Firestone Bellow#: 228C-1.5 is 228-1.5
    Goodyear Bellow#:578-92-3-315;578 92 3 315;578923315
    Contitech Bellow#: FD 331-26;FD 331 26;FD 33126
    Triangle Bellow#:N / A.
    Base plate / Pison type:
    Number of roof holes/studs: 2
    Roof diameter: 9 inches
    Top plate C to C diameter: 6.2 inches
    Bottom hole stud Qyt: 2
    Base plate diameter: 9 inches
    Base plate C to C diameter: 6.2 inches
    Backplane section#:
    Base plate alignment: 90 degrees
    Bumper: Yes
    bracket:
    Minimum height: 3.8 inches
    Maximum height: 14.4 inches

    Manufacturer Cross OEM ReferenceOther Cross OEM Reference
    Firestone : W01-358-7545 / W01 358 7545 / W013587545Triangle Part Number:4514
    Firestone Bellows Number:228-1.5 / 228C-1.5Triangle Bellows Number:6375
    Firestone Top Plate Number:3271Hendrickson Auxiliary : 001796
    Firestone Piston Number:3183(Paralift Ultra/High Lift) - Lift bag
    Contitech : FD 331-26 514Watson&Chalin : AS-0087-1F / AS-0109
    Contitech Bellows#: FD 331-26, 64284
    Goodyear : 2B12-345 / 2B12 345 / 2B12345
    GoodYear Bellows#: 578-92-3-315 / 578 92 3 315 / 578923315

    Compressed Height: 3.60 inches
    Top Plate Number:3271
    Top Plate Width:9.00 inches
    Piston Number:3183
    Piston Width:9.00 inches
    Firestone Bellows Number:228-1.5
    Hendrickson Auxiliary Number:001796
    Triangle Part Number:4514
    Triangle Bellows Number:6375
    Watson & Chalin #:AS-0087-1F
    Note:(Paralift Ultra/High Lift)-lift bag


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC

    Top Cover Plate Combination Nut : 3/4-16UNF

    Screw Center Distance of Top Cover Plate : 157 mm / 6.2 inches

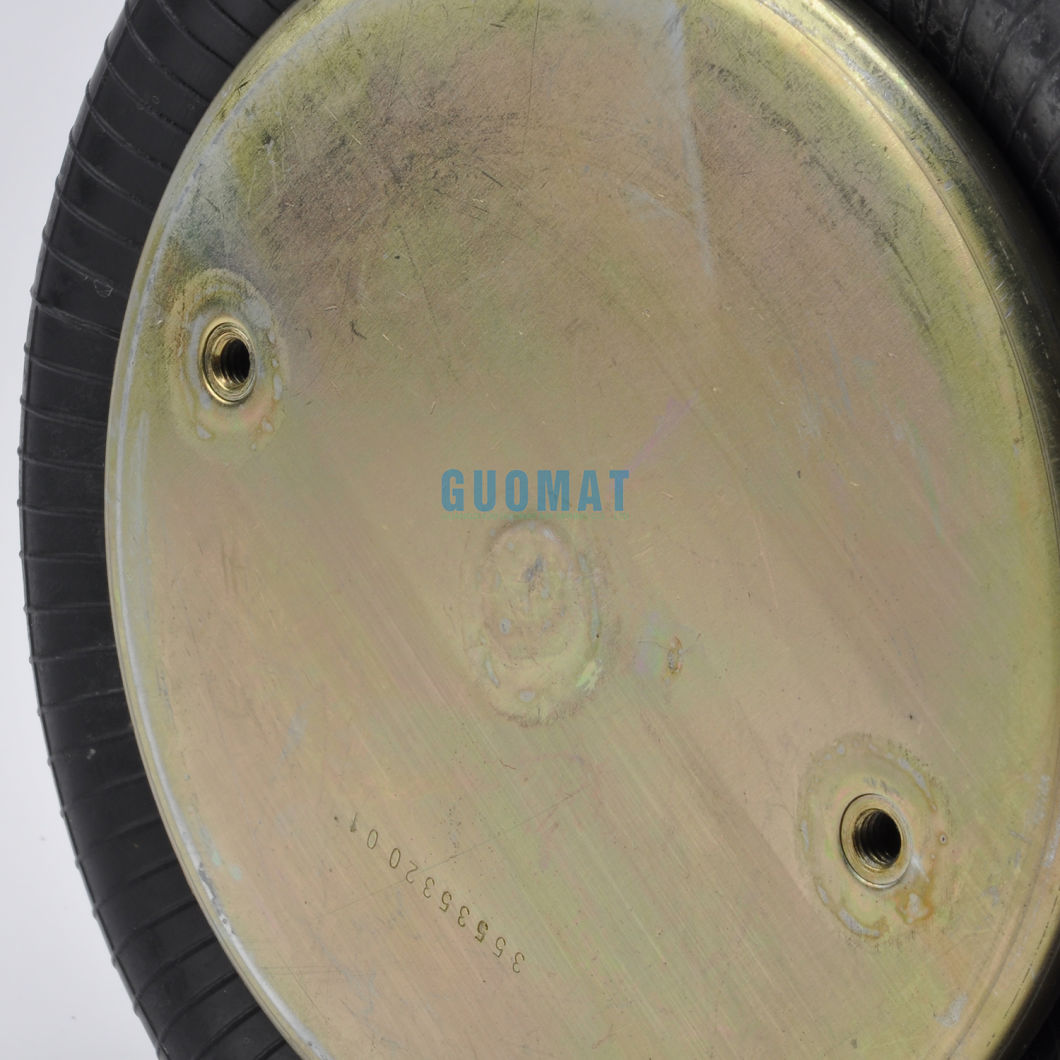

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4NPT , Combination Stud/Air Inlet Stud


    Cover Plate

    Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

    Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches


    Rubber Bellows

    Rubber Bellows MAX Diameter : 343 mm / 9.7 inches

    Compressed Height: 104 mm / 4.1 inches

    Maximum Height: 363mm / 14.3 inches

    Working Stroke : 259 mm / 10.2 inches


    Bumper block / Buffer block

    With Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    2B12345 GUOMAT air spring. GUOMAT Air Springs offers new high productivity and long life for your trucks, trailers and buses. Bellow Air Springs offers a constant level of transportation and trouble-free service.

    The 2B12345 GUOMAT airbag protects cargo and provides horizontal transport and long-term service. Bellows air springs provide a quiet, cushioned ride and they are more durable than steel springs because of the low vibration. The driver is more comfortable, reduces fatigue and stays alert. Plus the cargo can better prevent shock and vibration.


    The drawing and data of GUOMAT 2B12345 air spring:

    W013587545 Firestone Air Spring Fd 331-26 514 Contitech Air Spring Shocks for Watson&Chalin as-0109

    W013587545 Firestone Air Spring Fd 331-26 514 Contitech Air Spring Shocks for Watson&Chalin as-0109

    W013587545 Firestone Air Spring Fd 331-26 514 Contitech Air Spring Shocks for Watson&Chalin as-0109
    W013587545 Firestone Air Spring Fd 331-26 514 Contitech Air Spring Shocks for Watson&Chalin as-0109
