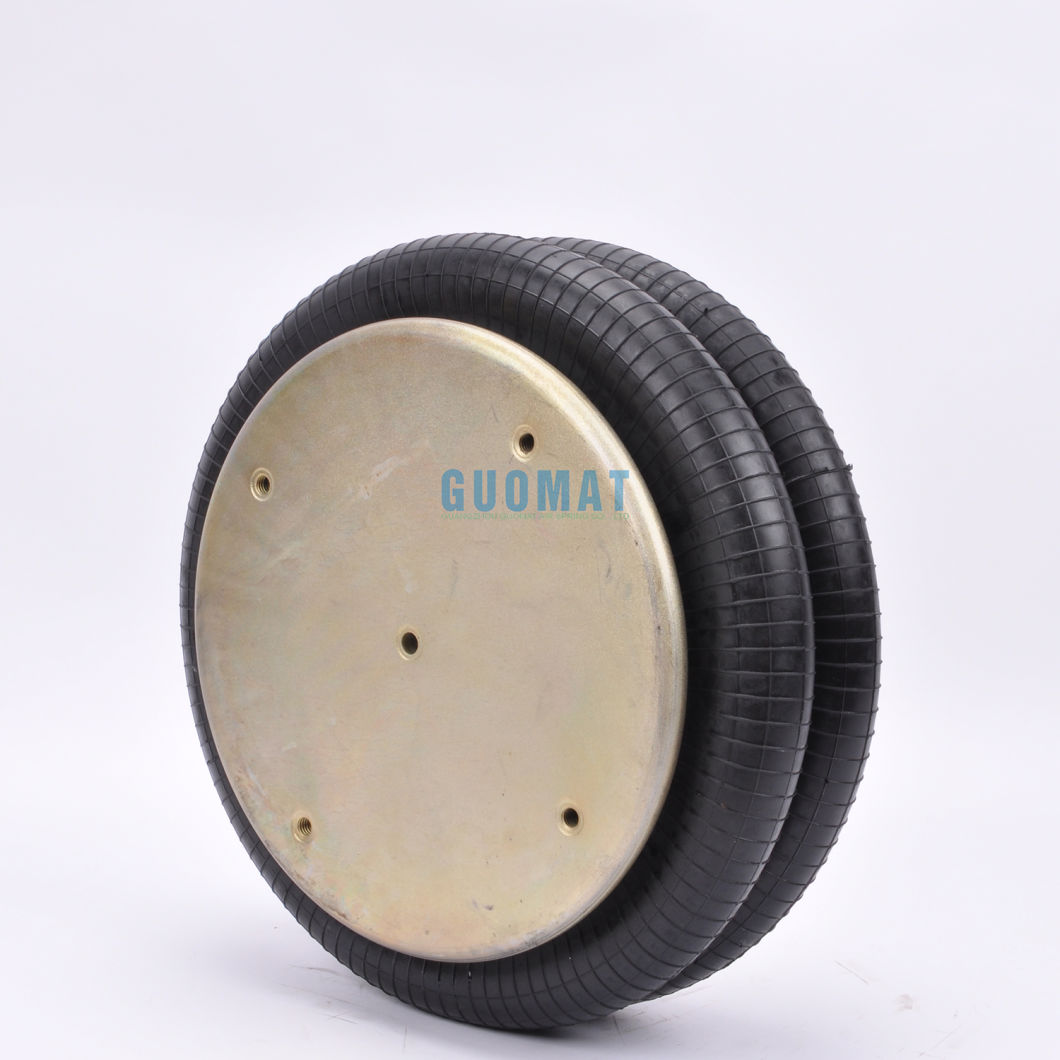

    W01-358-7135 Firestone Air Bags Leveling 2B14-360 315mm Plate Dia

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B7135
    • Product Details
    • Company Profile

    W01-358-7135 Firestone Air Bags Leveling 2B14-360 315mm Plate Dia

    W01-358-7135 Firestone Air Bags Spring Bellows 21t2 Goodyear 2b14-360 Flex 556228554

    2B7135 OEM Original Equipment Manufacturer:

    GUOMAT NO.:2B53022

    Contitech No:FD530-22 311
    Contitech No:FD530 22 311
    FIRESTONE:21T2 W01-358-7135
    FIRESTONE:21T2 W01 358 7135
    FIRESTONE:21T2 W013587135
    GOODYEAR:2B14-360
    GOODYEAR:2B14360
    GOODYEAR:2B14 360
    GOODYEAR::556 22 8 554
    GOODYEAR::556-22-8-554
    GOODYEAR::556228554
    Technical Parameters of 2B7135

    Nut / Blind Nut
    Top Cover Plate Screw (Nut) Tooth : 4 pcs X M10X1.75
    Screw Center Distance of Top Cover Plate : 159 mm
    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.75
    Screw Center Distance of Bottom Cover Plate : 159 mm
    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : 3/4NPT , Combination Stud/Air Inlet Stud
    Cover Plate
    Top Cover Plate Diameter (Width): 315 mm
    Bottom Cover Plate Diameter (Width): 315 mm
    Rubber Bellows
    Rubber Bellows MAX Diameter : 395 mm
    Maximum Height: 300 mm
    Working Stroke : 90 mm
    Bumper block / Buffer block
    With Bumper Block
    Girdle Hoop / Girdle Ring
    With Girdle Hoop :One Pieces of Girdle Hoop

    Type
    Order No.
    Rubber bellows only
    60406
    with crimped plates, G1/4 air inlet
    A = 79.4 mm excentrical
    61362
    with crimped plates, G3/4 air inlet
    A = 79.4 mm excentrical
    66512
    with crimped plates, G1 air inlet
    A = 79.4 mm excentrical
    2682075000

    Overall weight 6.9 kg

    Vibration isolation - dynamic characteristic values
    Design height H: recommended 250mm, minimum 225mm

    Pressure p [bar]

    3

    4

    5

    6

    7

    8

    Vol. V [l]

    Force (Load) [kN]

    15.2

    20.7

    25.8

    31.5

    36.8

    42

    Spring rate [N/mm]

    222.5

    286

    349.5

    413

    476.5

    540

    19

    Natural frequency [Hz]

    1.9

    1.8

    1.8

    1.8

    1.8

    1.7


    Pneumatic application - static characteristic values
    Force F [kN]

    Pressure p [bar]

    3

    4

    5

    6

    7

    8

    Vol. V [l]

    Height H [mm]

    260

    14.1

    19.3

    24.1

    29.5

    34.5

    39.4

    20

    220

    18.2

    24.4

    30.5

    37

    43.2

    49.1

    17

    180

    21

    28.2

    35.3

    42.6

    49.7

    56.8

    14

    140

    23.1

    31

    38.7

    46.5

    54.3

    61.9

    11

    100

    24.4

    32.3

    40.4

    48.7

    56.8

    64.7

    7.2



    The features of AIRSUSTECH 1B7135 replace Firestone W01-358-7725:

    Durability
    The empty trip AIRSUSTECH 1B7135 replaces Firestone W01-358-7135, and its quality is the same as AIRSUSTECH's legendary AIRSUSTECH truck and bus suspension springs. The use of heavy-duty suspension requires agility of millions of kilometers and can withstand harsh environmental conditions and other harsh conditions.

    A wide range of
    The diameter of the idle stroke AIRSUSTECH 1B7135 replaces Firestone W01-358-7725, ranging from 55mm to 700mm. The capacity is 100,000 pounds. The maximum stroke can reach 355mm.

    No internal rods, pistons or sliding seals
    In AIRSUSTECH, AIRSUSTECH 1B7135 replaces Firestone W01-358-7135, without internal rods, pistons or sliding seals like many conventional cylinders, which makes AIRSUSTECH in applications where dirt or grit will erode conventional cylinder seals Advantages.

    Frictionless
    In the absence of a sliding seal, AIRSUSTECH AIRSUSTECH 1B7135 replaces Firestone W01-358-7135 without friction.

    flexible
    The empty stroke AIRSUSTECH 1B7135 replaces Firestone W01-358-7135 and can be used in combination with a variety of media (liquid or gas).

    Angle ability
    Without the clevis, the stroke through the arc may produce angular movements of up to 30 degrees.

    Side load capacity
    In some cases, free travel AIRSUSTECH 1B7135 replaces Firestone W01-358-7725 without being affected by side loads. This eliminates the possibility of rod bending, nicks and excessive seal wear that are common when using traditional cylinders.

    Firestone W013587135 Air Spring Bellows 21t2 Goodyear Air Spring 2b14-360 Flex 556228554
    Firestone W013587135 Air Spring Bellows 21t2 Goodyear Air Spring 2b14-360 Flex 556228554
    Firestone W013587135 Air Spring Bellows 21t2 Goodyear Air Spring 2b14-360 Flex 556228554
