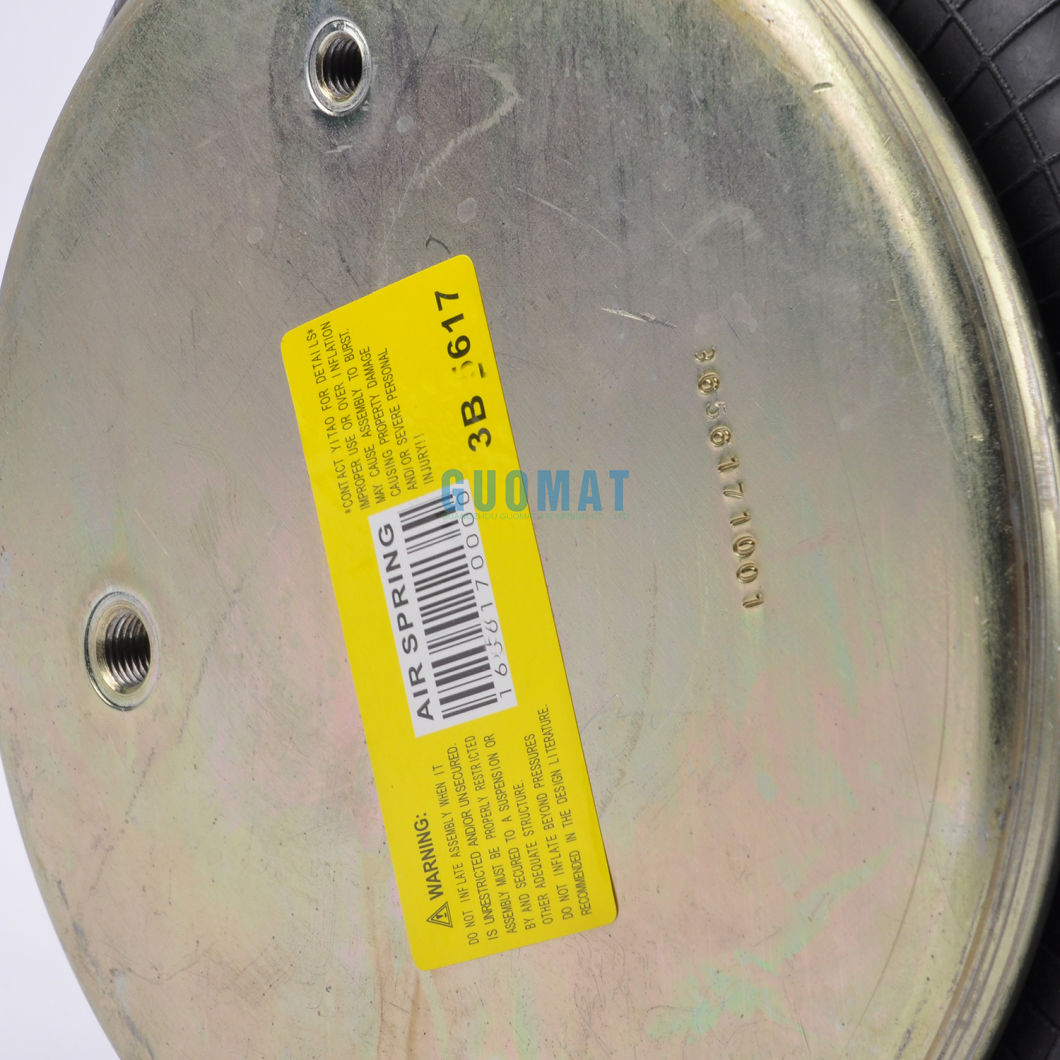

    3B-300 Convoluted Air Spring Replacement 3B-6617 AIRSUSTECH Suspension

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 3B6617
    • Product Details
    • Company Profile

    3B-300 Convoluted Air Spring Replacement 3B-6617 AIRSUSTECH Suspension

    Suspension Air Springs Rubber Bellow No. 3B-300 Industrial M10 Screw AIRSUSTECH No. 3b6617

    3B6617 Technical Parameters

    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2pcsXM10-1.5

    Screw Center Distance of Top Cover Plate : 157.5mm

    Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM10-1.5

    Screw Center Distance of Bottom Cover Plate : 157.5mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

    Cover Plate

    Top Cover Plate Diameter: 231 mm

    Bottom Cover Plate Diameter: 231 mm

    Rubber Bellows

    Rubber Bellows MAX Diameter: 330 mm

    Rubber Bellows Natural Diameter :300 mm

    The Working Stroke : MAX 460 mm to MIN 130 mm

    Maximum Height : 460 mm

    Minimum Height :130 mm

    Compression Height : 330 mm

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :Two Pieces of Girdle Hoop

    CONTITECH FT 330-29 Cross others OEM

    BELLOW Numbers COMPLETE NO. COMPLETE Numbers
    AIRKRAFT 116008 AIRKRAFT 115033 AIRKRAFT 115027
    FIRESTONE FLEX 38R/38D CONTITECH FT 330-29 773 CONTITECH FT 330-29 430
    FIRESTONE 095.0047 FIRESTONE W01-358-8013 FT 330-29 498
    GOODYEAR FLEX 556 3 3 8334 GOODYEAR 3B12-305 FT 330-29 503
    578 93 3 100 AIRKRAFT 115035 FT 330-29 702
    CONTITECH FT 330-29 432 FIRESTONE W01 358 8006
    FIRESTONE W01-358-8010 W01 358 8030
    GOODYEAR 3B12-301 GOODYEAR 3B12-304

    Firestone Flex Number Piston Top Plate Bottom Plate Top Plate Dia Bot Plate Dia Collapsed Hght Comments
    Flex Number Piston 2345 245
    W01-358-7274 323C 3476 5 4 16.50 16.50 5.00
    W01-358-7276 320C 3474 5 4 19.00 19.00 5.00
    W01-358-7286 312C 3472 5 4 13.79 13.79 5.00
    W01-358-7304 321C 4311 25.13 25.13 4.30
    W01-358-7761 312C 4299 15.13 15.13 4.30
    W01-358-7796 313D 3122 2 4 11.31 11.31 6.40 3B14-367
    W01-358-7797 313D 3389 2 4 11.31 11.31 4.60
    W01-358-7798 313D 3130 4 5 11.31 11.31 4.80 3B14-356
    W01-358-7800 313D 3122 5 4 11.31 11.31 4.00 3B14-360
    W01-358-7808 313D 3130 5 4 11.31 11.31 4.00 3B14-350 3B14-354
    W01-358-7816 39D 3122 4 5 11.31 11.31 4.80
    W01-358-7818 313C 3122 5 4 11.31 11.31 4.80 3B14-359
    W01-358-7838 333C 3130 5 4 11.31 11.31 4.80
    W01-358-7839 333C 3316 5 4 11.20 11.20 4.75 3B14-444
    W01-358-7843 333C 3122 2 4 11.31 11.31 4.80 3B14-364 3B14-457
    W01-358-7844 333C 3167 2 4 11.31 11.31 4.20
    W01-358-7845 333C 3130 5 4 11.31 11.31 4.00 3B14-450
    W01-358-7846 333C 3122 2 4 11.31 11.31 4.80 3B14-365
    W01-358-7847 333C 3149 2 4 11.31 11.31 6.40 3B14-459
    W01-358-7848 333C 3122 5 4 11.31 11.31 4.00
    W01-358-7850 333C 3197 2 2 11.31 11.31 4.80 3B14-370 3B14-382 3B14-452
    W01-358-7852 39C 3122 4 5 11.31 11.31 4.80
    W01-358-7853 333C 3316 5 4 11.31 11.31 4.75
    W01-358-7855 333C 3130 5 4 11.31 11.31 4.80
    W01-358-7859 333C 3130 2 4 11.31 11.31 4.00
    W01-358-7862 333C 3130 2 4 11.31 11.31 4.00 3B14-464
    W01-358-7872 333C 3384 2 4 11.31 11.31 4.00
    W01-358-7915 312C
    W01-358-7954 352D 3303 3 4 10.38 10.38 4.55
    W01-358-7956 352D 3303 2 4 10.38 10.38 4.55
    W01-358-7990 38D 3183 2 2 9.00 9.00 4.55 3B12-324
    W01-358-7994 38D 3183 2 2 9.00 9.00 5.10 3B12-328
    W01-358-7995 38D 3183 2 2 9.00 9.00 4.55 3B12-329
    W01-358-7996 38D 3183 2 2 9.00 9.00 4.55 3B12-335
    W01-358-7998 38D 3183 2 2 9.00 9.00 4.55
    W01-358-8006 38D 3212 3 2 9.00 9.00 4.00 3B12-304
    W01-358-8008 38R (38D) 3183 2 2 9.00 9.00 4.55 3B12-300
    W01-358-8010 38D 3183 3 2 9.00 9.00 4.20 3B12-301
    W01-358-8014 38D 3183 3 2 9.00 9.00 4.50
    W01-358-8016 38D 3183 2 2 9.00 9.00 4.55
    W01-358-8018 38D 3183 2 2 9.00 9.00 4.55 3B12-303
    W01-358-8025 38D 3183 2 2 9.00 9.00 4.55
    W01-358-8027 38D 3183 2 2 9.00 9.00 4.55 3B12-310
    W01-358-8030 38D 3183 3 2 9.00 9.00 5.10
    W01-358-8032 38D 3183 2 2 9.00 9.00 4.55 3B12-315 3B12-319
    W01-358-8033 38R (38D) 3292 2 4 9.00 9.00 4.55 3B12-312
    W01-358-8038 354D 3183 2 2 9.00 9.00 4.55 3B12-415
    W01-358-8039 354D 3183 2 2 9.00 9.00 4.55 3B12-416
    W01-358-8042 352D 3303 2 4 10.38 10.38 4.55 3B12-322
    W01-358-8043 352D 3303 2 4 9.00 9.00 4.55 3B12-323
