CONTITECH FT 330-29 Cross others OEM
| BELLOW Numbers | COMPLETE NO. | COMPLETE Numbers |
| AIRKRAFT 116008 | AIRKRAFT 115033 | AIRKRAFT 115027 |
| FIRESTONE FLEX 38R/38D | CONTITECH FT 330-29 773 | CONTITECH FT 330-29 430 |
| FIRESTONE 095.0047 | FIRESTONE W01-358-8013 | FT 330-29 498 |
| GOODYEAR FLEX 556 3 3 8334 | GOODYEAR 3B12-305 | FT 330-29 503 |
| 578 93 3 100 | AIRKRAFT 115035 | FT 330-29 702 |
| CONTITECH FT 330-29 432 | FIRESTONE W01 358 8006 |
| FIRESTONE W01-358-8010 | W01 358 8030 |
| GOODYEAR 3B12-301 | GOODYEAR 3B12-304 |
3B8010 Technical Parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

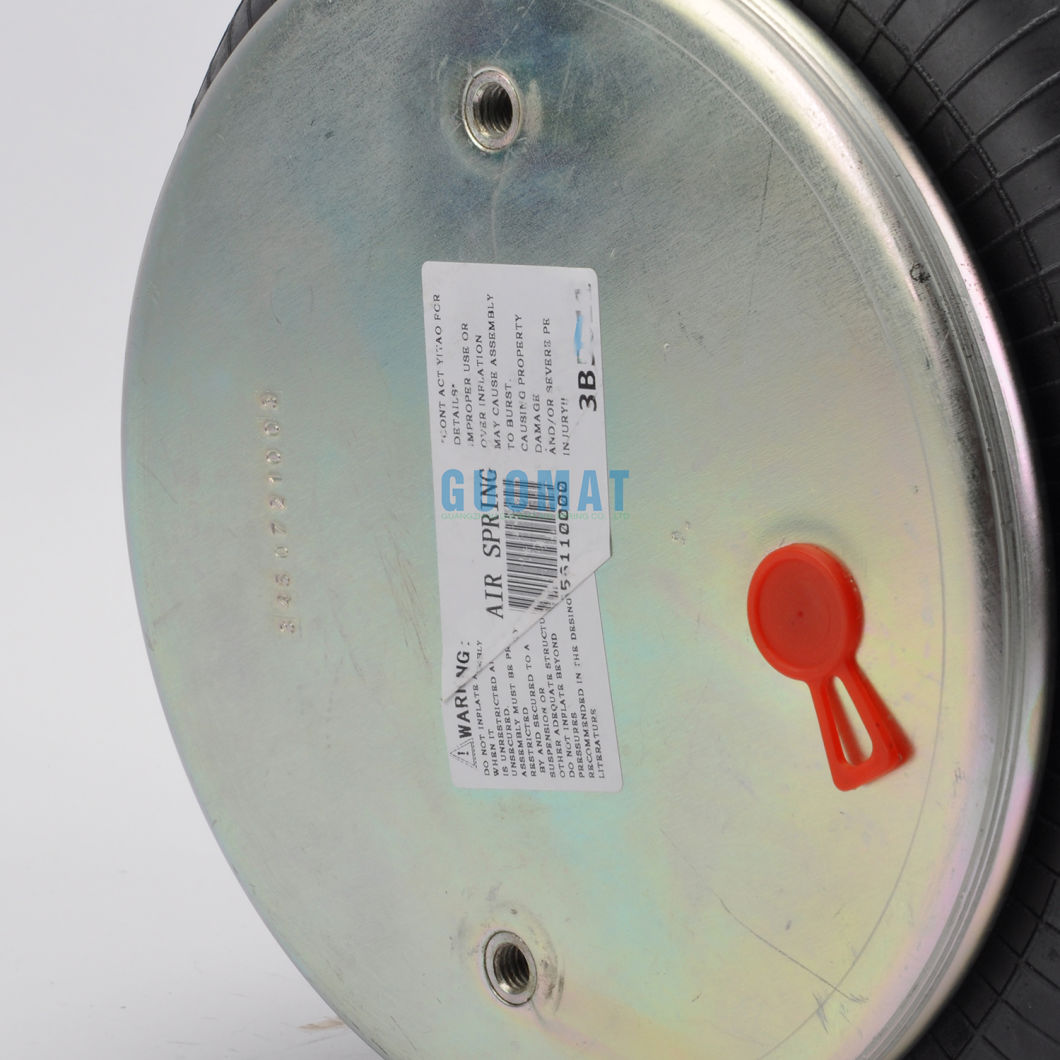

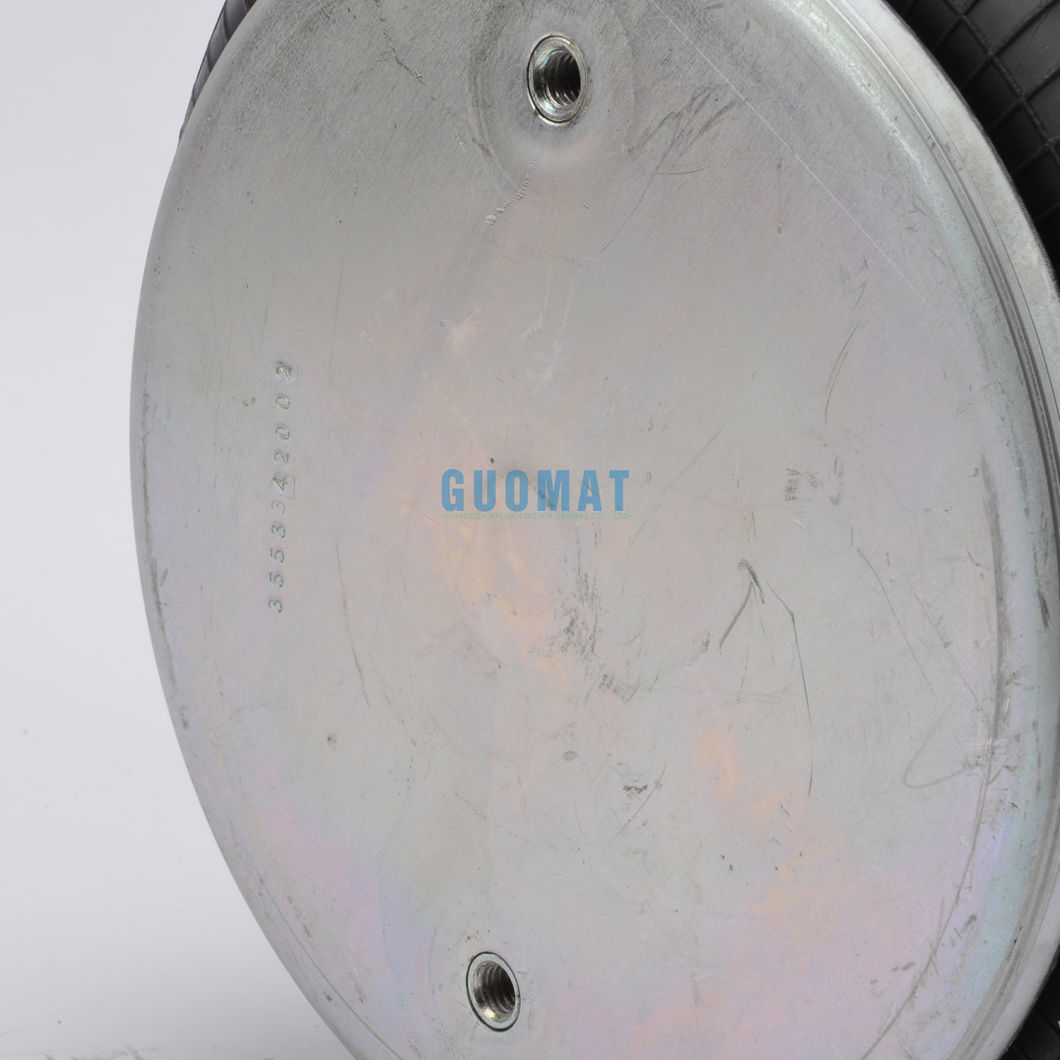

Cover Plate
Top Cover Plate Diameter: 231 mm
Bottom Cover Plate Diameter: 231 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mm
Compression Height : 330 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
3B8010 characteristic:
Durability
The empty stroke actuator has the same quality as AIRSUSTECH's
legendary AIRSUSTECH spring for truck and bus suspension. The use
of heavy-duty suspension requires millions of kilometers of
flexibility and is designed to withstand harsh environmental
conditions and other harsh conditions.
A wide range of
The diameter of the idle stroke actuator ranges from 55mm to 700mm.
The capacity is 100,000 pounds. The maximum stroke can reach 355mm.
No internal rods, pistons or sliding seals
In AIRSUSTECH actuators, there are no internal rods, pistons or
sliding seals like many conventional cylinders, which gives
AIRSUSTECH an advantage in applications where dirt or grit will
erode conventional cylinder seals.
Frictionless
In the absence of a sliding seal, the AIRSUSTECH actuator does not
break away from friction.
flexible
The empty stroke actuator can be used in conjunction with a variety
of media (liquid or gas).
Angle ability
Without the clevis, a stroke through an arc may produce angular
movements of up to 30 degrees.
Side loading capacity
Under certain conditions, free-stroke actuators are not affected by
side loads. This eliminates the possibility of rod bends, nicks and
excessive seal wear that are common when using conventional
cylinders.
| Model | Path | 0.7Mpa Max | Capacity | 0.7Mpa Frequency | Trip | Weight |
| 0.2Mpa | 0.5Mpa | 0.7Mpa | Minimum height | Safe height |
| 380320J-3 | 300 | 405 | | | 1.32 | | 115 | 370 | 10.65 |
| 330312J-3 | 250 | 355 | | | | | 115 | 360 | 6.15 |
| 255322J-3 | 200 | 270 | | | | | 118 | 400 | 7.25 |
| 360312J-3 | 280 | 375 | 1211 | 3136 | 4491 | 1.35 | 115 | 360 | 10.1 |
