    3B12-313 Goodyear Bellows 3B-356 Air Ride Springs 115061 Actuator Airkraft

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Price : 5-9 Pieces / US $69 | 10-49 Pieces / US $65 | 50+ Pieces / US $59
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 3B7808
    • Product Details
    • Company Profile

    3B12-313 Goodyear Bellows 3B-356 Air Ride Springs 115061 Actuator Airkraft

    Suspension Air Springs 3B12-313 Goodyear Bellows 578933350 Actuator Airkraft 3B-356 115061


    OEM Original Equipment Manufacturer:


    Product Specs for Firestone W013587808

    Technical Specs: Firestone W01-358-7808
    Compressed Height: 4.00
    Top Plate Number:3131 or 3134
    Top Plate Width:11.31
    Piston Number:3130
    Piston Width:11.31
    Firestone Bellows Number:313
    Goodyear Part Number:3B14-354 /3B14 354
    Goodyear Bellows Number:578-93-3-350 /578 93 3 350 / 578933350
    Triangle Part Number:4336
    Triangle Bellows Number:6319
    Ridewell Number:1003587808C
    EZ Ride Number8030170
    Note:PEERLESS 0550-00030
    UPC767555005538
    MPNW013587808

    Technical Parameters of 3B7808


    Top Cover Plate Diameter 289 mm

    Bottom Cover Plate Diameter 289 mm

    Screw Center Distance 158.8 mm

    Distance Gas Hole Between Nut 79.4 mm

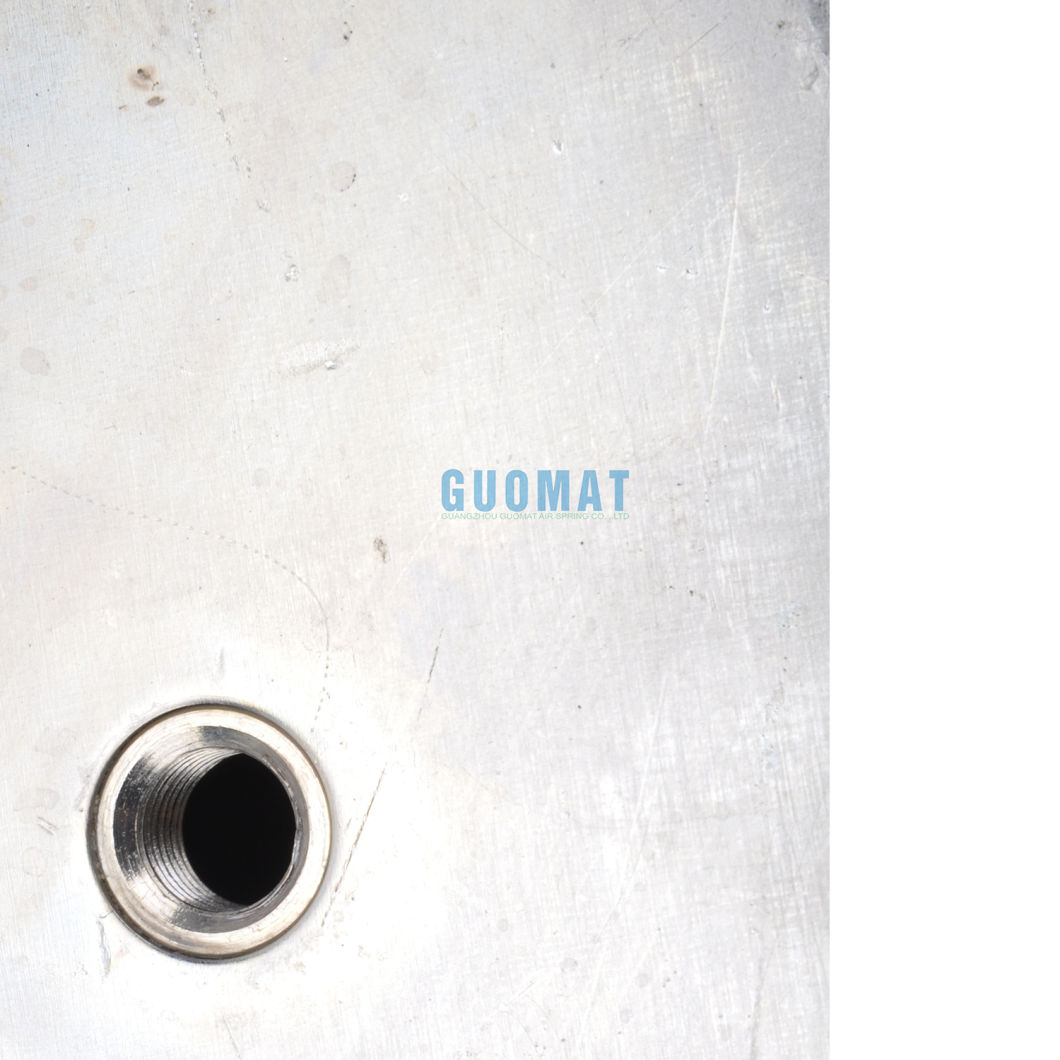

    Gas Hole 1/4NPTF

    Screw (Nut) Tooth 2pcsX3/8-16UNC

    Rubber Bellows Natural diameter 356 mm

    Rubber Bellows Natural height 282 mm


    Contitech FT 530-32 336

    Firestone Style 313
    Firestone No. W01-358-7808
    FleetPride AS7808
    Goodyear 3B14-354
    Goodyear Flex No. 578933350
    Taurus 6319
    Triangle AS-4336
    TRP AS78080
    Automann SP3B32R-7808


    Technical parameter list of 3B7808 air spring:
    Bearing
    load
    Power
    (kg)
    Inflation pressure0.2MPa0.3MPa0.4MPa0.5MPa0.6MPa0.7MPa0.8MPa0.7MPa
    Volume(dm³)
    Installation height
    122(mm)220032814329544665647684876510.42
    188(mm)186128303816478457886795780117.03
    254(mm)156024513310416550605950684523.20
    320(mm)140121462921367244515235604927.45
    365(mm)113817622418305937324408512630.67
    386(mm)101615822173279134214040470832.27
    Stiffness and frequency at design heightVertical stiffness(Kg/cm)114176214269309366418
    Stiffness and frequency at design heightNatural frequency Hz1.431.431.361.351.321.321.31
    Stiffness and frequency at design heightNatural frequency cpm86868281797979

    The usal kinds of Double Convolution Air Springs


    Triple Convolution Air Actuator
    All Measurements Are In Mm
    GUOMAT NO.Contitech NO.Min. Design heightInstallation Space RequiredMax. Stroke
    3B33029FT 330-29110345320
    3B43032FT 430-32115355315
    3B53032FT 530-32110410325
    3B53035FT 530-35115430395
    3B96034FT 960-34120510335
    3B133035FT 1330-35120570350

    Air Spring Installation

    • Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
    • Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
    • If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.

    Our Advantages

    • Long lasting service on almost all truck and trailer air suspensions
    • Absorb road shock to help tractors and rigs last longer
    • Cut down on vibration and driver fatigue
    • Long, trouble free service, constant level hauling, quite cushioned ride
    2b12-313 Goodyear Air Spring 578933350 Air Spring Actuator Airkraft 3b-356 115061
    2b12-313 Goodyear Air Spring 578933350 Air Spring Actuator Airkraft 3b-356 115061
    2b12-313 Goodyear Air Spring 578933350 Air Spring Actuator Airkraft 3b-356 115061
