    Norgren M/31082 Convoluted Air Spring Contitech FD138-18 DS 66505

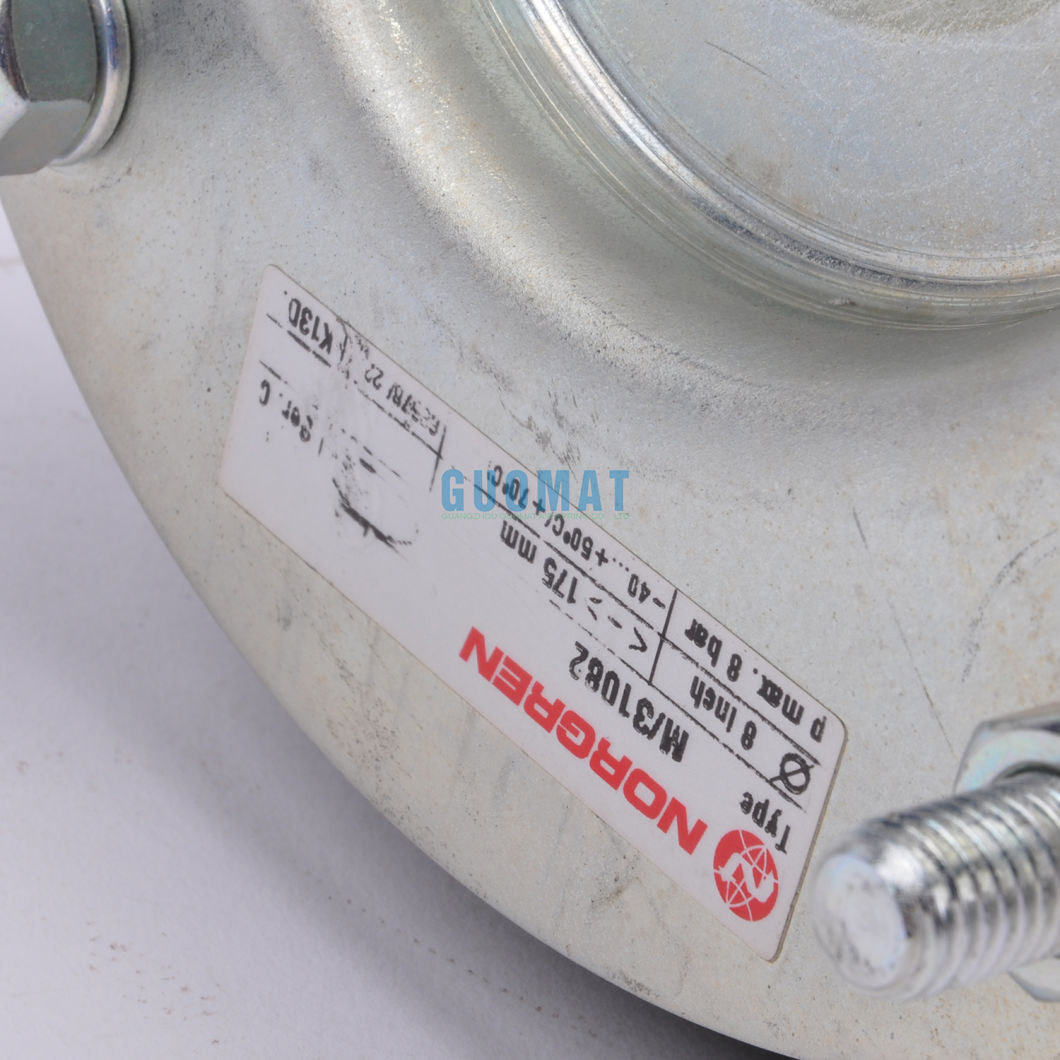

    M/31082 Norgren Air Springs Made by Contitech Fd138-18 Ds Double Convolution Air Actuator


    Type

    Order No.

    Rubber bellows only

    66501

    with dismountable plates, G1/2 air inlet

    66505


    Min. pressure 0 bar
    Return force to min height ≤ 300 N
    Overall weight 3.5 kg
    Nut / Blind Nut
    Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

    Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

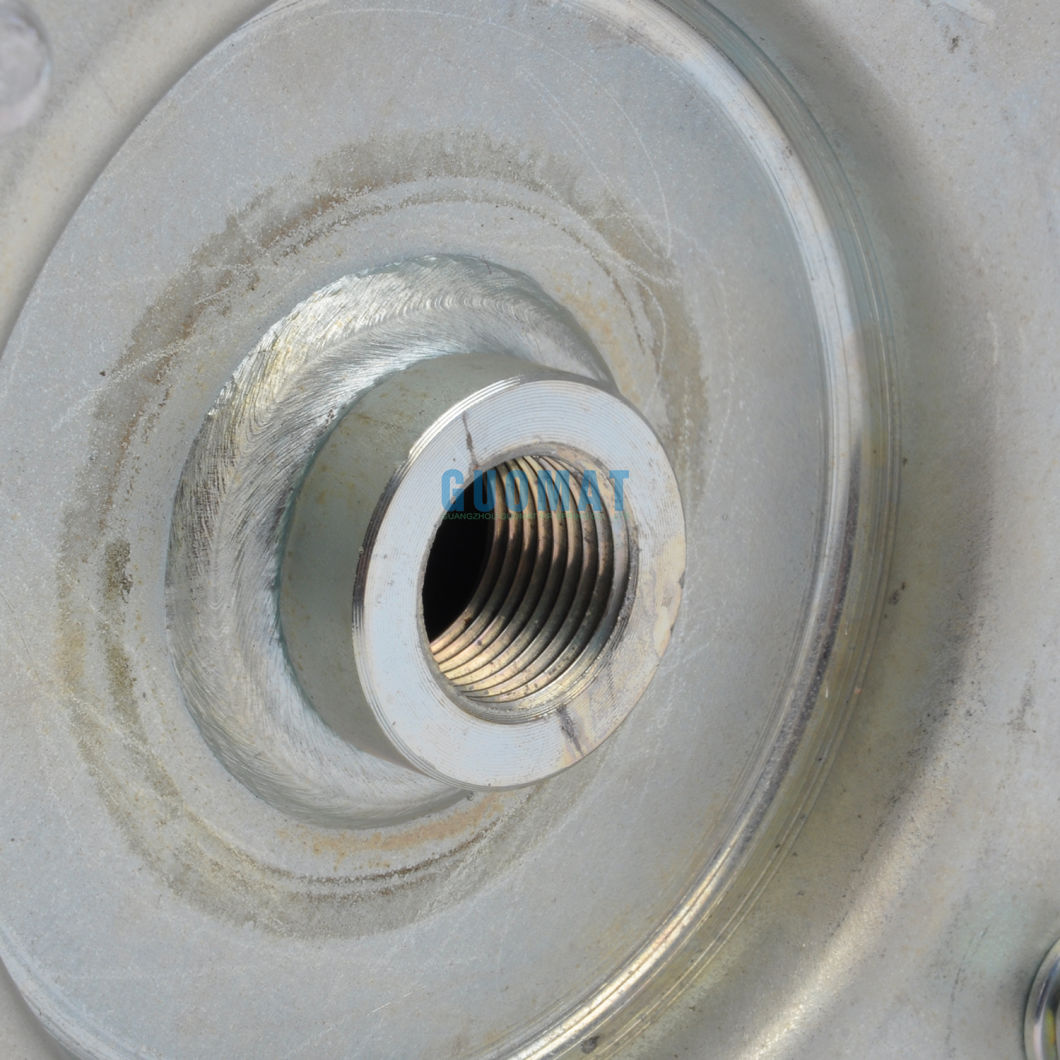

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : G3/4

    Cover Plate
    Top Cover Plate Diameter (Width): 184 mm

    Bottom Cover Plate Diameter (Width): 184 mm

    Material top and bottom plate:Steel

    Rubber Bellows
    Diameter max at 7 bar:225MM

    Stroke of Rubber Bellows:75mm-225m

    Bumper block / Buffer block
    Without Bumper Block
    Girdle Hoop / Girdle Ring
    With Girdle Hoop :One Pieces of Girdle Hoop

    Vibration isolation - dynamic characteristic values
    Design height H: recommended 200mm, minimum 180mm

    Pressure p [bar]

    3

    4

    5

    6

    7

    8

    Vol. V [l]

    Force (Load) [kN]

    3.9

    5.3

    6.7

    8.2

    9.7

    11.3

    Spring rate [N/mm]

    76

    97

    118.5

    140

    161

    181.5

    4.1

    Natural frequency [Hz]

    2.2

    2.2

    2.1

    2.1

    2.1

    2.0


    Pneumatic application - static characteristic values
    Force F [kN]

    Pressure p [bar]

    3

    4

    5

    6

    7

    8

    Vol. V [l]

    Height H [mm]

    220

    2.9

    4.03

    5.16

    6.41

    7.65

    8.98

    4.3

    200

    3.86

    5.27

    6.68

    8.21

    9.73

    11.3

    4.1

    150

    5.9

    8

    10.1

    12.4

    14.7

    16.9

    3.2

    100

    8.2

    10.9

    13.7

    16.6

    19.4

    22.4

    2



    Other Norgen air springs models:

    ModelNominal Ø (inch) x convolutionsMaximum stroke (mm)Air Port size
    M/310212 3/4" x 120G1/4
    M/310222 3/4" x 245G1/4
    M/310232 3/4" x 365G1/4
    M/310414 1/2" x 1140G3/8
    M/310424 1/2" x 2280G3/8
    M/310616" x 1155G1/2
    M/310626" x 2155G1/2
    M/310818" x 195G3/4
    M/310828" x 2185G3/4
    M/310919 1/4" x 1105G3/4
    M/310929 1/4" x 1230G3/4
    M/3112112" x 1105G3/4
    M/3112212" x 2215G3/4
    M/3112312" x 3315G3/4

    M/31082 Norgren Air Springs Made by Contitech Fd138-18 Ds Double Convolution Air Actuator 8
