    1B14-372 Bagged Air Suspension

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : Goodyear
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 1B14-372
    • Product Details
    • Company Profile

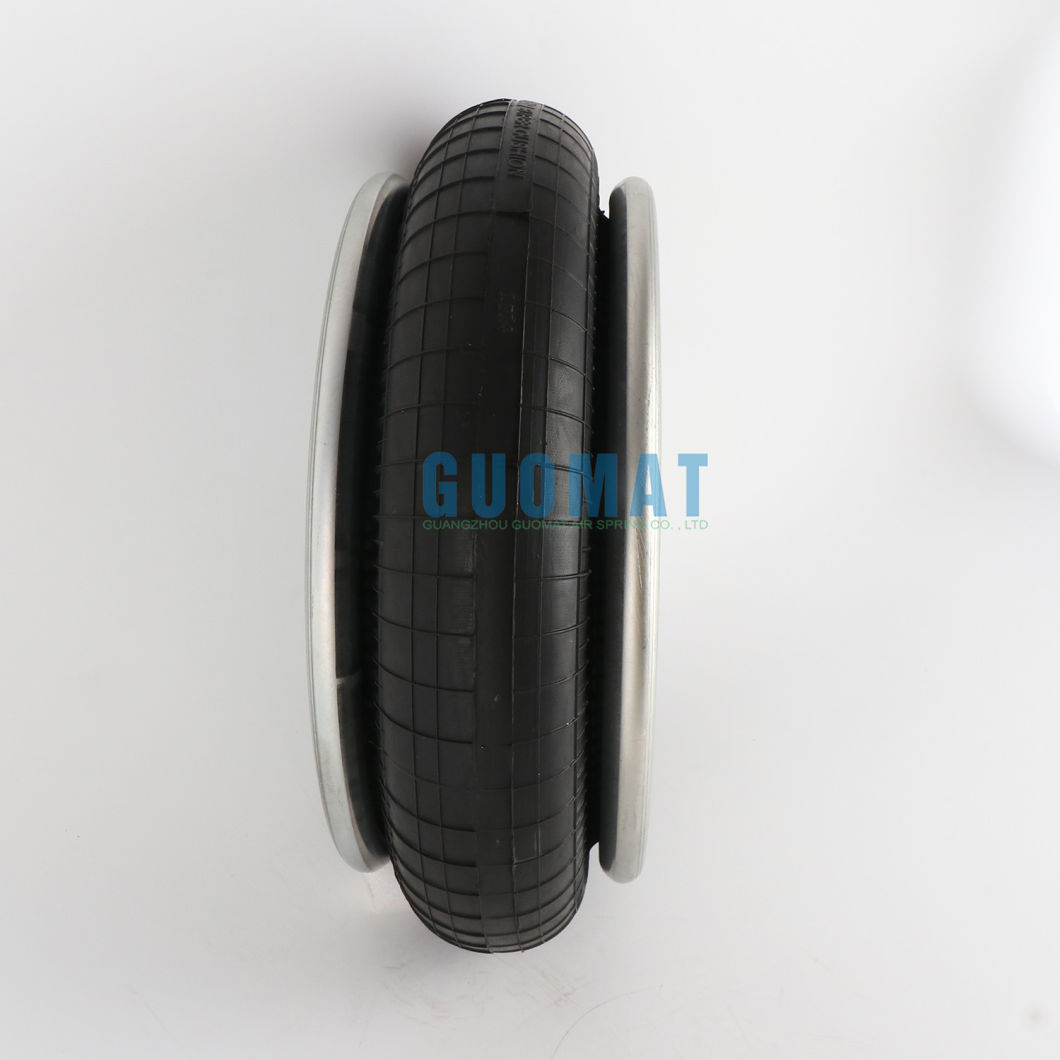

    1B14-372 Bagged Air Suspension

    1B14-372 Goodyear Air Springs Single Convoluted Mexico Original Big Suspension For Machine

    1B14-372 Goodyear Specifications and Technical Data


    Goodyear part number:1B14-372 ;
    Goodyear part number:1B14 372;
    Goodyear part number:1B14372

    Goodyear Bellows 578 912 372;
    Goodyear Bellows 578912372;
    Goodyear Bellows 578-91-2-372

    Cross Contitech NO.:FS 530-14;
    Cross Contitech NO.:FS53014;
    Cross Contitech NO.:FS530-14
    Firestone:W01-M58-6369
    Firestone:W01 M58 6369
    Firestone:W01 M58 6369
    Contitech:FS 530-14 CI G 3/4
    Contitech:FS530-14 CI G 3/4

    nuts/blind nuts

    Upper cover screw (nut) teeth: 4 X M8

    Top plate screw center distance: 158.8 mm

    Screw (nut) teeth of the bottom cover plate: 4 x M8

    The screw center distance of the bottom cover plate: 158.8 mm

    The air hole distance between the nuts is 79.4 mm



    Ga air hole/air inlet/air fitting

    Air hole/air inlet: 3/4 N P.T.F.



    over cover

    Top plate diameter (width): 289mm

    Diameter (width) of the bottom cover plate: 289 mm



    Bell rubber bellows

    Rubber bellows natural diameter 380 mm

    Maximum diameter of rubber bellows: 406 mm

    Natural height of rubber bellows: 120 mm

    Working stroke: maximum 160 mm to minimum 81 mm



    B bumper block/buffer block

    No bumper block

    Other kinds of goodyear air springs:
    578912350000195789123500001920094306YENIDINE YI-1B14-350ENIDINE YI-1B14-350
    578912351000005789123510000020094308Y1B14-3511B14-351
    578912351000041B14-35120094309N1B14-351 Bellows Air Spring1B14-351 Bellows Air Spring
    578912351000195789123510001920094310YENIDINE YI-1B14-351ENIDINE YI-1B14-351
    578912352000005789123520000020094312Y1B14-3521B14-352
    578912352000041B14-35220116210N1B14-3521B14-352
    578912352000195789123520001920094313YENIDINE YI-1B14-352ENIDINE YI-1B14-352
    578912353000005789123530000020094314Y1B14-3531B14-353
    578912353000041B14-35320116211N1B14-3531B14-353
    578912353000195789123530001920094315YENIDINE YI-1B14-353ENIDINE YI-1B14-353
    578912358000005789123580000020094316Y1B14-3581B14-358
    578912358000041B14-35820035777N1B14-358 Bellows Air Spring1B14-358 Bellows Air Spring
    578912362000005789123620000020094323Y1B14-3621B14-362
    578912362000045789123620000420116212Y1B14-3621B14-362
    578912362000195789123620001920094324YENIDINE YI-1B14-362ENIDINE YI-1B14-362
    578912364000005789123640000020094325Y1B14-364 EXT1B14-364 EXT
    578912364000041B14-36420094326N1B14-3641B14-364
    578912364000195789123640001920094327YENIDINE YI-1B14-364ENIDINE YI-1B14-364
    578912368000945789123680009420811431YC 1B14-352C 1B14-352
    578912371000005789123710000020094334Y1B14-3711B14-371
    578912371000195789123710001920094335YENIDINE YI-1B14-371ENIDINE YI-1B14-371
    578912372000191B14-37220106777Y1B14-3721B14-372
    578912373000005789123730000020140234Y1B14-3731B14-373
    578912373000041B14-37320140235N1B14-373 Bellows Air Spring1B14-373 Bellows Air Spring


    1b14-372 Goodyear Air Springs Single Convoluted Air Spring USA Original Big Suspension for Machine

    1b14-372 Goodyear Air Springs Single Convoluted Air Spring USA Original Big Suspension for Machine
    1b14-372 Goodyear Air Springs Single Convoluted Air Spring USA Original Big Suspension for Machine
