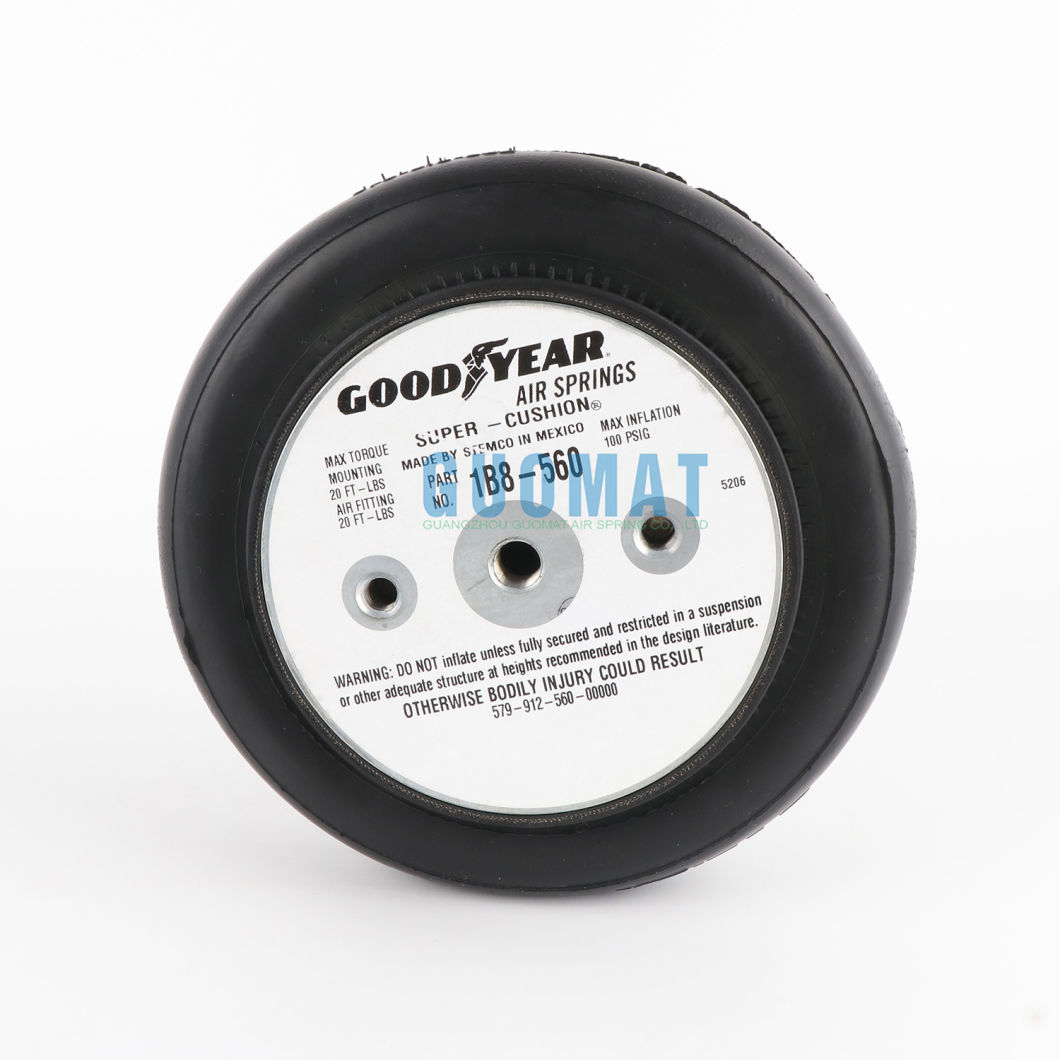

    Single Bellow Air Bag 1B8-560 Goodyear Air Spring 579-91-3-532

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : Goodyear
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 1B8-560
    • Product Details
    • Company Profile

    Single Bellow Air Bag 1B8-560 Goodyear Air Spring 579-91-3-532

    579-91-3-532 Goodyear Air Spring 1B8-560 Industrial Air Bags Single Convoluted Air Shocks



    Goodyear 1B8-560 Specifications and Technical Data

    Nut/blind nut

    Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
    The screw center distance of the top cover plate: 70 mm
    Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
    The screw center distance of the bottom cover plate: 70 mm

    Air hole/air inlet/air fitting
    Air hole/air inlet: 1 / 4-18NPTF
    Screw center distance between air hole and nut: 35 mm

    Cover plate
    Top plate diameter: 135 mm
    Diameter of the bottom cover: 135 mm

    Rubber bellows
    Maximum diameter of rubber bellows: 240 mm
    Natural diameter of rubber bellows: 225 mm
    Working stroke: minimum 60 mm to maximum 180 mm
    Maximum height: 180 mm
    Minimum height: 50 mm
    Stroke height: 120mm

    Bumper block/bumper block
    No bumper block

    Belt loop/Belt loop
    With belt loop: There is no belt loop

    Goodyear 1B8-560

    Goodyear 579-91-3-532
    SUPER-CUSHION® AIR SPRING ISOLATORS 1B8-560


    Goodyear 1B8-157,

    Goodyear 1B8-159,

    Goodyear 1B8-560,

    Goodyear 1B8-563

    Goodyear 1B8-562

    Goodyear 1B8-564


    refet to Firestone Wo1-358-7598; 116B1116B-1
    refet to Firestone W01-358-7598, W013587598, W01-358-7598,

    refet to Contitech FS 120-12 CI 1/4 NPT


    Airmount / Airstroke
    (2) 2.75 center distance
    3 / 8-16UNC, 1/4 "NPT AIR INLET
    Air Springs from ITT Enidine Inc.
    Single Convolute Bellow Air Spring YI-1B8-560

    Maximum stroke: 3.20 inches
    System natural frequency: 2.33 Hz
    Height range: 4 to 6-1 / 2 inches
    100 psi diameter: 9.4 inches
    Spring style: single-turn curved surface type
    End plate diameter: 5 inches
    Force at 100 psi maximum stroke: 1600 lbs
    Center distance between tapped holes: 2-3 / 4 inches
    Load range at 100 psi: 1900 to 3300 pounds
    Air port thread standard: UNC
    Bumper Type: No
    Air port thread diameter: 1/4 inch
    Air port thread type: 1/4 UNC


    Other kinds of goodyear air springs:

    579912550000001B8-55020095515N1B8-5501B8-550
    579912550000195799125500001920095516YENIDINE YI-1B8-550ENIDINE YI-1B8-550
    579912552000001B8-55220095517N1B8-5521B8-552
    579912552000195799125520001920095518YENIDINE YI-1B8-552ENIDINE YI-1B8-552
    579912553000001B8-55320095519N1B8-5531B8-553
    579912553000195799125530001920095520YENIDINE YI-1B8-553ENIDINE YI-1B8-553
    579912554000001B8-55420095521N1B8-5541B8-554
    579912554000195799125540001920095522YENIDINE YI-1B8-554ENIDINE YI-1B8-554
    579912555000001B8-55520095523N1B8-5551B8-555
    579912556000001B8-55620095524N1B8-5561B8-556
    579912560000001B8-56020095526N1B8-560 EXT1B8-560 EXT
    579912560000195799125600001920095527YENIDINE YI-1B8-560ENIDINE YI-1B8-560
    579912561000001B8-56120095528N1B8-561 AIR LIFT 581241B8-561 AIR LIFT 58124
    579912562000001B8-56220095529N1B8-5621B8-562
    579912562000195799125620001920095530YENIDINE YI-1B8-562ENIDINE YI-1B8-562
    579912563000001B8-56320095531N1B8-5631B8-563
    579912563000195799125630001920095532YENIDINE YI-1B8-563ENIDINE YI-1B8-563
    579912564000005799125640000020095533Y1B8-5641B8-564
    579912564000041B8-56420449825N1B8-564 Bellows Air Spring1B8-564 Bellows Air Spring
    579912564000195799125640001920095534YENIDINE YI-1B8-564ENIDINE YI-1B8-564
    579912564000425799125640004220141113Y1B8-564 INTERNATIONAL 3547005C11B8-564 INTERNATIONAL 3547005C1
    579912565000001B8-56520248442N1B8-5651B8-565
    579912567000905799125670009020810735YC 1B8-560C 1B8-560
    579912568000915799125680009120810607YP 1B8-560P 1B8-560
    579912569000915799125690009120811403YP 1B8-550P 1B8-550
    579912570000905799125700009020811604YC 1B8-562C 1B8-562
    579912571000905799125710009020811605YC 1B8-564C 1B8-564
    579912572000905799125720009020811606YC 1B8-850C 1B8-850
    579912627000905799126270009020806174YC 1B8-550C 1B8-550



    579913532 Goodyear Air Spring 1b8-560 Goodyear Industrial Air Bags Single Convoluted Air Shocks
    579913532 Goodyear Air Spring 1b8-560 Goodyear Industrial Air Bags Single Convoluted Air Shocks
    579913532 Goodyear Air Spring 1b8-560 Goodyear Industrial Air Bags Single Convoluted Air Shocks
