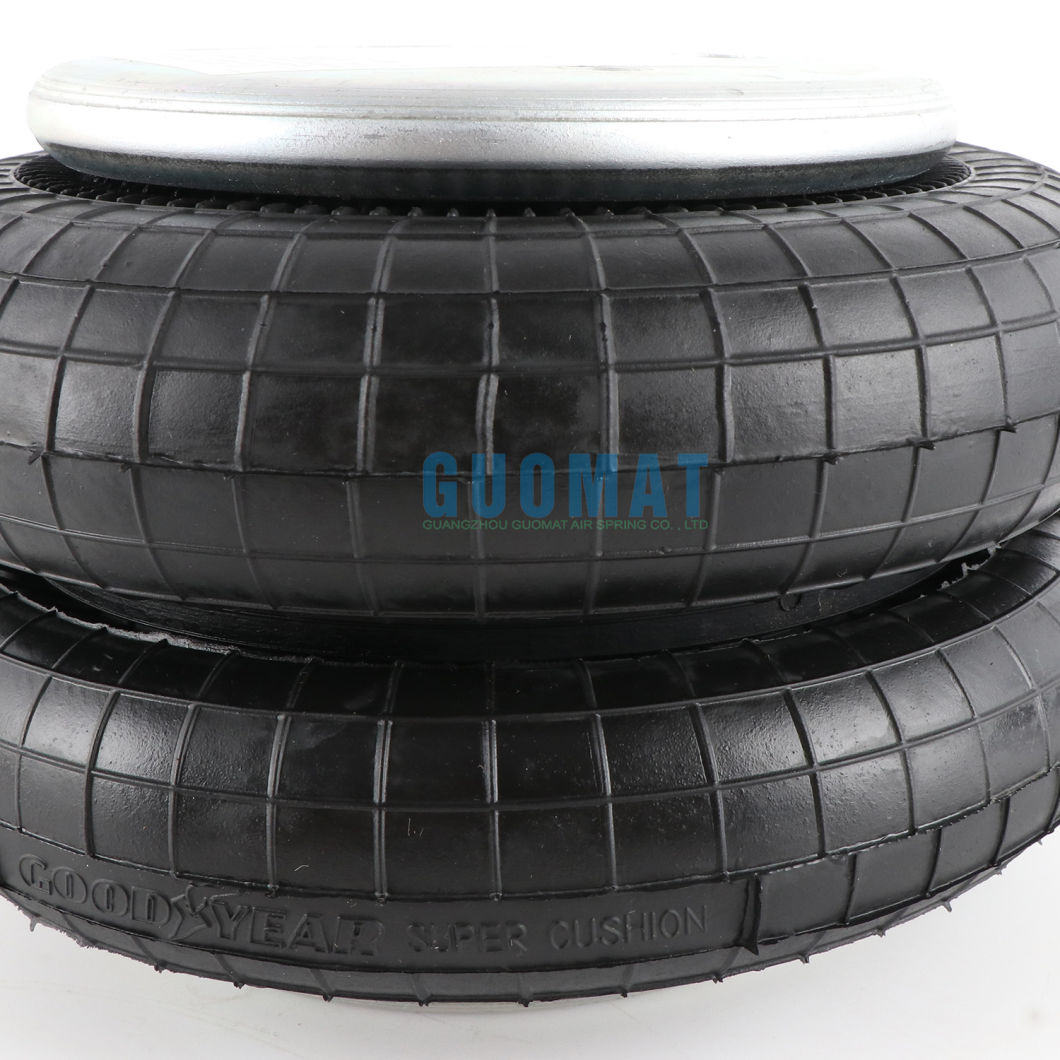

    2B9-223 Goodyear Air Spring S09201NB 578-92-3-211 Lift Bags For Trucks

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : Goodyear
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B9-223
    • Product Details
    • Company Profile

    2B9-223 Goodyear Air Spring S09201NB 578-92-3-211 Lift Bags For Trucks

    2B9-223 Goodyear Air Spring Springride S09201nb Flexible 578-92-3-211 Firestone W01 M58 6887


    Goodyear 2B9-223 Technical parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2 pcs X M10

    Screw Center Distance of Top Cover Plate : 89 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10

    Screw Center Distance of Bottom Cover Plate : 89 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4

    Screw Center Distance Between Gas Hole and Nut : 44.5 mm


    Cover Plate

    Top Cover Plate Diameter: 162.5 mm

    Bottom Cover Plate Diameter: 162.5 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 251 mm

    Rubber Bellows Natural Diameter : 224 mm

    The Working Stroke : MIN 75 mm to MAX 260 mm

    Maximum Height : 260 mm

    Minimum Height :75mm

    Stroke Height : 285 mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Goodyear 2B9-223 Cross others OEM


    OEM

    MERITOR (ROR)21221395 21222663

    WEWELER US 06910F

    COMPETITOR

    Contitech
    FD 200-19 1/4 M10

    Firestone

    W01 M58 6887 20
    CF Gomma 206797 20

    Vibracoustic

    V SP 2 B 12 R-10

    Phoenix

    SP 2 B 12 R-10

    2b9-223 Goodyear Air Spring Replaces 2b9-2250 / Springride S09201nb Flexible Member 578-92-3-211 Cross to Firestone W01 M58 6887
    2b9-223 Goodyear Air Spring Replaces 2b9-2250 / Springride S09201nb Flexible Member 578-92-3-211 Cross to Firestone W01 M58 6887
    2b9-223 Goodyear Air Spring Replaces 2b9-2250 / Springride S09201nb Flexible Member 578-92-3-211 Cross to Firestone W01 M58 6887
