    Air Bag Suspension For Toyota Land Cruiser 2B6-535 Rubber Spring 0.8Mpa

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : Goodyear
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B6-535
    • Product Details
    • Company Profile

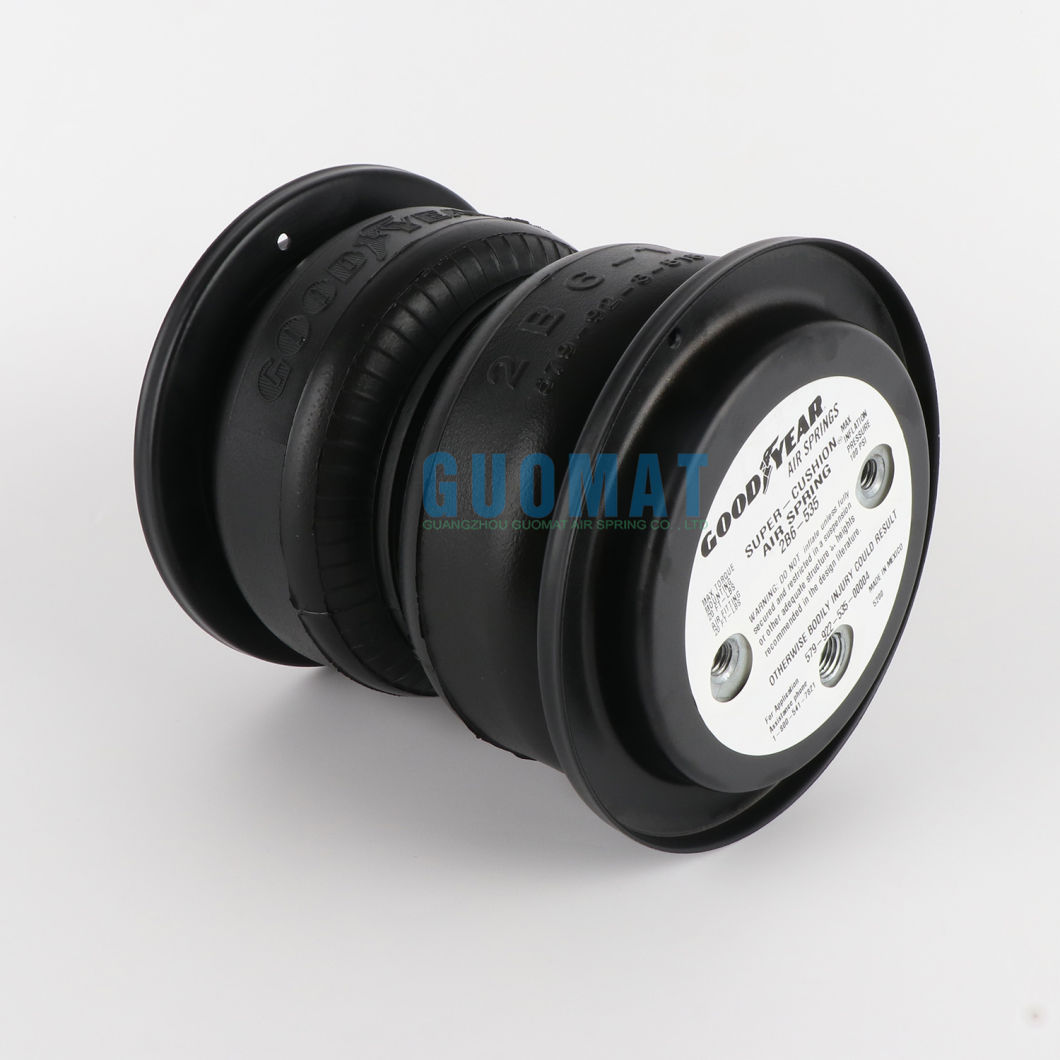

    Air Bag Suspension For Toyota Land Cruiser 2B6-535 Rubber Spring 0.8Mpa

    2B6-535 Goodyear Air Spring USA Brand Original Rubber Suspension Bellows Number 579923515


    Manufacturer: Goodyear
    Brand name: Goodyear
    Product weight: 3.5 kilograms
    Package size: 24*24*24 CM

    Top plate holes/studs: 3
    Bottom plate hole/stud: 2
    Top plate diameter: 4.15 inch
    Diameter of base plate: 4.15 inch
    Folding height: 2.8 inch
    Flexible member: 579-92-3-515
    Goodyear trim: 2B6-535; 2B6 535; 2B6535


    Refer to CONTITECH FD110-15766 / FD110-15 766


    2B6-535 Goodyear Technical parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 70 mm /2.75 inch

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 70 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 35 mm


    Cover Plate

    Top Cover Plate Diameter: 105 mm

    Bottom Cover Plate Diameter: 105 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 178 mm

    Rubber Bellows Natural Diameter :150 mm

    The Working Stroke : MIN 71 mm to MAX 231 mm

    Maximum Height : 231 mm

    Minimum Height :71mm

    Stroke Height : 160mm

    Max OD @ 100 psi (Inches):178mm


    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Description of 2B6-535 Goodyear air spring:


    2B6-535 This is a bellows-type Goodyear air spring. The bellows air spring has one, two or three convolutions in the flexible member. The 2B6-535 double scroll airbag is used as an air spring and also used as an actuator or insulator in industrial and commercial applications. 2B6-535 is usually found on lifting springs or axles of trucks and trailers. The specifications of your 2B6-535 will be different, but double-pleated Goodyear bags are found in the pleated design and sleeve bellows. They will provide similar features and functions, but in the sleeve type, the end retainer is permanently fixed by pinching the flexible member between the end retainer and the external crimping ring.


    2b6-535 Goodyear Air Spring Original Imported From USA Rubber Suspension Air Spring Bellows Number 579-92-3-515
    2b6-535 Goodyear Air Spring Original Imported From USA Rubber Suspension Air Spring Bellows Number 579-92-3-515
    2b6-535 Goodyear Air Spring Original Imported From USA Rubber Suspension Air Spring Bellows Number 579-92-3-515


    Other kinds of goodyear air spring:


    5799225290009120811279YP 2B6-530P 2B6-530
    2B6-53020054277Y2B6-530 Bellows Air Spring2B6-530 Bellows Air Spring
    5799225300000420458563Y2B6-530 OBS USE 200542772B6-530 OBS USE 20054277
    5799225300001920095561YENIDINE YI-2B6-530ENIDINE YI-2B6-530
    2B6-53120095562N2B6-5312B6-531
    5799225310001920095563YENIDINE YI-2B6-531ENIDINE YI-2B6-531
    5799225310002120095564Y2B6-531 AIR LIFT OBS USE 200955622B6-531 AIR LIFT OBS USE 20095562
    2B6-53220054208N2B6-5322B6-532
    5799225320000420551314Y2B6-5322B6-532
    5799225320001920095565YENIDINE YI-2B6-532ENIDINE YI-2B6-532
    2B6-53220542775N2B6-532 FOR MDC2B6-532 FOR MDC
    5799225330000020095566Y2B6-5332B6-533
    5799225340009020806207YC 2B6-530C 2B6-530
    5799225350000020095568Y2B6-5352B6-535
    2B6-53520155219N2B6-535 Bellows Air Spring2B6-535 Bellows Air Spring
    5799225350001920095569YENIDINE YI-2B6-535ENIDINE YI-2B6-535
    5799225350002420096398Y2B6-5352B6-535
    5799225360000020095571Y2B6-5362B6-536
    5799225360001920095572YENIDINE YI-2B6-536ENIDINE YI-2B6-536
    5799225380009520806484YP 2B6-535P 2B6-535
    5799225400000020054209Y2B7-5402B7-540
    2B7-54020543451N2B7-540 Bellows Air Spring2B7-540 Bellows Air Spring
    5799225400001920095576YENIDINE YI-2B7-540ENIDINE YI-2B7-540
    5799225400006820095577Y2B7-540 BULK2B7-540 BULK
    2B7-54120095578N2B7-5412B7-541
    5799225410001920095579YENIDINE YI-2B7-541ENIDINE YI-2B7-541
    5799225420000020096399Y2B7-5422B7-542
    2B7-54220116865N2B7-542 Bellows Air Spring2B7-542 Bellows Air Spring
    5799225420001920095581YENIDINE YI-2B7-542ENIDINE YI-2B7-542
    2B7-54620095584Y2B7-5462B7-546
    5799225460001920095585YENIDINE YI-2B7-546ENIDINE YI-2B7-546
    5799225480000020200918Y2B7-5482B7-548
    2B7-54820305191N2B7-548 Bellows Air Spring2B7-548 Bellows Air Spring
    5799225480003820287310Y2B7-548 HENDRICKSON 0050792B7-548 HENDRICKSON 005079
    5799225480005020305190Y2B7-5482B7-548
