    16Unc Single Air Bag W01-358-7451 Firestone Air Ride Suspension 110B

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 1B7451
    • Product Details
    • Company Profile

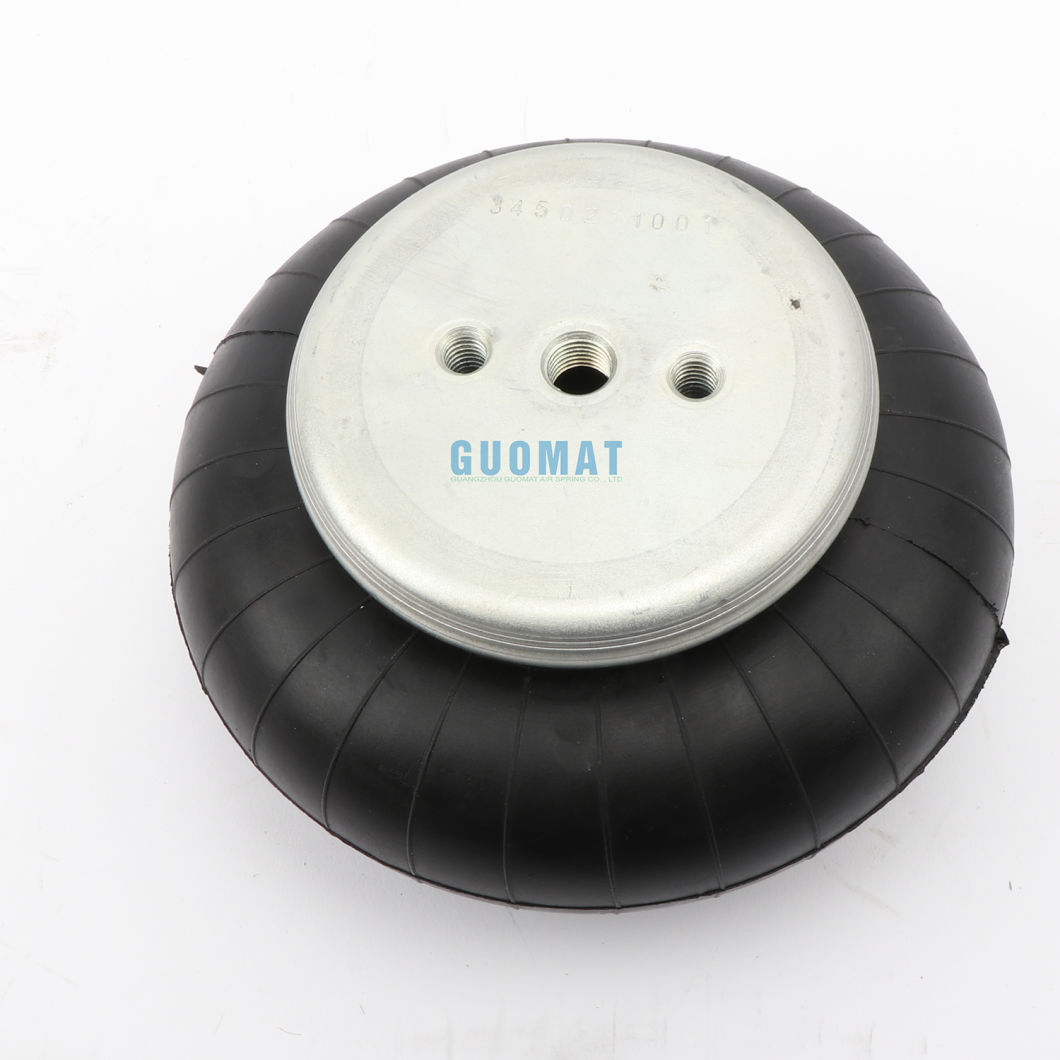

    16Unc Single Air Bag W01-358-7451 Firestone Air Ride Suspension 110B

    W01-358-7451 Style Number 110b Firestone Air Springs Single Convoluted Rubber Air Bags


    AIRSUSTECH​ Part Number:1B7451 Specifications and Technical parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 44.45 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 44.45 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4NPTF

    Screw Center Distance Between Gas Hole and Nut : 22.25 mm


    Cover Plate

    Top Cover Plate Diameter: 115 mm

    Bottom Cover Plate Diameter: 115 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 205 mm

    Rubber Bellows Natural Diameter : 180 mm

    The Working Stroke : MIN 50 mm to MAX 140 mm

    Maximum Height : 140 mm

    Minimum Height :50mm

    Stroke Height : 90mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :no One Pieces of Girdle Hoop


    AIRSUSTECH​ Part Number:1B7451 cross other OE:


    AIRSUSTECH​ Part Number:1B7451

    Goodyear-Firestone Cross Reference 1B7-100
    Goodyear-Firestone Cross Reference‚ 1B7-101
    Goodyear-Firestone Cross Reference‚ 1B7-102
    Goodyear-Firestone Cross Reference‚ 1B7-103
    Goodyear-Firestone Cross Reference‚ 1B7-540
    Goodyear-Firestone Cross Reference‚ 1B7-541
    Goodyear-Firestone Cross Reference‚ 1B7-542

    aximum Diameter @ 100 PSIG (mm)210.82Other Cross Reference

    W01-358-7451, W013587451, WO1-358-7451, WO13587451


    Maximum Height (mm)140Manufacturer Part NumberW013587451
    Maximum Stroke (mm)76.2ManufacturerFirestone Industrial
    Minimum Usable Height (mm)50Style Number110B
    1 Inch (pounds)2090Style ShapeSingle Convolution
    3 Inch (pounds)1030Natural Frequency (@80 psig) (cpm)162
    Bead plate Type1400 CPM %80.2
    Blind Nut Centers (mm)44.45800 CPM %95.7
    Design Height4.51500 CPM %98.8
    40 psig (pounds)650Maximum Stroke (pounds)940
    60 psig (pounds)1010Material2-Ply Standard Cord
    80 psig (pounds)1390

    W013587451 Firestone Style Number 110b Firestone Air Springs Single Convoluted Air Spring

    W013587451 Firestone Style Number 110b Firestone Air Springs Single Convoluted Air Spring
    W013587451 Firestone Style Number 110b Firestone Air Springs Single Convoluted Air Spring
