Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine

Ask Lasest Price
Supply Ability :	1000pcs/week
Payment Terms :	T/T, Western Union,Paypal or Others
Brand Name :	AIRSUSTECH
Certification :	ISO/TS16949:2009
Delivery Time :	3-8 Working Days
Model Number :	F-300-2

Add to Cart

Product Details
Company Profile

Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine

S-300-2r Yokohama Air Spring 300-2r Double Convoluted Actuator For Hardware Punch Machine

AIRSUSTECH F-300-2R this kind of air spring can use for Punching machine is a machine press used to cut holes in materials. It can be small, can be operated manually, and can accommodate a simple mold, or it can be very large, operated by CNC, with a multi-station turret, and can accommodate larger and more complex molds. Air spring can reduce the damage to the product caused by the vibration and the damage to the ground, and has a good effect of isolating the vibration.

Net Weight:5.75 KG

Gross Weight:6.25 KG

Package Size:120mm*360mm*360mm

AIRSUSTECH 300-2 items Detailed Parameter Table 1:

AIRSUSTECH NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
AIRSUSTECH NO.	Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-300-1	S-300-1	72	117	40	±30	400
F-300-2	S-300-2	98	158	53	±40	360
F-300-3	S-300-3	152	242	82	±60	360
F-300-4	S-300-4	206	326	111	±80	360

300-2 items Detailed Parameter Table 2:

GUOMAT NO.	Reference No.	Standard Height,Internal Pressure 0.49 M pa When The General Value					Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
GUOMAT NO.	Reference No.	Effective Area (Cm2)	Volume(L)	Load (K n)	Dynamic Spring Parameters (N/Min)	Vibration Frequency (Hz)	Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
F-300-1	S-300-1	710	5.6	34.7	1180	2.8	0.69	2.9-3.9
F-300-2	S-300-2	710	7.4	34.7	745	2.3	0.88	3.9-4.9
F-300-3	S-300-3	710	11.2	34.7	490	1.9	0.88	3.9-4.9
F-300-4	S-300-4	710	15.5	34.7	324	1.5	0.88	3.9-4.9

This item can fits for many kinds of machines

Actuators for concrete block machinery
Mineral equipment air spring,
Directional-change actuators in roller conveying systems
Actuators for flask lifts on foundry shake-outs
Mountain bike
Actuators on bottle and carton filling machines
Bin-tilting actuators (for ease of access)
Paper machine equipment air spring air spring,
Actuators on transfer tables
Vibrating screen cover clamping device
Actuators in sand blast rooms
Actuators in glass grinding rooms
Industrial laundry equipment actuators
Crawling pipeline machine

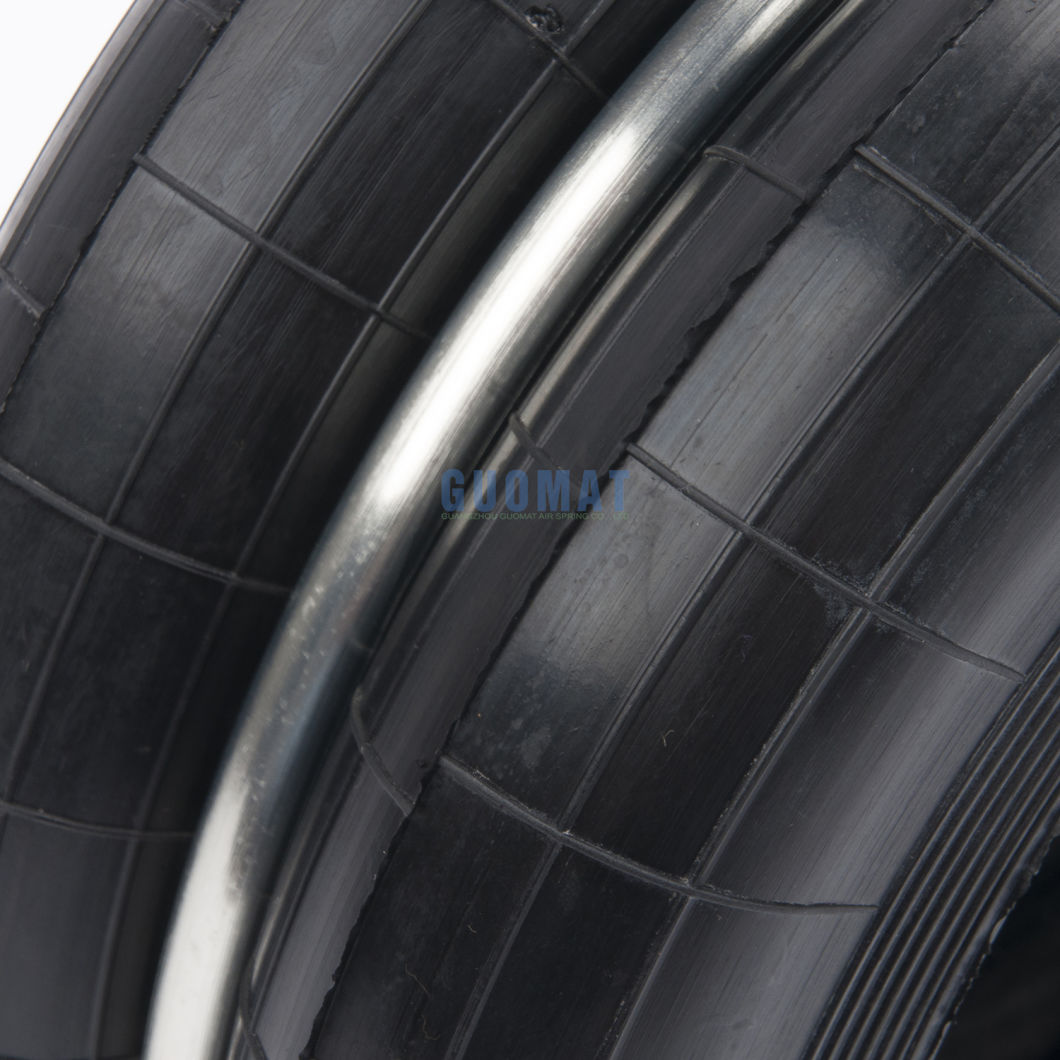

Details pictures 1 of AIRSUSTECH air spring F-300-2R:

Punch Machine Air Spring S-300-2r Yokohama Air Spring 300-2r Double Convoluted Actuator

Details pictures 2 of AIRSUSTECH air spring F-300-2R:

Punch Machine Air Spring S-300-2r Yokohama Air Spring 300-2r Double Convoluted Actuator

Details pictures 3 of GUOMAT air spring F-300-2R:

Punch Machine Air Spring S-300-2r Yokohama Air Spring 300-2r Double Convoluted Actuator

Bulk product pictures of GUOMAT Air spring for punching press machine:

Punch Machine Air Spring S-300-2r Yokohama Air Spring 300-2r Double Convoluted Actuator
