    FS70-7 Contitech Air Bags EB-165-65 Single Convoluted Air Spring Festo

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949:2009
    Delivery Time : 3-8 Working Days
    Model Number : 1B7070
    • Product Details
    • Company Profile

    FS70-7 Contitech Air Bags EB-165-65 Single Convoluted Air Spring Festo

    FS70-7 Contitech Air Bags Festo Eb-165-65 Single Convoluted for Customer Customized



    AIRSUSTECH:1B7070 Specific parameters and specifications:

    Top Plate Hole/Stud: 3 Pieces
    Top Plate Hole/Stud: 2 PiecesXM8X1.25
    Bottom Plate Hole/Stud: 2 PiecesXM8X1.25
    Air inlet:G1/2
    Top Cover Plate: 4.13 inches / 105 mm
    Bottom Cover Plate Diameter: 4.13 inches / 105 mm
    Collapsed Height: 2.36 inches / 60 mm
    Screw Center Distance of Top Cover Plate : 1.75 inches / 44.5 mm
    Screw Center Distance of Bottom Cover Plate : 1.75 inches / 44.5 mm
    Rubber Bellows Natural Diameter : 150 mm
    Rubber Bellows MAX Diameter:Φ165 mm
    The Working Stroke : MAX 110 mm to MIN 50 mm
    Maximum Height : 4.33 inches / 110mm
    Minimum Height :1.97 inches / 50 mm


    OEM Original Equipment Manufacturer:

    References Numbers
    Phoenix : SP 1 B 05
    Phoenix : SP1B05
    Festo : EB-165-65
    Festo : EB 165 65
    Festo : EB16565
    Weforma : WBE 200-E1
    Weforma : WBE 200 E1
    Weforma : WBE200E1
    Contitech : FS 70-7
    Contitech : FS70-7
    Contitech : FS707

    AIRSUSTECH 1B7070 Vibration isolation - dynamic characteristic values

    Design height H: recommended 90mm, minimum 70mm
    Pressure p [bar]345678Vol V [l]
    Force (Load) [KN]2.73.74.75.76.67.79
    Spring rate [N/cm]1040127015301770206023259
    Natural frequency [Hz]3.12.92.92.82.82.79

    AIRSUSTECH 1B7070 Pneumatic application - static characteristic values

    Force F [kN]
    Pressure p [bar]345678Vol.[l]
    Height H [mm] 1002.23.144.85.76.61
    902.73.64.65.66.57.50.9
    803.14.15.16.27.38.30.8
    703.44.55.66.77.990.7
    603.64.867.28.49.50.6


    How to improve the wear resistance of air spring rubber airbags?


    Today, the gap between domestic air springs and imported air springs is getting smaller and smaller. Proper use and attention to maintenance are ways to extend the life of air springs. Maintenance serves to extend the life of the air spring. It must be based on the superior quality of the air spring rubber bladder itself. In the production process, what methods can improve the wear resistance of air spring rubber airbags? In addition to the most basic work in the vulcanization process, you need to pay attention to the following points:
    1. The smaller the particle size of the general filler, the lower the dispersibility, surface activity and structural structure, and the worse the wear resistance. The optimum amount is BR90-100 parts, the oil-filled SBR is 60-70 parts, and the SBR and IR are 50-. 55 parts, NR is 45-50 parts.

    Other kinds of AIRSUSTECH air springs for industrial machine:
    Fs70-7 Contitech Air Spring Festo Eb-165-65 Single Convoluted Air Spring for Small Load Machine
    GUOMAT air spring production line:
    Fs70-7 Contitech Air Spring Festo Eb-165-65 Single Convoluted Air Spring for Small Load Machine

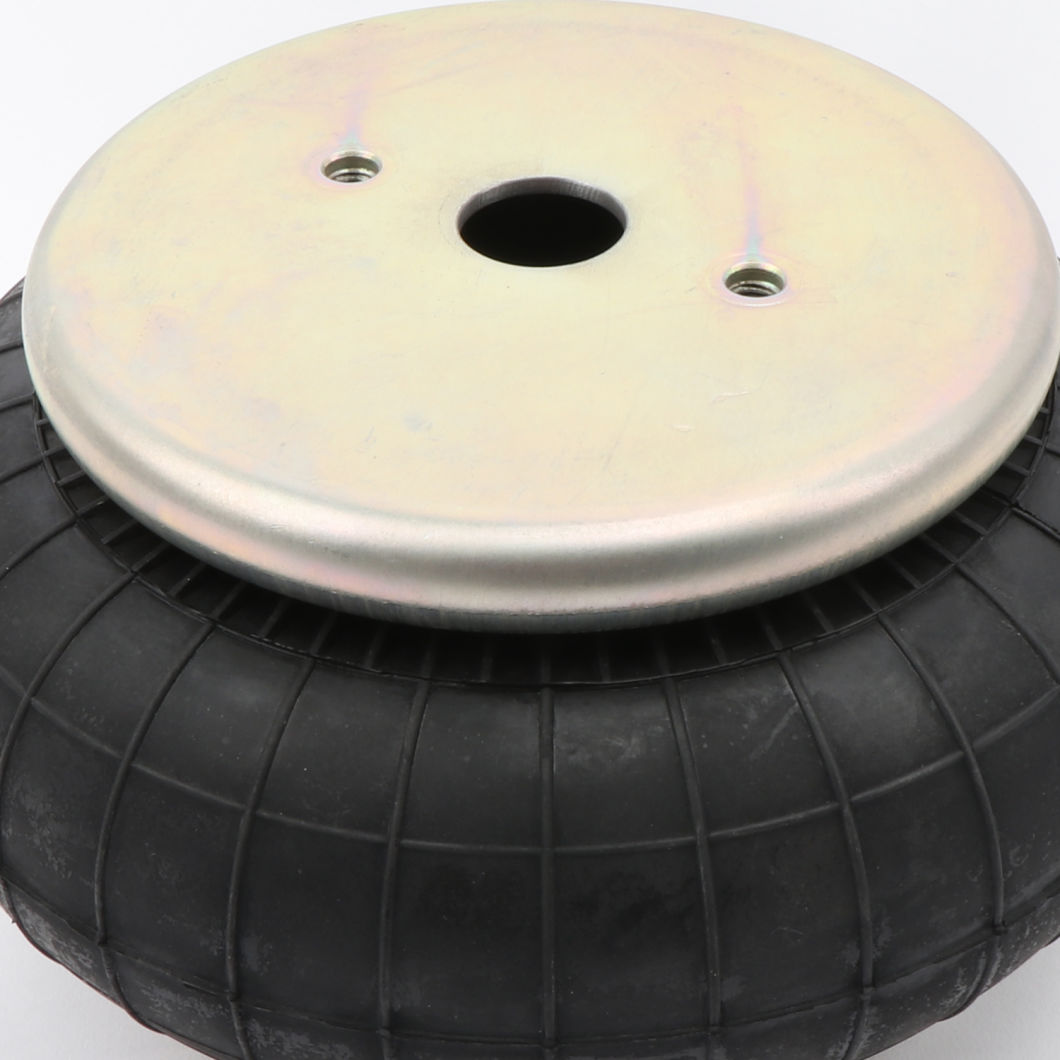

    Details pictures of air spring 1B7070:

    Fs70-7 Contitech Air Spring Festo Eb-165-65 Single Convoluted Air Spring for Small Load Machine
    Fs70-7 Contitech Air Spring Festo Eb-165-65 Single Convoluted Air Spring for Small Load Machine
    Fs70-7 Contitech Air Spring Festo Eb-165-65 Single Convoluted Air Spring for Small Load Machine

    ModelPath

    0.7Mpa

    Max

    Capacity

    0.7Mpa

    Frequency

    TripWeight
    0.2Mpa0.5Mpa0.7MpaMinimum heightSafe height
    380150J-13004051323344849071.94651707.4
    360140J-1280380880250038701.95651607.25
    320128J-1230350845237631202.2651454.85
    300130J-1240320798213031032.08601504.5
    260135J-1170280425115016702.4551553.1
    235150J-1180255441120517402.29651722.85
    235118J-1180255474118516842.52601362.8
    215128J-112523028776010713.19551452.5
    188130J-11202101674386363.25551491.9
    150086J-11061601493955663.42551001.4
    130070J-11001421594226013.4853831.35
