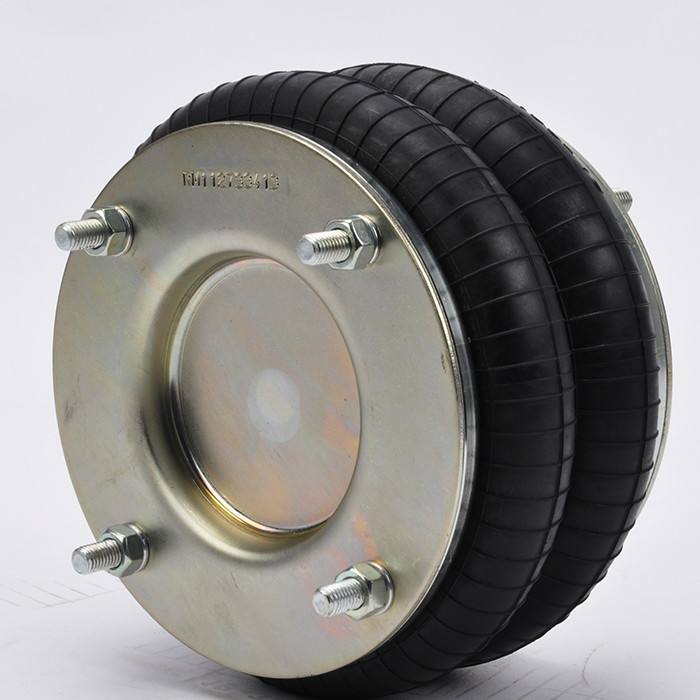

Air Spring Actuator FD 138-18 DS Contitech Air Spring Double Convolution Continental For Paper Mills

FD 138-18 DS Contitech Air Spring product description:

The air spring shock absorber FD 138-18 DS Contitech Air Spring can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber FD 138-18 DS Contitech Air Spring to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber FD 138-18 DS Contitech Air Spring must be used to absorb the force

• Before disassembling the air spring shock absorber FD 138-18 DS Contitech Air Spring , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber FD 138-18 DS Contitech Air Spring shall not be in contact with other parts

FD 138-18 DS Contitech Cross OEM Original Equipment Manufacturer:

AIRSUSTECH Part Number:2B8X2

FD 138-18 DS Contitech​ Technical data

❶Nut/blind nut

Top plate screw (nut) teeth: 4 x M10
The screw center distance of the top cover plate: 155.5 mm
Screw (nut) teeth of the bottom cover plate: 4 x M10
The screw center distance of the bottom cover plate: 155.5 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet: G1/2
The screw center distance between the air hole and the nut: 72.75 mm

❸Cover plate
Top plate diameter: 184 mm
Diameter of the bottom cover: 184 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 230 mm
Natural diameter of rubber bellows: 205 mm
Working stroke: minimum 75 mm to maximum 250 mm
Maximum height: 250 mm
Minimum height: 75 mm
Stroke height: 175 mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
With belt loop: a belt loop
