    S-240-3 Triple Convoluted Air Bag

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949:2009
    Delivery Time : 3-8 Working Days
    Model Number : F-240-3
    • Product Details
    • Company Profile

    S-240-3 Triple Convoluted Air Bag

    S-240-3 Rubber Air Spring Yokohama Shock Hardware Punch F-240-3 For Paper Machine



    AIRSUSTECH F-240-3 this kind of air spring can use for Punching machine is a machine press used to cut holes in materials. It can be small, can be operated manually, and can accommodate a simple mold, or it can be very large, operated by CNC, with a multi-station turret, and can accommodate larger and more complex molds. Air spring can reduce the damage to the product caused by the vibration and the damage to the ground, and has a good effect of isolating the vibration.
    Net Weight:4.35 KG

    Gross Weight:4.85 KG

    Package Size:165mm*295mm*295mm


    S-240 Yokohama Air Spring Catalogue items Detailed Parameter Table:

    GUOMAT NO.Reference No.Hight H(mm)Commonly Maximum Stroke(mm)The Largest Diameter When Compressed(mm)
    Design High(mm)Maximum High(mm)Minimum Height(mm)
    F-240-4S-240-4206316111±80300
    F-240-3S-240-315223282±60300
    F-240-2S-240-29814853±40300
    F-240-1S-240-17211040±30

    340


    AIRSUSTECH NO.Reference No.Standard Height,Internal Pressure 0.49 M pa When The General ValueUsing Maximum Internal Pressure (M pa)Internal Pressure (M pa)
    Effective Area (Cm2)Volume(L)Load (K n)Dynamic Spring Parameters (N/Min)Vibration Frequency (Hz)
    F-240-4S-240-445010.122.22351.60.882.9-3.9
    F-240-3S-240-34507.322.23241.90.882.9-3.9
    F-240-2S-240-24504.422.25202.40.882.9-3.9
    F-240-1S-240-14503.522.27652.90.69

    2.9-3.9



    This item can fits for many kinds of machines

    1. Actuators for concrete block machinery
    2. Mineral equipment air spring,
    3. Directional-change actuators in roller conveying systems
    4. Actuators for flask lifts on foundry shake-outs
    5. Mountain bike
    6. Actuators on bottle and carton filling machines
    7. Bin-tilting actuators (for ease of access)
    8. Paper machine equipment air spring air spring,
    9. Actuators on transfer tables
    10. Vibrating screen cover clamping device
    11. Actuators in sand blast rooms
    12. Actuators in glass grinding rooms
    13. Industrial laundry equipment actuators
    14. Crawling pipeline machine
    punching machine
    machine
    cnc machine
    cutting machine
    machine tool
    press
    press machine
    hydraulic machine
    die cutting machine
    hydraulic press
    bending machine

    Bulk product pictures of GUOMAT Air spring for punching machine:
    Yokohama Shock Absorbers S-240-3 Hardware Punch Guomat F-240-3 Air Spring or Isolation of Flex Testing Machines
    Yokohama Shock Absorbers S-240-3 Hardware Punch Guomat F-240-3 Air Spring or Isolation of Flex Testing Machines

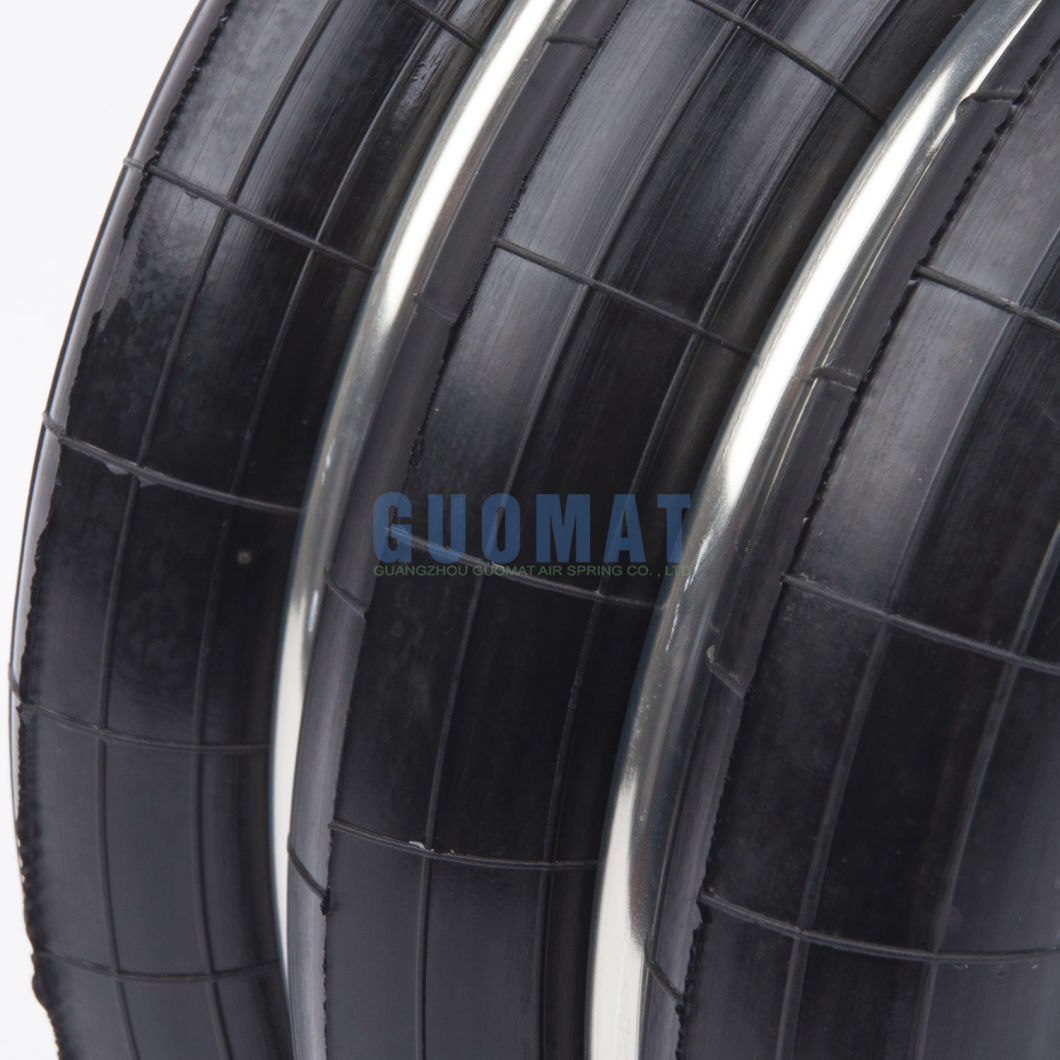

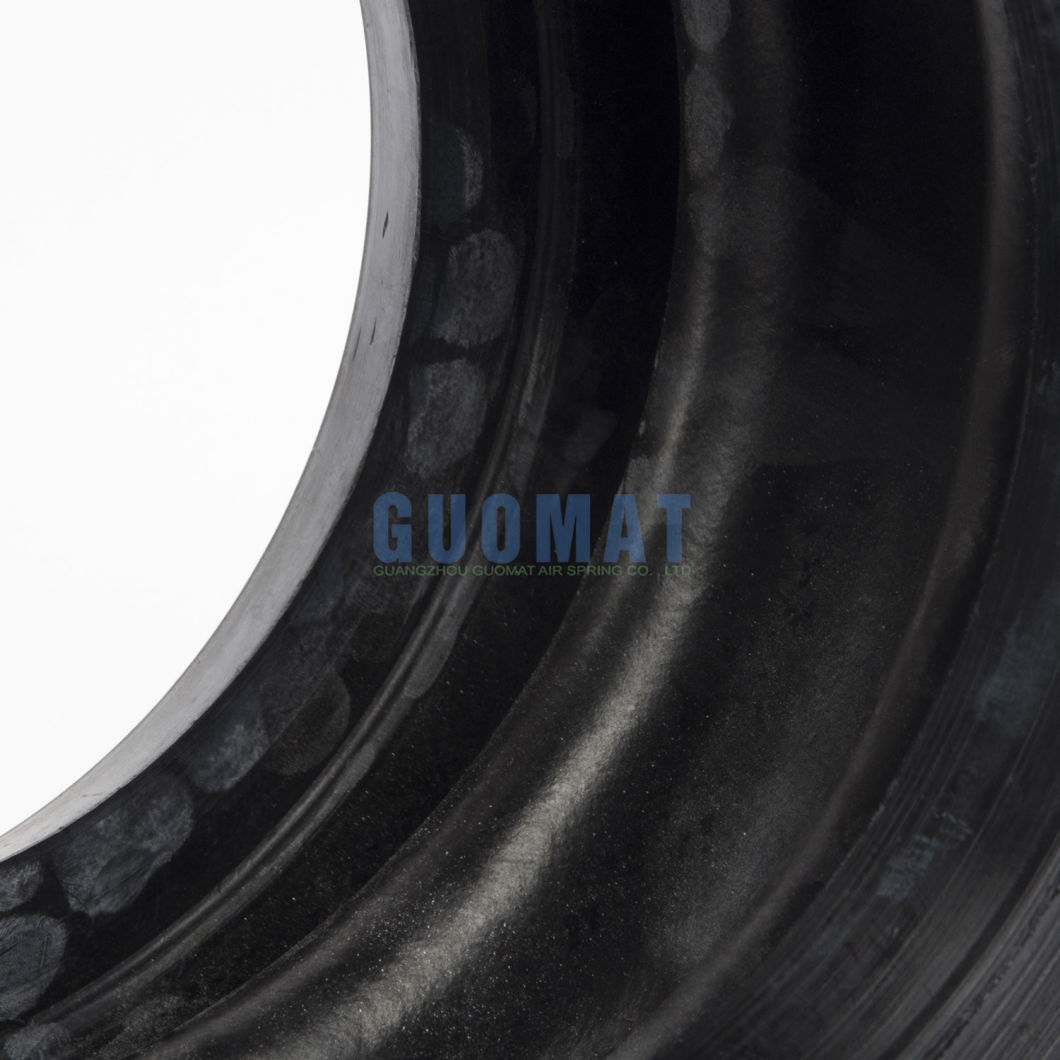

    Details pictures of air spring S-240-3 :
    Yokohama Shock Absorbers S-240-3 Hardware Punch Guomat F-240-3 Air Spring or Isolation of Flex Testing Machines
    Yokohama Shock Absorbers S-240-3 Hardware Punch Guomat F-240-3 Air Spring or Isolation of Flex Testing Machines
    Yokohama Shock Absorbers S-240-3 Hardware Punch Guomat F-240-3 Air Spring or Isolation of Flex Testing Machines
    Yokohama Shock Absorbers S-240-3 Hardware Punch Guomat F-240-3 Air Spring or Isolation of Flex Testing Machines
