OEM Manufacturer:
AIRSUSTECH 1K130070
Goodyear Original:1B5-500
Goodyear Original:1B5 500
Goodyear Original:1B5500

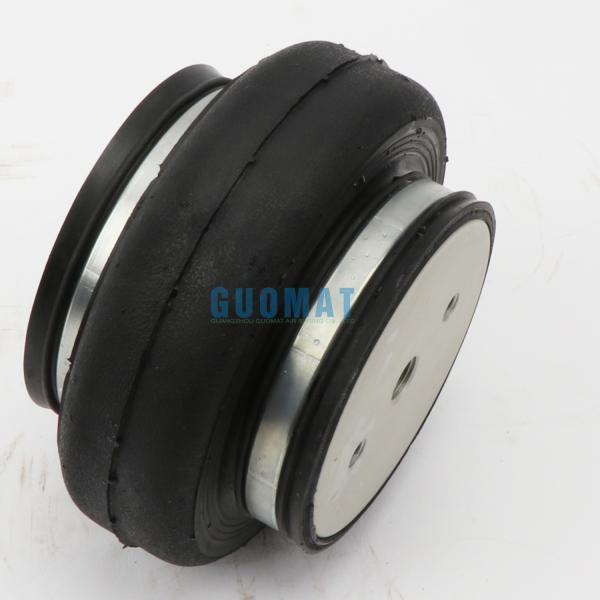

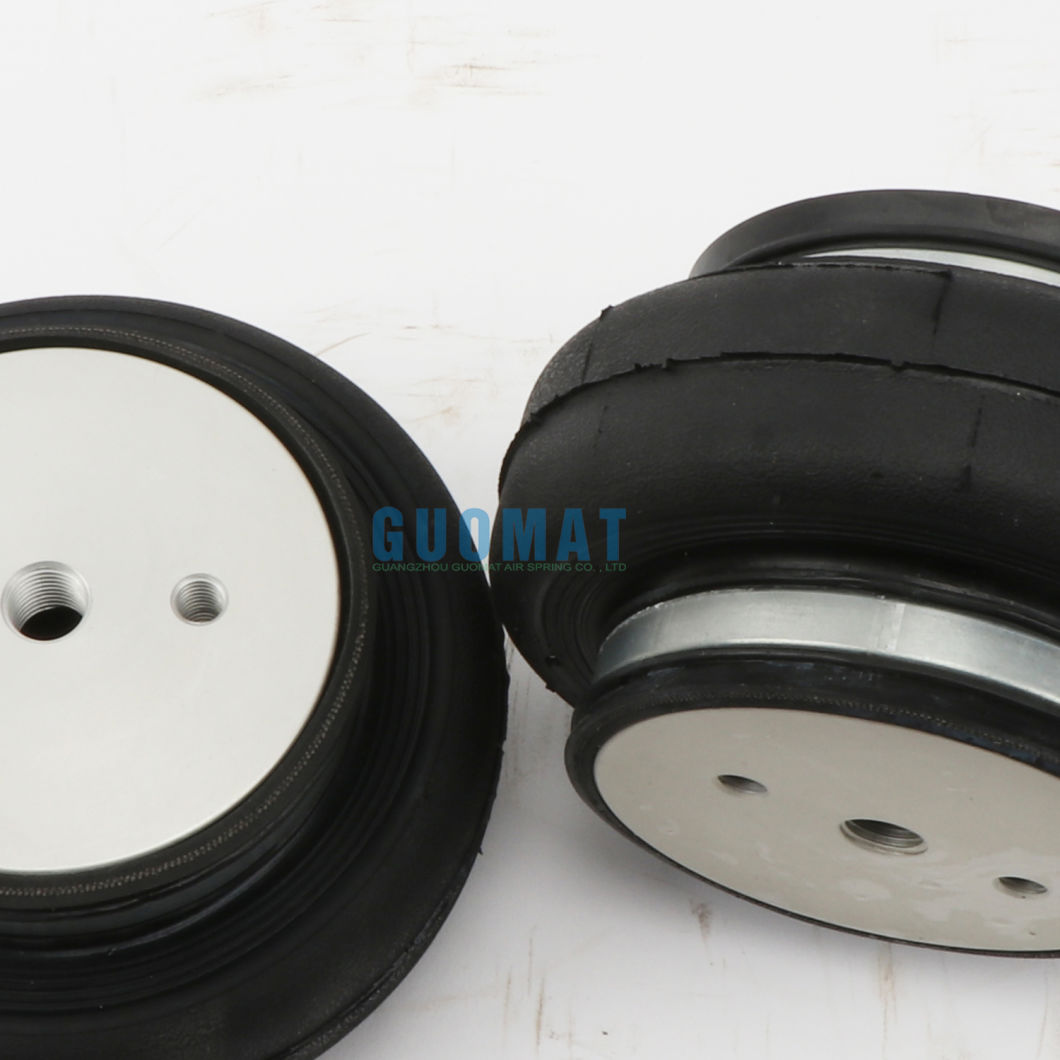

AIRSUSTECH 1K130070 Industrial Convoluted Air Spring Specifications
Nut / Blind Nut
Top Cover Plate Screw number: 2 pcs
Bottom Cover Plate Screw number : 2 pcs
The Distance of Nut:44.5 mm
The Screw Of Nut: M8
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
Cover Plate
Top Cover Plate Diameter: 85 mm
Bottom Cover Plate Diameter: 85 mm
Rubber Bellows
Rubber Bellows Through Diameter: 130 mm
In 0.7 pa,Rubber Bellows Diameter :150 mm
The Working Stroke : MIN 50 mm to MAX 100 mm
Rubber Bellows Design Height :70 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
Without Piece Of Girdle Hoop
Technical performance parameter list of AIRSUSTECH 1K130070 air
spring:
Bearing
load
Power
(kg) | Inflation pressure | 0.2MPa | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa | 0.7MPa | 0.8MPa | 0.7MPa
Volume(dm³) |
|---|
| Installation height | | | | | | | |
|---|
| 50(mm) | 157 | 219 | 286 | 376 | 450 | 523 | 611 | 0.24 |
| 60(mm) | 122 | 183 | 252 | 328 | 404 | 472 | 545 | 0.37 |
| 70(mm) | 107 | 170 | 238 | 304 | 377 | 439 | 501 | 0.46 |
| 80(mm) | 100 | 153 | 203 | 264 | 323 | 378 | 432 | 0.52 |
| 90(mm) | 73 | 112 | 160 | 209 | 260 | 300 | 334 | 0.58 |
| 100(mm) | 11 | 45 | 79 | 113 | 148 | 169 | 190 | 0.62 |
| Stiffness and frequency at design height | Vertical stiffness(Kg/cm) | 60 | 89 | 119 | 148 | 181 | 189 | 208 | |
| Stiffness and frequency at design height | Natural frequency Hz | 1.23 | 1.19 | 1.17 | 1.15 | 1.14 | 1.08 | 1.06 | |
| Stiffness and frequency at design height | Natural frequency cpm | 74 | 71 | 70 | 69 | 68 | 65 | 64
|
The shipper needs an air suspension device.
* Driver comfort is higher.
* Increase resale value.
* Protect hinges, lamps, rivets and all trailer hardware.
The reason for the increase in air suspension usage:
* Suspension manufacturers have built a greater degree of
durability,
Longer warranty period.
* Requires greater axis offset.
Air springTrucks, trailers and buses
Super-Cushion® air spring for truck, trailer bus, and cab and seat
spring protection
Goods, providing constant trailers and providing long-term,
trouble-free service.
Super-Cushion® air springs provide new high capacity for your
trucks, trailers and buses
And long life They offer a quiet, buffering ride. Trucks, trailers
and buses
The body is longer than the steel spring, because the vibration is
smaller. driver
Ride more comfortable, become exhausted, remain vigilant. plus
The goods have better shock and vibration protection. Whenever you
want to add
A shaft, Super-Cushion® air spring is suitable.
| Goodyear Air Spring OE NO. | Goodyear Air Spring OE Bellows NO. | Goodyear order NO. | Bumper or not | Goodyear Air Spring OE NO. |
| C 1S8-003 | 57916000700094 | 20810685 | Y | C 1S8-003 |
| GDYR 004-1S9 MID SIZE SLEEVE | 57918100100000 | 20315510 | Y | GDYR 004-1S9 MID SIZE SLEEVE |
| GDYR 010-1S9 MID SIZE SLEEVE | 57918100200000 | 20315511 | Y | GDYR 010-1S9 MID SIZE SLEEVE |
| GDYR 003-1S9 MID SIZE SLEEVE | 57918100300000 | 20315512 | Y | GDYR 003-1S9 MID SIZE SLEEVE |
| 1B5-500 | 1B5-500 | 20054275 | Y | 1B5-500 |
| ENIDINE YI-1B5-500 | 57991250000019 | 20095464 | Y | ENIDINE YI-1B5-500 |
| APFLU ACS 1B5-500 | 57991250000068 | 20095466 | Y | APFLU ACS 1B5-500 |
| 1B5-502 | 57991250200000 | 20095467 | Y | 1B5-502 |
| ENIDINE YI-1B5-502 | 57991250200019 | 20095468 | Y | ENIDINE YI-1B5-502 |
| 1B5-503 | 57991250300000 | 20095469 | Y | 1B5-503 |
| ENIDINE YI-1B5-503 | 57991250300019 | 20095470 | Y | ENIDINE YI-1B5-503 |
| ENIDINE YI-1B5-504 | 57991250400019 | 20095471 | Y | ENIDINE YI-1B5-504 |
| 1B5-510 | 57991251000000 | 20054276 | Y | 1B5-510 |
| 1B5-510 Bellows Air Spring | 1B5-510 | 20476836 | N | 1B5-510 Bellows Air Spring |
| ENIDINE YI-1B5-510 | 57991251000019 | 20095472 | Y | ENIDINE YI-1B5-510 |
| C 1B5-510 | 57991251100090 | 20805959 | Y | C 1B5-510 |
| C 1B5-510 | 57991251100094 | 20811219 | Y | C 1B5-510 |
| 1B5-512 | 57991251200000 | 20095474 | Y | 1B5-512 |
| ENIDINE YI-1B5-512 | 57991251200019 | 20095475 | Y | ENIDINE YI-1B5-512 |
| C 1B5-500 | 57991251300090 | 20810730 | Y | C 1B5-500 |
| C 1B5-800 | 57991251400090 | 20810731 | Y | C 1B5-800 |
| C 1B5-801 | 57991251500090 | 20810732 | Y | C 1B5-801 |
| P 1B5-500 | 57991251600091 | 20810606 | Y | P 1B5-500 |
| P 1B5-510 | 57991251700091 | 20811275 | Y | P 1B5-510 |
| 1B5-520 | 1B5-520 | 20095476 | N | 1B5-520 |
| 1B5-520 RP | 57991252000004 | 20577460 | Y | 1B5-520 RP |
| ENIDINE YI-1B5-520 | 57991252000019 | 20095477 | Y | ENIDINE YI-1B5-520 |
| AIR LIFT 58103 1B5-520 | 57991252000021 | 20095479 | Y | AIR LIFT 58103 1B5-520 |
| 1B5-521 | 1B5-521 | 20095480 | N | 1B5-521 |
| ENIDINE YI-1B5-521 | 57991252100019 | 20095481 | Y | ENIDINE YI-1B5-521 |
| 3B12-335 Bellows Air Spring | 3B12-335 | 20141254 | Y | 3B12-335 Bellows Air Spring |
| 3B12-336 HENDRICKSON HEBRON 004645 | 57893233600000 | 20141257 | Y | 3B12-336 HENDRICKSON HEBRON 004645 |
| 3B12-336 HENDRICKSON HEBRON 004645 | 57893233600004 | 20141258 | Y | 3B12-336 HENDRICKSON HEBRON 004645 |
| 3B12-337 | 57893233700000 | 20156098 | Y | 3B12-337 |
| 3B12-337 Bellows Air Spring | 3B12-337 | 20156099 | Y | 3B12-337 Bellows Air Spring |
| 3B12-338 | 57893233800000 | 20156259 | Y | 3B12-338 |
