    W01-358-7925 Truck Helper Bags 2H320240 0.8Mpa Truck Rear Suspension Air Bags

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2H320240
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    W01-358-7925 Truck Helper Bags 2H320240 0.8Mpa Truck Rear Suspension Air Bags

    W01-358-7925 Firestone Rubber Air Spring Double Convolutions AIRSUSTECH 2H320240


    AIRSUSTECH 2H320240 Cross Firestone Air Spring

    Manufacturer brand:AIRSUSTECH

    Manufacturer ID:2H320240
    AIRSUSTECH 2H320240 can replace the Part # W013587925,which is the same size as W01-358-7925.
    Firestone Part # Variations: W01-358-7925,
    Firestone Part # :WO13587925,
    Firestone Part # WO1-358-7925
    Firestone Additional Info: WO1-358-7925,
    Firestone 28C Style AirSpring,

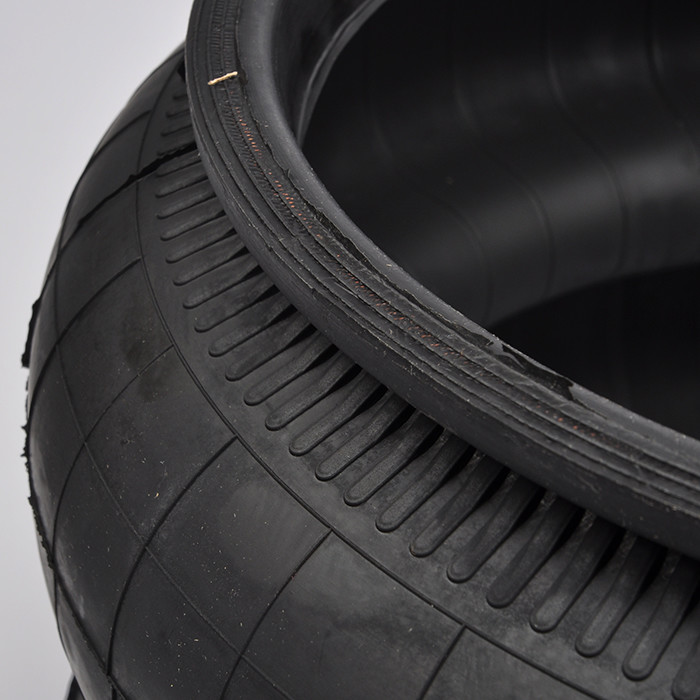

    Firestone Rubber Bellows

    Firestone Rubber bellows only

    Style 28 Two Ply Bellows
    Ribbed neck aluminum bead,rings (equal spacing), 45 mm,bolts, nuts, washers:W01-M58-7531;W01 M58 7531;W01M587531
    Rolled plate assembly,1/2 blind nuts, 3/4 NPT:SEE NOTE BELOW
    Rubber bellows only:W01-358-7925;W01 358 7925;W013587925
    Assembly weight.:.8.62 kg.
    Force to collapse to minimum height (@ 0 BAR):169N.

    Design Height (mm)241Maximum Diameter @ 7 Bar (mm)442
    Load (at Design Height) at: 3 Bar (kN)22.2Maximum Height (mm)84
    Load (at Design Height) at: 5 Bar (kN)51.6Maximum Stroke (mm)173
    Load (at Design Height) at: 7 Bar (kN)54.1Minimum Usable Height (mm)257
    Natural Frequency (@5 Bar)(fn(Hz)1.7Force in kN @ 5 Bar at Stroke of 25 mm60.5
    % of Isolation at Forced Frequency 7 Hz92.8Force in kN @ 5 Bar at Stroke of 50% of Max Stroke50.9
    % of Isolation at Forced Frequency 13 Hz98.3Force in kN @ 5 Bar at Stroke of Maximum Stroke34.4
    % of Isolation at Forced Frequency 25 Hz99.5Style Cross-Ref High Strength Style Number201
    Material2-Ply Standard Cord
