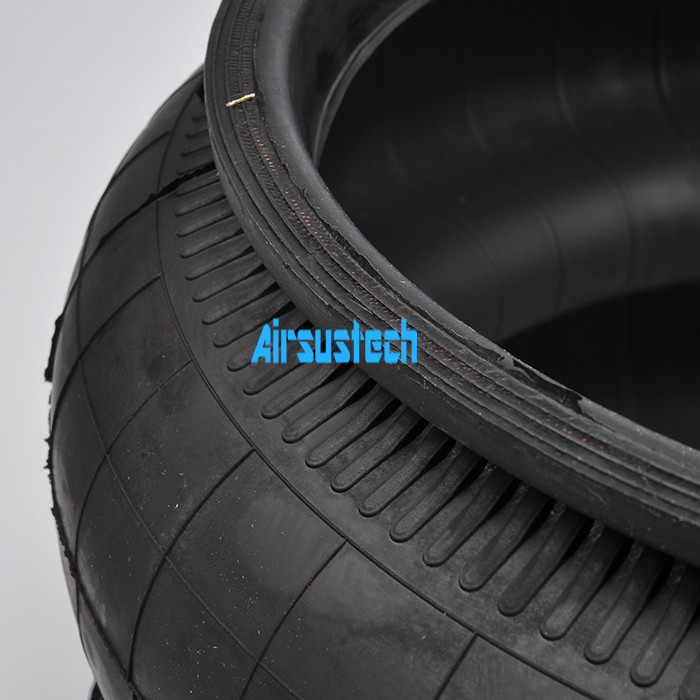

    W01-358-0205 Rubber Air Spring 2B0205 Air Helper Bags AIRSUSTECH

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B0205
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    W01-358-0205 Rubber Air Spring 2B0205 Air Helper Bags AIRSUSTECH

    Rubber Air Spring W01-358-0205 Firestone Design Height 241.3MM AIRSUSTECH 2B0205


    Industrial Double Convoluted Air Spring Specifications


    Manufacturer Brand:AIRSUSTECH

    Manufacturer ID:2B0205

    Firestone Style 203
    Two Ply Bellows
    Firestone ID:W01-358-0205

    Firestone ID:W01 358 0205

    Firestone ID:W013580205

    Rubber bellows only
    W01-358-0205

    Contitech FD 1330-25 RS UNF,

    Contitech FD 1330-25 RS UNF,


    Force to collapse to minimum height (@ 0 PSIG):40 lbs.


    bellows type industrial air spring,

    double helix,

    effective area 1330cm square,

    maximum stroke 25cm,

    stud bolt installation,

    inch seal ring
    Manufacturer: Mainland
    Maximum inflation pressure
    120 psi
    series
    RS
    Bellows type
    Double convolution
    Assembly weight
    25 pounds


    Bead ring Type4Maximum Diameter @ 7 Bar (mm)508
    Dim. C (Bolt Circle Diameter mm)419Maximum Height (mm)84
    # of Bolts (each ring)24Maximum Stroke (mm)183
    Design Height (mm)241Minimum Usable Height (mm)267
    Load (at Design Height) at: 3 Bar (kN)34.9Force in kN @ 5 Bar at Stroke of 25 mm86.3
    Load (at Design Height) at: 5 Bar (kN)80.6Force in kN @ 5 Bar at Stroke of 50% of Max Stroke75.1
    Load (at Design Height) at: 7 Bar (kN)84.5Force in kN @ 5 Bar at Stroke of Maximum Stroke52.1
    Natural Frequency (@5 Bar)(fn(Hz)1.6Style Cross-Ref High Strength Style Number218
    % of Isolation at Forced Frequency 7 Hz93.9Material2-Ply Standard Cord
    % of Isolation at Forced Frequency 13 Hz98.5% of Isolation at Forced Frequency 25 Hz99.6

    Other Uses


    • Use as a protective boot or flexible coupling
    • Use when the application requires a rapid flow of air in and out of the air spring
    • Stack multiple air springs together for increased stroke capabilities
