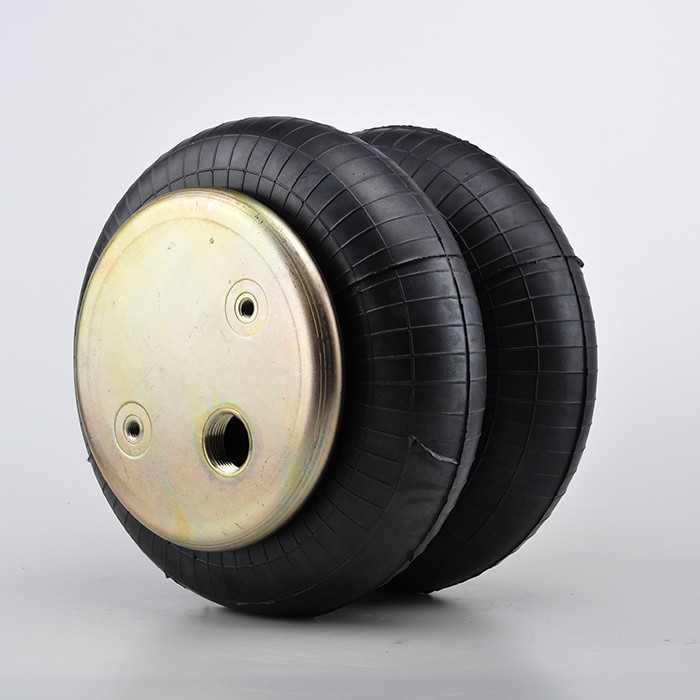

    2B9-216 Rubber Air Spring 16unc 578923202 Truck Air Bags Guomat

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6900
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    2B9-216 Rubber Air Spring 16unc 578923202 Truck Air Bags Guomat

    2B9-216 Rubber Air Spring Actuator with 3/4 NPT Air Inlet Bellows 578923202 For Clothes Organizer


    OEM Original Equipment Manufacturer:

    BELLOW NumbersCOMPLETE Numbers
    AIRSUSTECH:2B6900
    AIRSUSTECH:2B200
    Firestone : W01-358-6900
    Firestone : W01 358 6900
    Firestone : W013586900
    Goodyear : 2B9-200
    Goodyear :2B9 200
    Goodyear : 2B9-202
    Goodyear : 2B9-216
    Contitech : FD 200-19 320
    Contitech : FD 200 19 320
    Contitech : FD200 19 320

    FIRESTONE FLEX 20
    FIRESTONE W01-358-0138
    FIRESTONE W01 358 0138
    FIRESTONE W013580138

    CONTITECH FD 20019 S / 895 N
    CONTITECH FD20019S / 895 N
    095-0009Hendrickson : S8768/458433
    GOODYEAR 2B 9-200: 578423202
    578923202Triangle: 6325
    Triangle: 4320
    PHOENIX 2B 12R
    PHOENIX 2B12R
    Dayton : 3546910
    PIRELLI T20 86600Leland : Sc2011
    AIRKRAFT 114001Navistar : 554783C1
    Dina : A812719/AZ812719
    SAF Holland : 57006910
    Trailers De : 133128
    Brake & Wheel : M3501
    Ridewell : 1003586910C
    Tuthill : 1371
    Watson&Chalin : AS-0001/AS-0156G


    Specifications and Technical Data of 2B9-216

    Goodyear part number: 2B9-216 / 2B9216 / 2B9 216
    Firestone part number: W01-358-6900 / W013586900 / W01 358 6900
    Compressed height: 3.12
    Number of top plates: 3079
    Top cover diameter: 6.31 inches / 160 mm
    Number of bottom pistons: 3090
    Bottom cover diameter: 6.31 inches / 160 mm
    Screw center distance: 89 mm
    The distance between the nuts is 44.5 mm
    Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
    Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
    Rubber bellows MAX diameter: 251 mm
    Rubber bellows natural diameter 224 mm
    Working stroke: up to 260 mm to MIN 75 mm
    Air vent / air inlet: 3/4 NPTF
    Firestone Corrugated Tube Number: 20
    Goodyear Bellows Number: 578-92-3-202 / 578923202/578 92 3 202
    Number of grids: 1371
    Hendrickson Trailer No.: S-8768
    Hendrickson Truck Number: 45843-3
    Ridewell number: 1003586910C
    Triangle part number: 4320
    Triangle bellows number: 6325
    Watson&Chalin#:AS-0001

    Description Assembly Order No.
    Blind nuts, 1/4 NPT W01-358-6910
    Blind nuts, 1/4 NPT, bumper W01-358-6911
    Blind nuts, 3/4 NPT W01-358-6900
    Blind nuts, 3/4 NPT, bumper W01-358-6901
    Countersunk steel bead rings,
    13/4 bolts, nuts, washers W01-358-6923
    Rubber bellows only W01-358-0138


    The composition of convoluted air springs

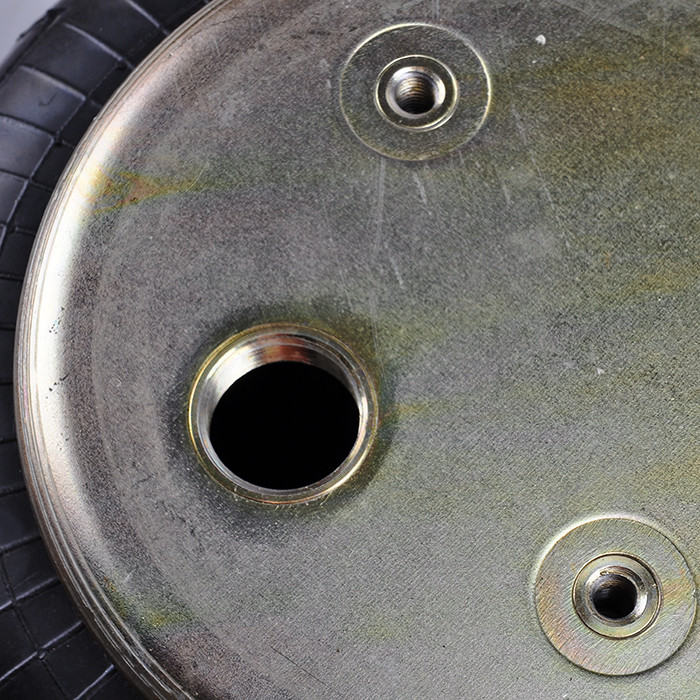

    Upper Steel Plate: upper cover plate is bearing pressure and seal air inside
    Waist ring: Stable part skins to prevent deformation
    The connotation of screw hole: fixed as the installation of air spring in car or equipment
    Gas-Filled hole / Air Inlet: By filling air porosity for inflatable air spring
    Flexible bellows: The main part, can lock the air and flexible activities up and down
    Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision, You can choose to have also can not
    The connotation of screw hole: fixed as the installation of air spring in car or equipment
    Lower steel Plate: Lower steel Plate is bearing pressure and seal air inside


    How to Calculation For Pneumatics, Such as

    • Mass To Be Lifted 2000 M (Kg)
    • Desired Stroke 190 S Min (Mm)
    • Number Of Air Springs 4 N
    • Minimum Installation Height 190 H Min (Mm)
    • Minimum Installation Diameter 500 D (Mm)
    • Air Pressure 6 P (Bar)


    2B9-216 Rubber Air Spring 16unc 578923202 Truck Air Bags Guomat2B9-216 Rubber Air Spring 16unc 578923202 Truck Air Bags Guomat
