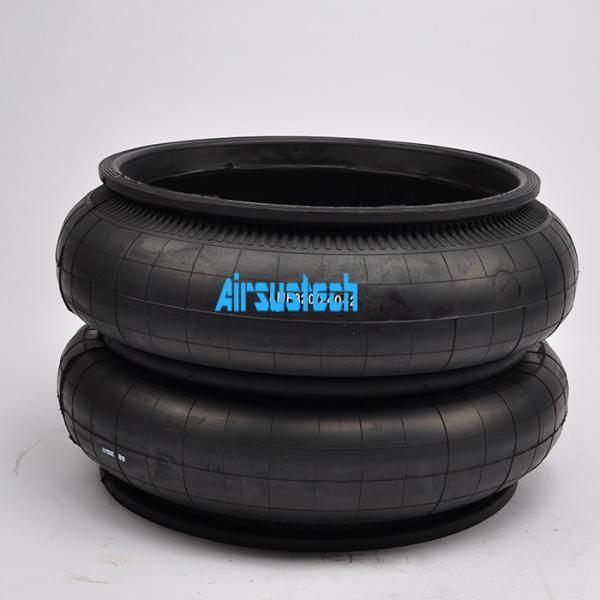

    W01-358-0259 Rubber Air Spring 2B 0259 Goodyear Super Cushion Air Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B0259
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    W01-358-0259 Rubber Air Spring 2B 0259 Goodyear Super Cushion Air Spring

    W01-358-0259 Rubber Air Spring GOODYEAR 578923310 For Measuring Devices


    AIRSUSTECH 2B 0259 Specifications replaces W01-358-0259:


    2B 0259 Rubber bellow only


    Rubber Bellows

    Rubber Bellows Natural Diameter : 300 mm

    Rubber Bellows Natural Height : 241 mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Compressed height
    3.03"
    Maximum expansion height
    14.2"
    The maximum diameter
    13.4"
    Maximum inflation pressure
    120 psi
    Maximum stroke
    11.17 inches
    Inlet type
    Imperial
    Air inlet
    1/4"
    series
    C
    lowest temperature
    -76°F
    Maximum temperature
    158°F
    Bellows type
    Double convolution


    AIRSUSTECH 2B 0259 Other cross OEM:replaces W01-358-7444:


    BELLOW Number
    AIRSUSTECH 2B 0259
    FIRESTONE W01 358 0259

    FIRESTONE 22-1,5

    FIRESTONE 2095.0092

    GOODYEAR FLEX 556 2 3 8328
    GOODYEAR 578 92 3 310
    AIRKRAFT 114302

    AIRSUSTECH Supplier :2B 0259

    Firestone Trimmed: w01-358-0259

    Air Spring Supplier: ContiTech
    Competitor / Supplier Number: FD330-30369

    Air Spring Supplier: Goodyear
    Reference: 578923315
    Competitor / Supplier Number: 2B12-416

    Air Spring Supplier: Goodyear
    Reference: 578923310
    Competitor / Supplier Number: 2B12-446

    Air Spring Supplier: Triangle
    Reference: 6328
    Competitor / Supplier Number: 4369

    Suspension of supplier: Hendrickson
    FSIP OEM: W01-455-0259

    Suspension of suppliers: Hendrickson Trailer
    Competitor / Supplier Number: S9830

    Suspended supplier: Ridewell
    Competitor / Supplier Number: 1003580259C


    Firestone air springs:


    DescriptionAssembly Order No.
    Firestone Style 22-1.5
    Two Ply Bellows
    Firestone W01-358-7443
    Rubber bellows onlyFirestone W01-358-0259
    Countersunk steel bead rings, 1 5/8 bolts, nuts, washersFirestone W01-358-7480
    Assembly weight...................................................... 12.9 lbs.
    Force to collapse to minimum height (@ 0 PSIG) ..... 26 lbs.
