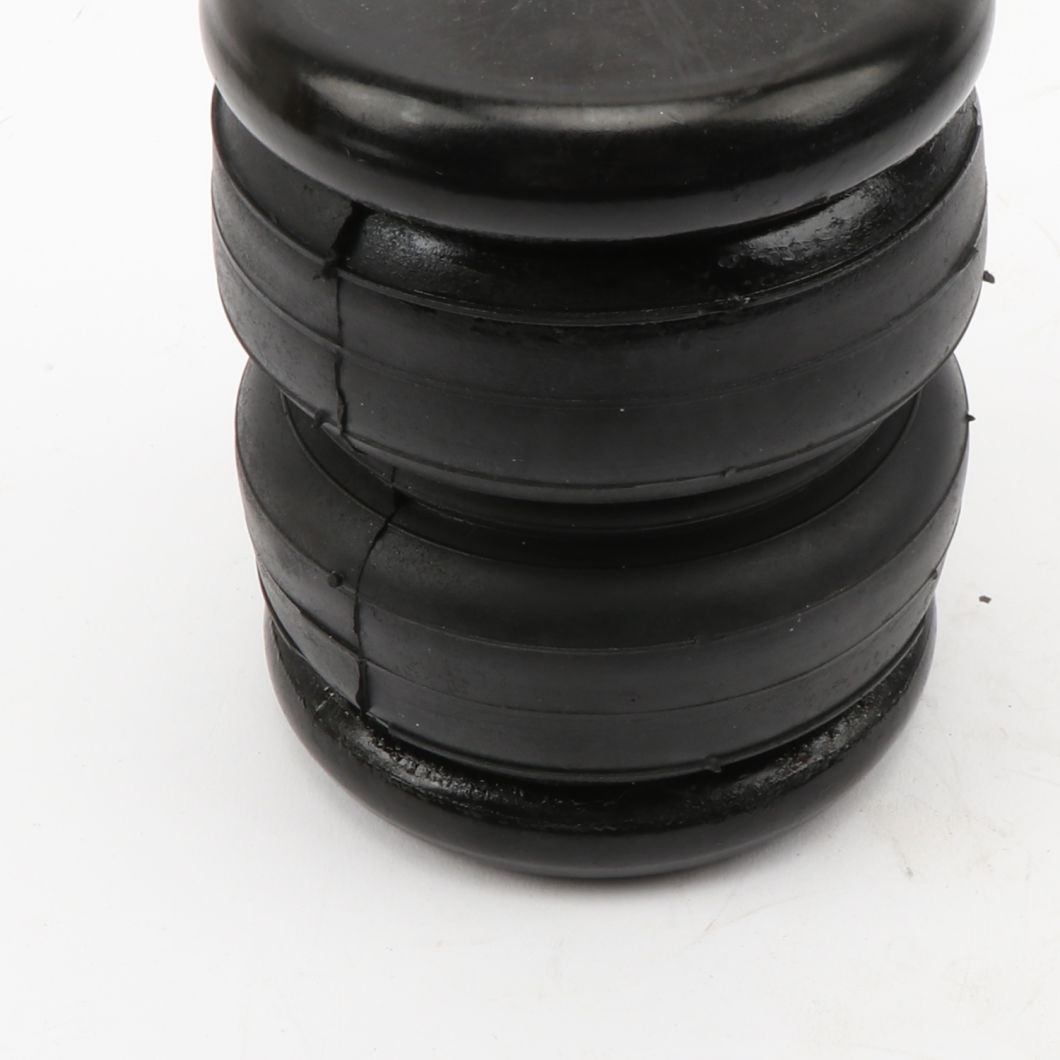

    2B2200 Air Spring Shocks GUOMAT Double Convoluted Rolling Lobe Air Spring

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B2200
    • Product Details
    • Company Profile

    2B2200 Air Spring Shocks GUOMAT Double Convoluted Rolling Lobe Air Spring

    2B2200 Air Spring Shocks Design H 80mm Double Convoluted Air Bag for Modification of Japan Cars

    The AIRSUSTECH 2B2200 is suitable for smaller cars and SUVs and can tow a small load of only 1000 pounds. This 2B2200 air spring product helps your vehicle squat when pulling heavy loads. This kit helps to drive comfortably with a lighter load while driving. Design and installation is simple and straightforward.


    AIRSUSTECH 2B2200 Specification:


    Nut/ Blind Nut
    Top cover screw (nut) teeth: 2 x 3 / 8-16UNC
    Top cover screw center distance: 44.5 mm


    Bottom cover screw (nut) teeth: 1 X 3 / 8-16UNC
    Bottom cover screw center distance: middle

    air hole / air inlet / air connector
    Air vent / air inlet: 1 / 4 NPT
    Center distance between air inlet and nut: 22 mm

    cover
    Top cover diameter (width): 97 mm
    Bottom cover diameter (width): 97 mm

    Rubber bellows
    Rubber bellows natural diameter: 100 mm
    Rubber bellows MAX diameter: 120 mm
    Design height: 124mm
    Bellows no.:2200

    bumper block / buffer block
    No Bumper Block

    Operating Temperature: 57Cº to -54Cº

    Twisted waist/waist ring
    Belt loop: two belt loops

    • Air spring volume saves space compared to other springs
    • Roller protects air springs from wear and increases load capacity
    • No drilling required - Most kits use existing holes in the vehicle frame for bolt mounting
    • Easy to install, ordinary car repairers can operate
    • All kits are compatible with most 5-wheel and gooseneck hooks

    2b2200 Air Suspension Springs Design Height 180 mm Double Convoluted Air Bag for Modification of Japanese Cars

    2b2200 Air Suspension Springs Design Height 180 mm Double Convoluted Air Bag for Modification of Japanese Cars


    Other kinds of AIRSUSTECH air springs:


    3E2200
    3E2300
    3E2400
    3E2400P01
    3E10X7
    3E11X3

    2E8X2
    2E8X2P01
    2E6X6
    2E6X6P02
    2E7X7
    2E7X7P01
    2E2200
    2E2300
    2E2500
    2E2501SLAM
    2E2501SLAM P02
    2E2600
    2E2700SLAM
    2E2700SLAMP02
    2E2800SL AM
