AIRSUSTECH:2B6951 Cross others OEM
| OEM References Numbers | References Numbers |
Firestone W01-358-6951 Firestone W01 358 6951 Firestone W013586951 | Triangle : 6332 Triangle : 4427 |
Contitech FD 200-25 Contitech FD 200 25 Contitech FD200-25 | Leland : Sc2125 |
| Goodyear 578923206 | Watson&Chalin : AS0119F |
Goodyear 2B9-253 Goodyear 2B9 253 Goodyear 2B9253 | Watson&Chalin: AS01451G |
AIRSUSTECH:2B6291
2B5291 | Ridewell : 1003586945C |

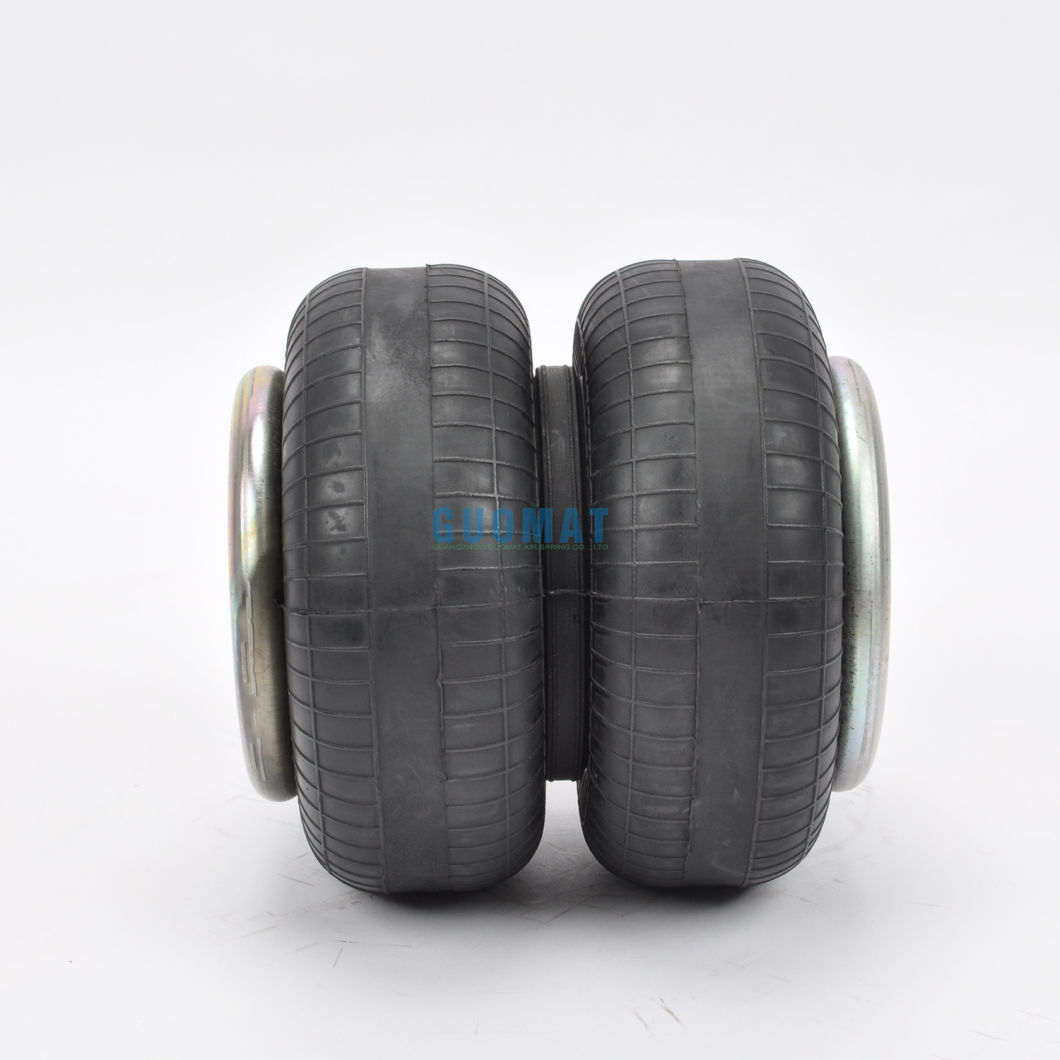

AIRSUSTECH:2B6951 Specific parameters and specifications:
| Compressed height | 3.03" |
| Maximum expansion height | 12.8" |
| The maximum diameter | 10.2" |
| Maximum inflation pressure | 120 psi |
| Maximum stroke | 9.77 inches |
| Inlet type | Imperial |
| Air inlet | 1/4" |
| series | C |
| lowest temperature | -76°F |
| Maximum temperature | 158°F |
| Bellows type | Double convolution |
| weight | 0.2 lb |
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 PiecesX3/8-16UNC
Screw Center Distance of Top Cover Plate : 3.5 inches / 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesX3/8-16UNC
Screw Center Distance of Bottom Cover Plate :3.5 inches / 89 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/8NPTF at the middle of the plate
Cover Plate
Top Cover Plate Diameter (Width): 6.4 inches / 160 mm
Bottom Cover Plate Diameter (Width): 6.4 inches / 160 mm
Rubber Bellows
Rubber Bellows Natural Diameter : 232.5mm
Rubber Bellows Natural Height : 235 mm
Bumper block / Buffer block
With Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Piece of Girdle Hoop
The drawing and data of AIRSUSTECH 2B6951 air spring:
The structure of the air spring:
1, is a rubber component, which is formed by vulcanization of a
cord layer, an inner and outer rubber layer or a steel wire ring to
form a flexible body, and realizes an elastic function by filling
the compressibility of air. Commonly known as air springs, rubber
airbags, airbags, etc.
2, assembled by the rubber air spring, the base, the base (piston),
the overall shape of the mat assembled into a sealed cavity.
3, according to the shape is divided into three categories of
capsules, film and sleeves. The sealing structure consists of four
types: pressure self-forming, flange clamping, hoop sealing and
mixing.
4, the load of the air spring shock absorber is mainly carried by
the cord, the curtain layer is mainly composed of 2 layers, and the
special requirements of the product are composed of 4 layers of
cord. The inner glue mainly serves as a sealing function, and in
addition to the sealing effect of the outer rubber, it also plays a
protective role.
