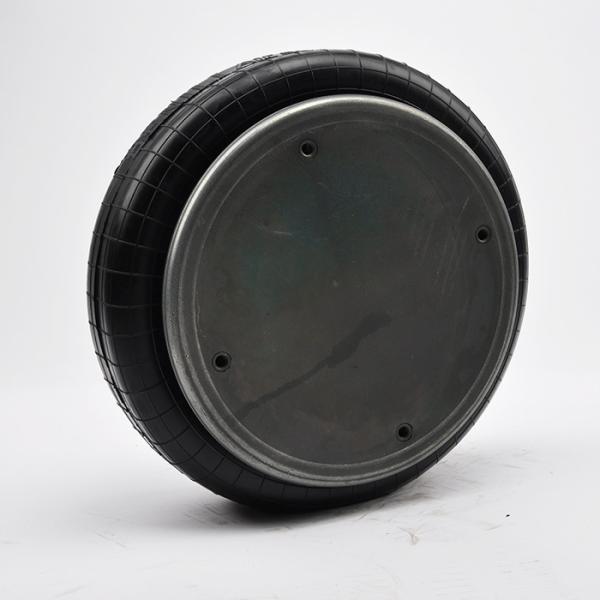

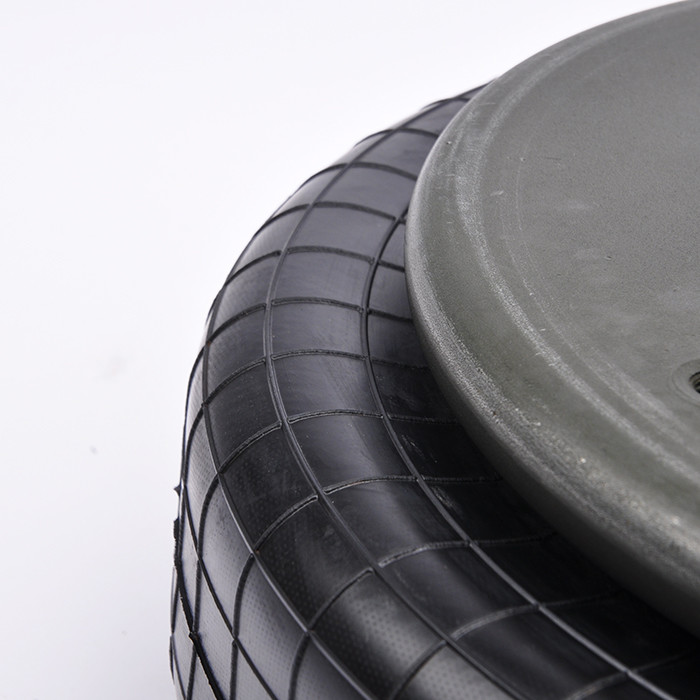

FS 530-14 CI Contitech Single Convolution Air Spring Shocks 1/4 NPT Air Inlet

AIRSUSTECH 1B53014 product description:

The air spring shock absorber AIRSUSTECH 1B53014 refer to FS 530-14 CI Contitech can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1B53014 refer to FS 530-14 CI Contitech to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B53014 refer to FS 530-14 CI Contitech must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1B53014 refer to FS 530-14 CI Contitech, the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1B53014 refer to FS 530-14 CI Contitech shall not be in contact with other parts

AIRSUSTECH 1B5080 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH Part Number: 1B53014

Also known as: 64523,

Contitech Part Number: FS530-14CI1/4NPTOS

Contitech Part Number: FS530-14 CI 1/4NPT OS
Comparable

Firestone Part Number: W013587091,

Firestone Part Number:W01-358-7091,

Firestone Part Number:WO13587091,

Firestone Part Number:WO1-358-7091

Compressed height
2.01"
Maximum expansion height
7.28"
The maximum diameter
15.9"
Maximum inflation pressure
120 psi
Maximum stroke
5.27"
Inlet type
Imperial
Air inlet
1/4"
series
C
lowest temperature
-76°F
Maximum temperature
158°F
Bellows type
Single convolution
weight
13.4 lb

Other kind of air spring:

Also known as: 66897, FS530-14CIG3/4OS
Comparable: W01M586369, W01-M58-6369, WO1M586369, WO1-M58-6369
FS 530-14 CI G 3/4 OS, bellows type industrial air spring, single spiral, effective area 530cm square, maximum stroke 14cm, crimping pressure plate, internal thread, G3 / 4 BSPP, offset
