1B12-300 Goodyear Air Spring Shocks Triangle 6374 4474 For Material Handling Industry Machine

AIRSUSTECH 1B5330 refer to 1B12-300 Goodyear product description:

The air spring shock absorber AIRSUSTECH 1B5330 refer to 1B12-300 Goodyear can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1B5330 refer to 1B12-300 Goodyear to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B5330 refer to 1B12-300 Goodyear must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1B5330 refer to 1B12-300 Goodyear , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1B5330 refer to 1B12-300 Goodyear shall not be in contact with other parts

AIRSUSTECH 1B5330 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH Part Number:1B5330

OEM Original Manufacturer:

Goodyear Part number:1B12-300

Goodyear Part number:1B12 300

Goodyear Part number:1B12300

Top plate hole/stud: 3
Base plate hole/stud: 2
Top plate diameter: 9
Base plate diameter: 9
Folding height: 2.3
Goodyear Flexible member: 578-91-3-301

Goodyear Flexible member: 578 91 3 301

Goodyear Flexible member: 578913301
Piston:-
Piston type: —
Goodyear trim: 1B12300
Firestone: W01-358-7008

Firestone: W01 358 7008

Firestone: W013587008
Neway: 90557226

Goodyear 1B12-313 Cross OEM

Firestone:W01-358-7008 ;
Firestone:W01 358 7008;
Firestone:W013587008
Contitech:FS 330-11 CI 1/4 NPT
Contitech:FS330-11 CI 1/4 NPT
Goodyear :1B12-300,
Goodyear:1B12-313
Goodyear 1B12-300

Continental Air Spring FS 330-11 474
Part Number: 1B12300

AIRSUSTECH 1B5330 Specification and Technical data

Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
Compression height: 2.12
Maximum diameter (maximum diameter) of the rubber bellows: 12.9 inches / 325 mm
Rubber bellows natural diameter 300 mm
Working stroke: maximum 160 mm to minimum 55 mm
Compressed height: 2.12 inches / 105 mm

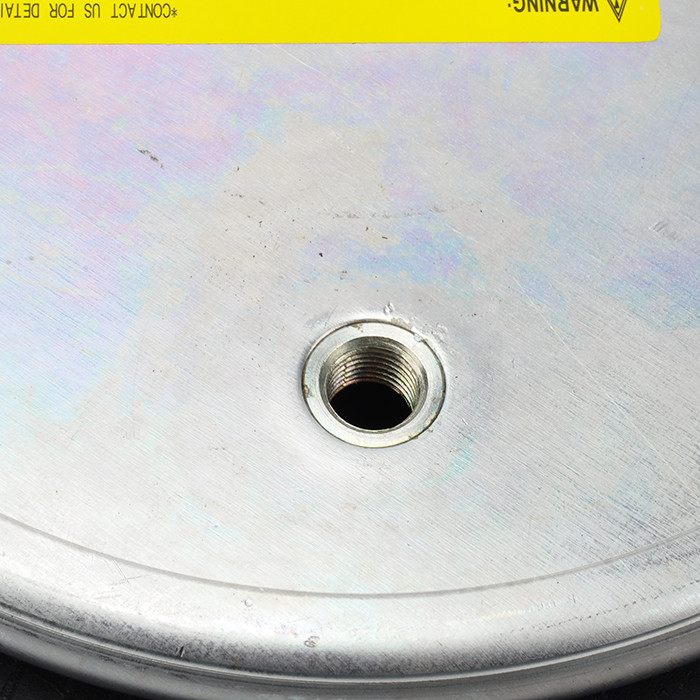

Air hole/air inlet: 1/4 N P.T.F.
Number of Firestone bellows: 19
Top cover diameter: 9.00 inches / 231 mm
Bottom piston number: 3212 or 3183
Diameter of bottom cover: 9.00 inches / 231 mm
Screw center distance: 157.5 mm
The air hole distance between the nuts is 73 mm
Top plate screw (nut) teeth: 2 x 3 / 8-16UNC

Other kinds of goodyear air springs:

"1B5-801 -Metric 2B9-251 R041B5-805 -Metric 2B8-850 -Metric
1B5-810 -Metric 2B9-273 -Metric 1B6-530 2B9-269 -Metric
1B6-531 2B12-344 -Metric 1B6-532 2B9-602 -Metric
1B6-535 2B14-362 1B7-540 2B14-354
1B7-544 2B14-465 -Metric 1B8-550 2B14-383
1B8-560 2B14-481 -Metric 1B9-202 2B14-468 -Metric
1B14-350 2B15-377 1B14-364 2B15-375
1B14-371 -Metric 3B12-320 -Metric 1B14-372 -Metric 3B12-300
1B15-375 3B14-374 2B6-530 3B12-345 -Metric
2B6-535 3B15-375 2B6-833 -Metric 3B14-409 -Metric
2B7-540 2B9-251R04 2B7-840 -Metric 2B8-850 -Metric
2B8-550"
