    W01M586891 Air Spring Actuator 20-2 Firestone Air Bellows 160mm Plate Dia

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B6891
    • Product Details
    • Company Profile

    W01M586891 Air Spring Actuator 20-2 Firestone Air Bellows 160mm Plate Dia

    Air Spring Actuator W01m586891 Firestone Air Suspension Bellows 20-2 for Avoiding Vibration and Punching

    Comparison number of other suppliers:

    Firestone : W01-M58-6891,W01 M58 6891,W01M586891
    Firestone :20-2,20 2
    Flexmember: 578-92-3-206 / 578923206 /578 92 3 206
    Goodyear Trimmed: 2B9252 / 2B9-252 / 2B9 252
    Triangle Spring: 4454
    Firestone: 6944
    Grande: 7639
    Histeer - Link Mfg. :10307
    Conti Tech: 64512
    Suspensions Inc. :200118
    Batco: 10-96944
    UCF / Impex: AB-2B9-252
    T.W. Distribution: AB6944
    Automann: ABSP2B12RA-6944
    Dallas Spring: AS6944
    Midland / Haldex: CS209252
    Euclid / Meritor Aftermarket: E-FS6944
    Conti Tech: FD200-25454
    Euclid / Meritor aftermarket: FS6944
    BWP: M-3559
    Leland: SC2124

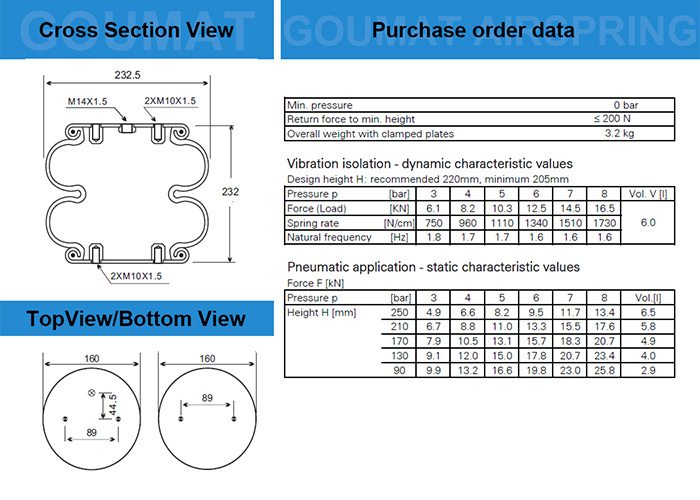

    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.5

    Screw Center Distance of Top Cover Plate : 89 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.5

    Screw Center Distance of Bottom Cover Plate : 89 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : M14X1.5

    Center Distance Between Nut and Air inlet: 44.5 mm


    Cover Plate

    Top Cover Plate Diameter (Width): 160 mm

    Bottom Cover Plate Diameter (Width): 160 mm


    Rubber Bellows

    Rubber Bellows Natural Diameter : 232.5 mm

    Rubber Bellows Natural Height : 232 mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Description:

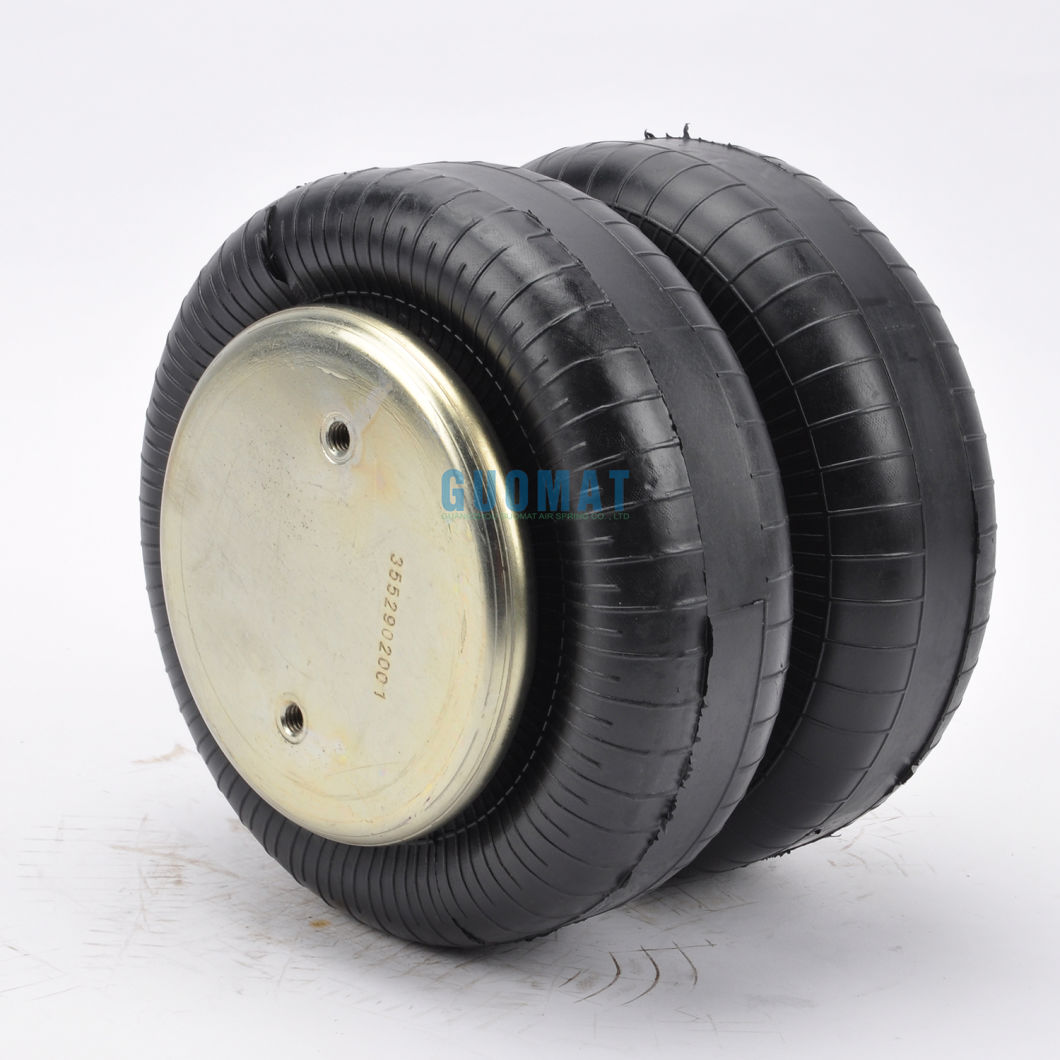

    This is a bellows style GUOMAT air spring. GUOMAT NO. 2B9252 Bellows air springs have two windings in a flexible member. Such double-turn airbags are commonly used in lift springs or axles for trucks and trailers, as pneumatic springs, and as actuators or insulators in industrial and commercial applications. The specifications of the 2B9252 will vary, but the double-curved Goodyear bag has a crimp design and a sleeve bellows. They will provide similar features and functions, but the sleeve type permanently connects the end retainers by clamping the flexible member between the end retainer and the outer crimp ring.


    Specifications:


    Roof hole/stud: 2
    Floor hole / stud: 2
    Roof diameter: 6.4
    Base plate diameter: 6.4
    Collapsed height: 3.8


    Package size and weight:


    Net WeightGross WeightLength
    (cm)
    Width
    (cm)
    Height
    (cm)
    Measurememt
    (cbm)
    3.929.92424240.014

    2 pieces in one carton.


    CONTITECH PART NO.FIRESTONE PAGE PART NO.CONTITECH PART NO.FIRESTONE PAGE PART NO.
    FD 120-17 3/4 M8W01-358-7325FD 412-18 P01W01-R58-4073
    FD 138-18 1/2 M10W01-R58- 4055FD 412-18SWO1-R58- 4044
    FD 138-18SW01-R58 4045FD 614-26 12 M10W01-R58 4064
    FD 200-19 1/4 M8W01-M58-7679FS 138-8W01-R58 4054
    FD 200-19 713W01-358-7795FS 330-11 474W01-358 -7008
    FD 200-19 PO2W01-M58-7756FS 44-10W01-R58-4051
    FD 200-19 P04W01-M58 -7894FS 44-5W01-R58 4050
    FD 200-19SW01-095-0009FS44-15W01-R58-4035
    FD 200-22 1/4 M10W01-M58-7888FT 138-26WO1-R58- 4056
    FD 200-25 1/4 M10W01-M58 -6891FT 210-32 1/2 M10WO1-R58 4059
    FD 200-25 1/4 M8W01-M58-6183FT 330-29 790W01-358 -8042
    FD 210-22 1/2 M10W01-R58-4058FT 412-32 12 M10W01-R58- 4062
    FD 330-22 1/1 M8W01-358-7180FT 412-32 P01W01-R58- 4037
    FD 330-22 318W01-358-7403FT 614-36 1/2 M10W01-R58- 4065
    FD 330-22 M12X1.5 M8W01-M58 -6851
    FD 412-18 1/2 M10W01-R58- 4061
