    FD120-17 Contitech Air Spring 0.8Mpa Double Bellow Air Bag 11305

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B1207
    • Product Details
    • Company Profile

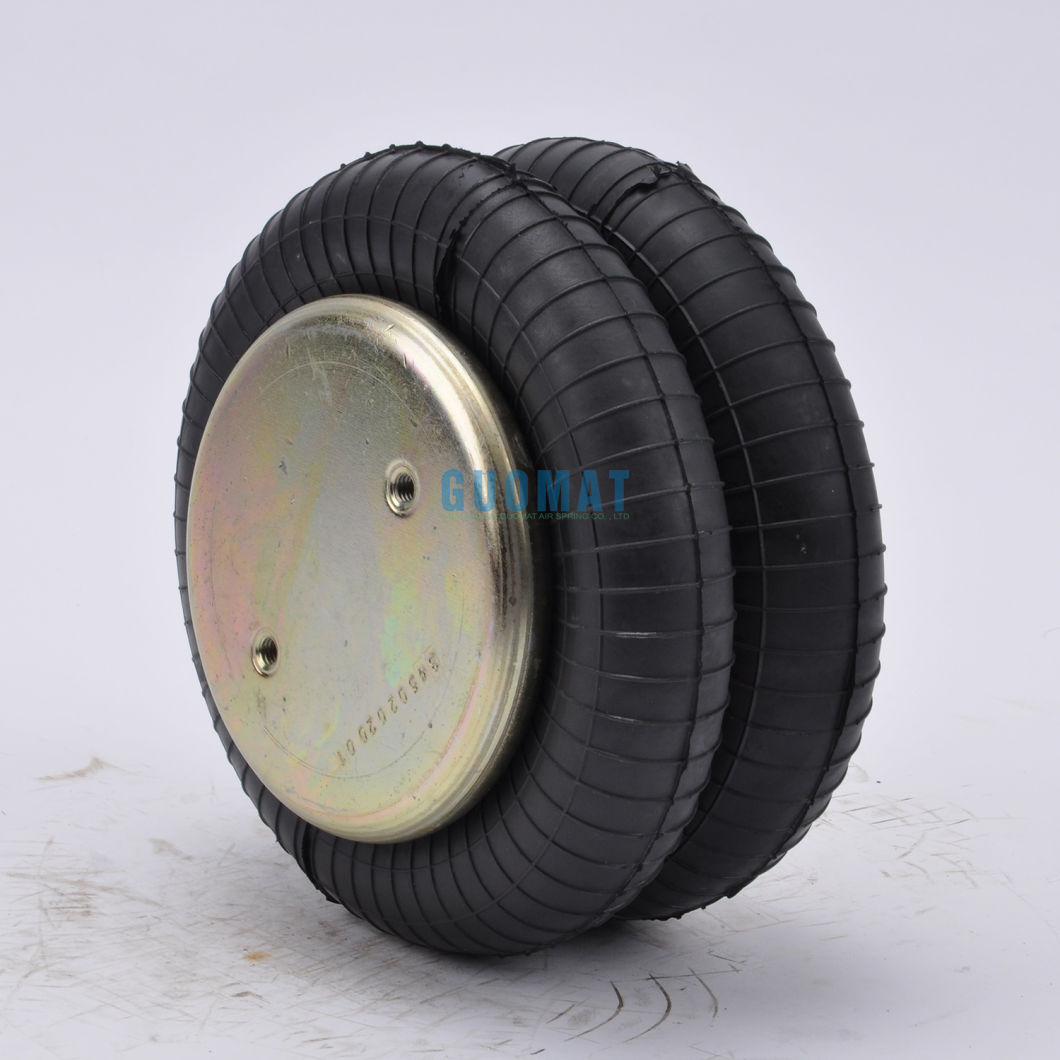

    FD120-17 Contitech Air Spring 0.8Mpa Double Bellow Air Bag 11305

    Air Spring Actuator FD120-17 Contitech Industrial Double Convolutions Airkraft 11305



    Many OEM Original Equipment Manufacturers of FD120-17 :

    BELLOW NO.COMPLETE NO.
    CONTITECH 603 NBOSCH 822419042
    FIRESTONE FLEX 26CONTITECH FD120-17
    FIRESTONE W01 358 01422682 030000
    26DUNLOP (FR) SO 8201
    PHOENIX 2B O7 RFESTO EB-215-155
    AIRKRAFT 114050GOODYEAR 2B 7-540
    NORGREN PM/31082 (8x2)
    T26 84181
    TAURUS KF 218
    WEFORMA WBZ 300-E1
    AIRKRAFT 113053


    Nut / Blind Nut
    Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
    Screw Center Distance of Top Cover Plate : 70 mm
    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
    Screw Center Distance of Bottom Cover Plate : 70mm
    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : G3/4

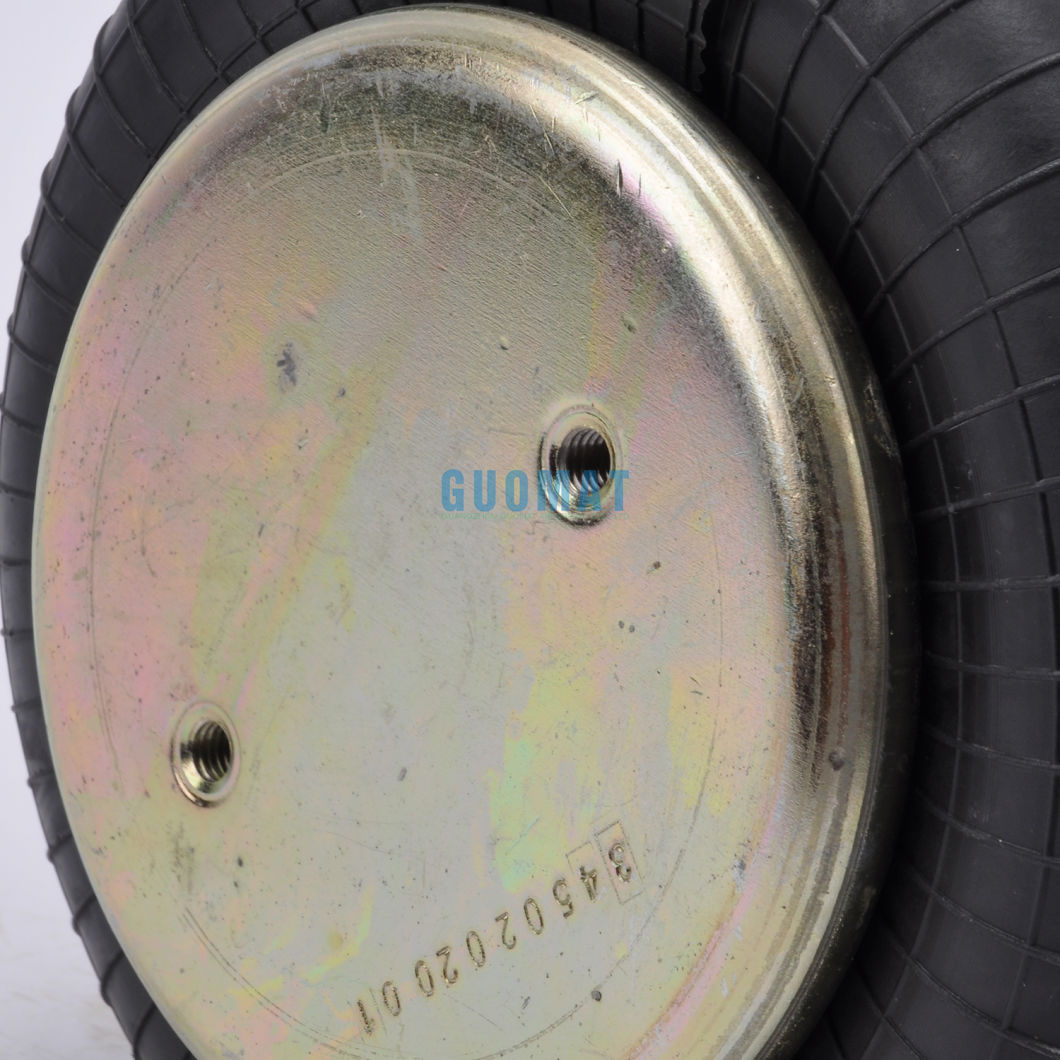

    Cover Plate
    Top Cover Plate Diameter (Width): 135 mm / 5.31 inches
    Bottom Cover Plate Diameter (Width): 135 mm / 5.31 inches
    Top Cover Plate Number: 3450
    Bottom Cover Plate Number: 3436
    Rubber Bellows
    Rubber Bellows Natural Diameter : 189 mm
    Rubber Bellows Natural Height : 177 mm
    Compressed Height: 79 mm / 3.12 inches
    Design Height: 178mm-203mm / 7-8 inches
    Maximum Diameter: 218 mm / 8.6 inches
    Bellows # NO.: 26
    Bumper block / Buffer block
    Without Bumper Block
    Girdle Hoop / Girdle Ring
    With Girdle Hoop :One Pieces of Girdle Hoop


    Detail Technical data at the below photo

    Order No.

    Rubber bellows only

    60221

    with crimped plates, 3/4 NPT air inlet
    0 in. excentrical

    75967


    Vibration isolation - dynamic characteristic values

    Design height H: recommended 7.48 inch, minimum 6.89 inch

    Pressure p [psi]

    40

    60

    80

    100

    120

    Vol. V [in.3]

    Force (Load) [lbf]

    778

    1210

    1640

    2060

    2460

    Spring rate [lbf/in.]

    311

    492

    673

    854

    1040

    232

    Natural frequency [Hz]

    2.1

    2.0

    2.0

    2.0

    2.0





    Pneumatic application - static characteristic values Force F [kN]

    Force F [lbf]

    Pressure p [psi]

    40

    60

    80

    100

    120

    Vol. V [in.3]

    Height H [in.]

    8.0

    681

    1070

    1440

    1820

    2180

    240

    7.0

    885

    1340

    1790

    2260

    2710

    220

    6.0

    1070

    1580

    2110

    2650

    3170

    200

    5.0

    1210

    1790

    2390

    3000

    3570

    170

    4.0

    1330

    1970

    2640

    3310

    3910

    140

    3.0

    1420

    2120

    2840

    3560

    4160

    120



    Static diameter [mm] 203
    Max. diameter [mm] 215
    Required space diameter [mm] 230
    Min. height [mm] 75
    Static height [mm] 150
    Design height [mm] 200
    Max. usable height [mm] 225
    Max. stroke [mm] 150
    Force to compress to Hmin at 0 bar [N] 90
    Weight [kg] 2,32


    Fd120-17 Contitech Industrial Air Springs Double Convolution Air Actuator Airkraft 113053/ 2b-181
    Fd120-17 Contitech Industrial Air Springs Double Convolution Air Actuator Airkraft 113053/ 2b-181Fd120-17 Contitech Industrial Air Springs Double Convolution Air Actuator Airkraft 113053/ 2b-181
