    Triple Convoluted Goodyear Air Spring Actuator 3B12-304 W01-358-8013

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Price : 10-49 Pieces / US $99 | 50-99 Pieces / US $89 | 100+ Pieces / US $85
    Brand Name : Goodyear
    Certification : ISO/TS16949:2009
    Delivery Time : 3-8 Working Days
    Model Number : 3B12-304
    • Product Details
    • Company Profile

    Triple Convoluted Goodyear Air Spring Actuator 3B12-304 W01-358-8013

    3B12-304 Goodyear Air Spring Replaces Contitenal W01-358-8013 Air Spring Triple Convoluted

    3B12-304 Goodyear Technical Parameters

    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
    Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
    Screw Center Distance of Top Cover Plate : 157.5mm
    Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
    Screw Center Distance of Bottom Cover Plate : 157.5mm

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

    Cover Plate
    Top Cover Plate Diameter: 231 mm
    Bottom Cover Plate Diameter: 231 mm

    Rubber Bellows
    Rubber Bellows MAX Diameter: 330 mm
    Rubber Bellows Natural Diameter :300 mm
    The Working Stroke : MAX 460 mm to MIN 130 mm
    Maximum Height : 460 mm
    Minimum Height :130 mm
    Compression Height : 330 mm

    Bumper block / Buffer block
    Without Bumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :Two Pieces of Girdle Hoop


    Bellows type industrial air spring, triple rotation,
    Effective area 330 square centimeters
    29 cm maximum stroke,
    Crimped bead plate
    internal thread,
    1/4 NPT, offset
    Manufacturer: Goodyear
    Compressed height
    4.33"
    Maximum expansion height
    16.9"
    The maximum diameter
    12.8"
    Maximum inflation pressure
    120 psi
    Maximum stroke
    12.57"
    Air inlet type
    English
    Air inlet
    1/4"
    series
    C
    lowest temperature
    -76°F
    Maximum temperature
    158°F
    Bellows type
    Triple convolution
    Weight: 13 pounds

    3B12-304 Goodyear Cross others OEM

    BELLOW NumbersCOMPLETE NO.COMPLETE Numbers
    AIRKRAFT 116008AIRKRAFT 115033AIRKRAFT 115027
    FIRESTONE FLEX 38R/38DCONTITECH FT 330-29 773CONTITECH FT 330-29 430
    FIRESTONE 095.0047FIRESTONE W01-358-8013FT 330-29 498
    GOODYEAR FLEX 556 3 3 8334GOODYEAR 3B12-305FT 330-29 503
    578 93 3 100AIRKRAFT 115035FT 330-29 702
    CONTITECH FT 330-29 432FIRESTONE W01 358 8006
    FIRESTONE W01-358-8010W01 358 8030
    GOODYEAR 3B12-301GOODYEAR 3B12-304


    AIRSUSTECH PART NO.GOODYEAR PART NO.FIRESTONE PART NO.
    2B77952B10-226 ,W01-358-7795
    2B40582B10-2350W01-R58-4058
    2B40382B12-2450W01-R58-4038
    2B40612B12-2452W01-R58-4061
    2B40732B12-2457W01-R58-4073
    2B74032B12-307W01-358-7403
    2B74002B12-309W01-358-7400
    2B71802B12-425W01-358-7180
    2B40882B12-425/300W01-R58-4088
    2B71352B14-360W01-358-7135
    2B75012B14-465 .W01-M58-7501
    2B40552B8-2150W01-R58-4055
    2B73252B8-2152W01-358-7325
    2B78942B9-2250W01-M58-7894
    2B77562B9-234W01-M58-7756
    3B40623B12-2452W01-R58-4062
    3B80193B12-309W01-358-8019
    3B80423B12-322W01-358- 8042
    3B40643B14-2650W01-R58-4064
    3B78083B14-354W01-358-7808

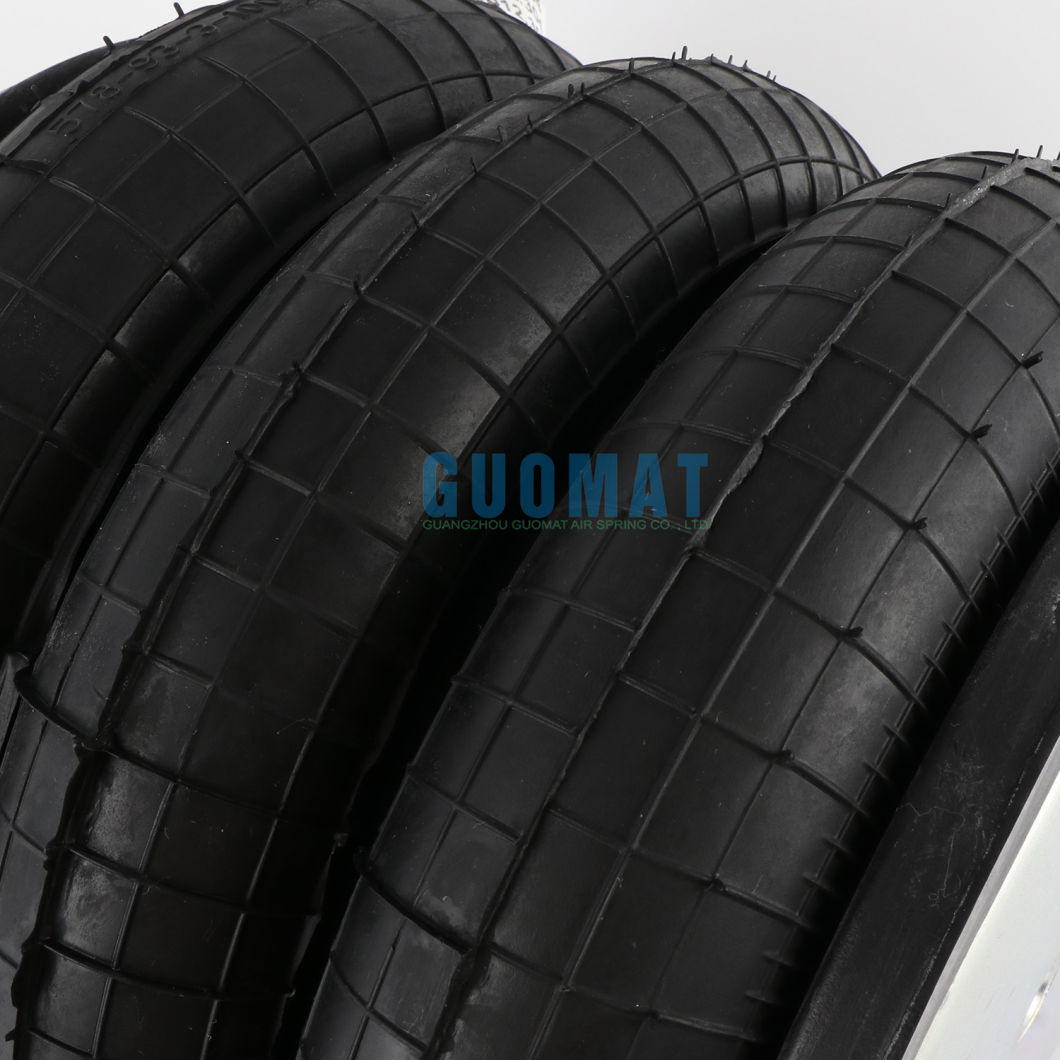

    Details pictures of 3b12-304 Goodyear Air Spring:


    Auto Parts 3b12-304 Goodyear Air Spring Cross W01-358-8013 Air Spring Triple Convoluted Air Bag FT330-29 Ci 1/4 NPT 3b12-306
    Auto Parts 3b12-304 Goodyear Air Spring Cross W01-358-8013 Air Spring Triple Convoluted Air Bag FT330-29 Ci 1/4 NPT 3b12-306
    Auto Parts 3b12-304 Goodyear Air Spring Cross W01-358-8013 Air Spring Triple Convoluted Air Bag FT330-29 Ci 1/4 NPT 3b12-306
    Auto Parts 3b12-304 Goodyear Air Spring Cross W01-358-8013 Air Spring Triple Convoluted Air Bag FT330-29 Ci 1/4 NPT 3b12-306
    Bulk product pictures of 3b12-304 Goodyear Air Spring:
    Auto Parts 3b12-304 Goodyear Air Spring Cross W01-358-8013 Air Spring Triple Convoluted Air Bag FT330-29 Ci 1/4 NPT 3b12-306
    FAQ


    Hong long is the GUOMAT warranty on air suspension parts?

    GUOMAT offers one year warranty for all the air springs and air suspension parts all over the world. Within the warranty period, we will either replace or repair the part. But improper use or installation is not a manufacturer's responsibility .GUOMAT is so confident you will be 100% satisfied with products that it offers you a 30-Day Money Back Guarantee and a 90-Day Return Policy on unused and uninstalled products.

    How long does it take to receive my order?

    GUOMAT ships may take 2-8 work days, depending on what items are ordered and Whether the parts have in stock or not. We always deliver the air spring by DHL, UPS,FEDEX and TNT .They are all can very quickly to deliver the package to you.

    Is it possible to return a part if I do not want it?

    Yes, of course .You can return a part as long as it is less than 30 days from the date of purchase or within 90 days for unused and uninstalled products.
