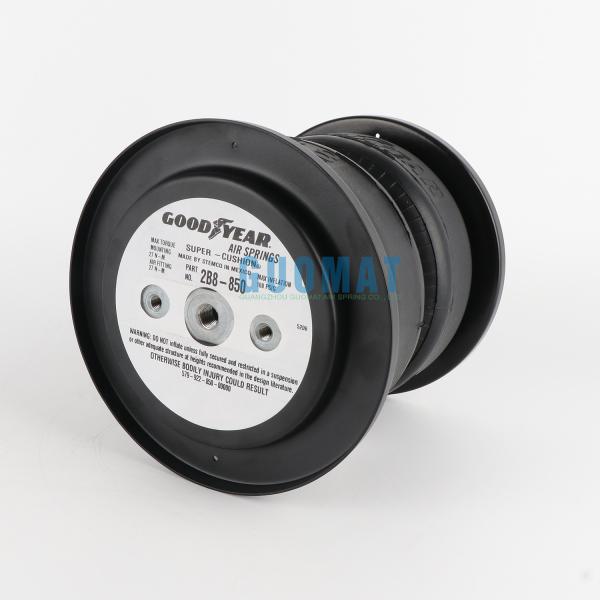

    2B8-850 Caravan Airbag Suspension Goodyear Flexmember 579-923-530

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : Goodyear
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B8-850
    • Product Details
    • Company Profile

    2B8-850 Caravan Airbag Suspension Goodyear Flexmember 579-923-530

    Air Spring Original Goodyear 2B8-850 Double Layer Flexmember 2b8 579-923-530


    OEM Original Manufacturer:

    Goodyear Original: 2B8-850

    in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers.

    2B8-850 Goodyear Cross OEM

    Goodyear Part Number: 2B8-850;
    Goodyear Part Number: 2B8 850;
    Goodyear Part Number: 2B8850

    Goodyear Flexmember Part Number: 579-923-530
    Goodyear Flexmember Part Number: 579 923 530
    Goodyear Flexmember Part Number: 57992-530

    Firestone Part Number:W01-M58-6353

    Firestone Part Number:W01 M58 6353

    Firestone Part Number:W01M586353

    ContiTech Part Number:FD 120-20 CI G 1/4
    ContiTech Part Number:FD120-20 CI G 1/4

    2B8-850 STEMCO STEMCO Goodyear Air Spring 579-923-530
    W01-M58-6353 Firestone Metric Double Swivel Air Spring
    Flint Airmount / Airstroke Actuator WO1-M58-6353, Metric 8 x 1.25 Dark Nut, 1/4 BSP
    W01-M58-6353, W01M586353, WO1-M58-6353, WO1M586353
    W01-M58-6387 W01-M58-6988

    2B8-850 stroke actuator


    Goodyear 2B8-850 parameter:


    Maximum Diameter @ 7 Bar (mm)Goodyear 2B8-850 ISOLATOR
    218Design Height (mm)
    Maximum Height (mm)203
    76Load (at Design Height) at: 3 Bar (kN)
    Maximum Stroke (mm)3.8
    145Load (at Design Height) at: 5 Bar (kN)
    Minimum Usable Height (mm)6.6
    221Load (at Design Height) at: 7 Bar (kN)
    Force in kN @ 5 Bar at Stroke of 25 mm9.4
    10.9Natural Frequency (@5 Bar)(fn(Hz)
    Force in kN @ 5 Bar at Stroke of 50% of Max Stroke1.9
    9.1% of Isolation at Forced Frequency 7 Hz
    Force in kN @ 5 Bar at Stroke of Maximum Stroke92.1
    5.7% of Isolation at Forced Frequency 13 Hz
    Material98.2
    2-Ply Standard Cord% of Isolation at Forced Frequency 25 Hz
    END CLOSURE DETAILS99.5
    Bead plate TypeDim. A (Blind Nut Centers) (mm)
    170

    Maximum diameter at 7 Bar (mm) 218
    Maximum height (mm) 76
    Maximum stroke (mm) 145
    Minimum usable height (mm) 221
    The force at a stroke of 25 mm at a pressure of 5 bar is 10.9kN
    The force at 50% of the maximum stroke under 5 bar pressure is 9.1kN
    The force at the maximum stroke at 5 bar pressure is 5.7kN
    Material 2-layer standard wire
    End details
    Bead plate type 1
    Center spacing of threaded holes (mm) 70

    2B8-850 vibration isolator
    Design height (mm) 203
    Load capacity (at design height) under 3 bar pressure (kN) 3.8
    Load capacity (at design height) under 5 bar pressure (kN) 6.6
    Load capacity (at design height) under 7 bar pressure (kN) 9.4
    Natural frequency (@ 5 Bar) (Hz) 1.9
    Isolation percentage (%) at 7 Hz frequency 92.1
    Isolation percentage (%) at 13 Hz frequency 98.2
    Isolation percentage under 25 Hz frequency (%) 99.5


    579922562000945799225620009420811617YC 2B8-550C 2B8-550
    579922740000005799227400000020095599Y2B7-7402B7-740
    579922830000195799228300001920106784YENIDINE YI-2B6-830ENIDINE YI-2B6-830
    579922833000002B6-83320095600N2B6-8332B6-833
    579922833000195799228330001920095601YENIDINE YI-2B6-833 METRICENIDINE YI-2B6-833 METRIC
    579922835000195799228350001920257581YENIDINE YI-2B6-835ENIDINE YI-2B6-835
    579922839000005799228390000020054211Y2B6-839 M2B6-839 M
    579922840000042B7-84020316800N2B7-8402B7-840
    579922840000195799228400001920117075YENIDINE YI-2B7-840ENIDINE YI-2B7-840
    579922841000905799228410009020811618YC 2B6-839 MC 2B6-839 M
    579922842000005799228420000020069561YKUHN 2B7-842 MKUHN 2B7-842 M
    579922843000002B7-84320588389N2B7-843 M2B7-843 M
    579922850000002B8-85020095602N2B8-850 METRIC2B8-850 METRIC
    579922850000195799228500001920095603YENIDINE YI-2B8-850ENIDINE YI-2B8-850
    579922853000005799228530000020221915YKUHN 2B8-853 (METRIC)KUHN 2B8-853 (METRIC)
    579922854000002B8-85420054212N2B8-854 M2B8-854 M
    579922856000905799228560009020806001YC 2B8-854C 2B8-854
    579923511000005799235110000020109236Y2B6-REG AIR LIFT G5814 FLEXMEMBER2B6-REG AIR LIFT G5814 FLEXMEMBER
    579923515000115799235150001120295315Y2B6-EXT ARNOTT FLEXMEMBER2B6-EXT ARNOTT FLEXMEMBER
    579923516000005799235160000020095608Y2B6 EXT SLEEVE G5813 AIR LIFT2B6 EXT SLEEVE G5813 AIR LIFT
    579923518000005799235180000020177365Y2B6-EXT AIR LIFT 5817 FLEXMEMBER2B6-EXT AIR LIFT 5817 FLEXMEMBER
    579923520000005799235200000020109238Y2B7 AIR LIFT MSB FLEXMEMBER2B7 AIR LIFT MSB FLEXMEMBER
    579923522000005799235220000020168398Y2B7-REG AIR LIFT 5815 FLEXMEMBER2B7-REG AIR LIFT 5815 FLEXMEMBER
    579923523000005799235230000020177366Y2B7-REG AIR LIFT 5818 FLEXMEMBER2B7-REG AIR LIFT 5818 FLEXMEMBER
    579923532000005799235320000020439364Y2B8 SLD GRDL RNG - FOR COSTING2B8 SLD GRDL RNG - FOR COSTING
    579995716000005799957160000020054214YKUHN TOOLINGKUHN TOOLING

    Air Spring Goodyear Original 2b8-850 Double Layer Goodyear Flexmember 2b8 579-923-530
    Air Spring Goodyear Original 2b8-850 Double Layer Goodyear Flexmember 2b8 579-923-530
    Air Spring Goodyear Original 2b8-850 Double Layer Goodyear Flexmember 2b8 579-923-530
